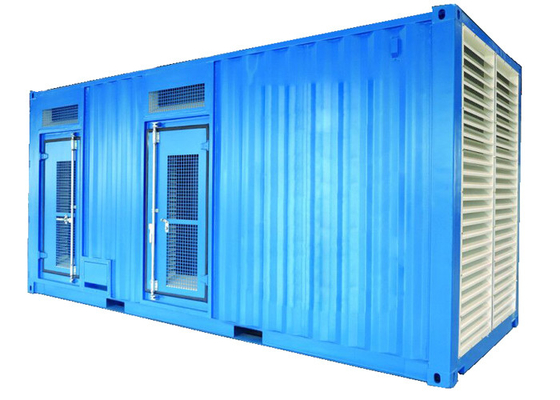

Container Generator Set 800KW 1000KVA With Stamford / Meecalt Alternator Mining Use

1 SET
MOQ
Negotiation
Price
Container Generator Set 800KW 1000KVA With Stamford / Meecalt Alternator Mining Use
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 1000KVA /800KW
Frequency: 50HZ
Voltage: 220/400V 230/430 240/415 Optional
Engine: Cummins
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
Controller: Deepsea 6020/7320
MCCB: ABB Or Delixi
Cooling System: Water Cooled
Noisel Level: 85dB At 7 Meters
ATS: Optional
High Light:

cummins power generator

,

cummins diesel genset

Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: GPRO
Certification: ISO,CE , CO, FORM E Certification
Model Number: GP1100CCS
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 25 working days
Payment Terms: L/C, T/T
Supply Ability: 500 Set / Month
Product Description

Container Generator Set 800KW 1000KVA With Stamford / Meecalt Alternator Mining Use



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP1100CCS
1.2 Prime at 50HZ, 40℃ ambient 800KW 1000KVA
1.3 Standby at 50HZ, 40℃ ambient 880KW 1100KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 6050×2435×2585
1.7 Weight 9400kg
1.8 Fuel consumption 100% prime load 220l/hr
1.9 Noise Level at 7 (Normal/Super) 85dB
1.10 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set
1.11 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model KTA38-G5
2.3 Governor/Class Electronic
2.4 Cylinder NO. 8
2.5 Engine build Vertical in-line
2.6 Fuel spray pattern direct injection
2.7 Aspiration Turbocharged
2.8 Cooling mode Radiator cooled (enclose water)
2.9 Bore and stroke 160 x 190 mm
2.10 Compression ratio 13.6:1
2.11 Displacement 30.561 litres
2.12 Engine Prime Power at 1500rpm 861KWm
2.13 Engine Standby Power at 1500rpm 947KWm
2.14 Start-up mode 24V, electric
2.15 Battery capacity 2 x 12 volts x 178 Ah
2.16 Starting/Min temperature /
2.17 Lubricating oil consumption Lubricating oil consumption less than 10% Fuel consumption
2.18 Lubrication oil capacity 153litres
2.19 Coolant capacity – radiator and engine (40℃) 149 litres
2.20 Exhaust temp – full load prime 438°C
2.21 Exhaust gas flow – full load prime 200m³/min
2.22 Exhaust gas back pressure max 3,0 kPa
2.23 Air flow – radiator (40℃ ambient) /
2.24 Pusher fan head (duct allowance) 40℃ /
2.25 Air intake – engine– full load prime 75m³/min
2.26 Standard Air intake temp 25℃
2.27 Fuel type #0 Diesel (Natural temperature)
2.28 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.29 Exhaust system Adopt industrial high efficiency silencer and flexible bellows
2.30 Engine derating – altitude /
2.31 Engine derating – temperature /
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model STAMFORD / LVI634E
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 1443.4A
3.12 Efficiency 0.942
3.13 Insulation class H
3.14 Protection class IP21
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 2260Kg

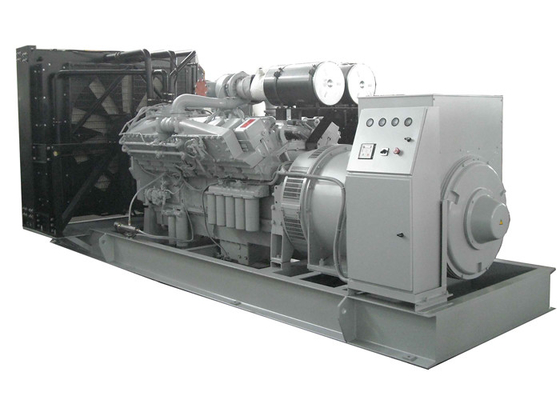

Container Generator Set 800KW 1000KVA With Stamford / Meecalt Alternator Mining Use 0

There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.



ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

Standard Supply Scope:


Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card



Optional supply scope:


1.ATS

2. SynchronizationSystem

3. External daily fuel tank

4. Silent Canopy

5. Trailer

6. Auto Fuel Pump

7. Fuel and Water Separator

8. Lub Oil Heater

9. Coolant Heater

10. Fuel Drain Pump



Advantages:



. We are a powerful and unity sales team:

. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.



If have any questions, please contact us. Your inquiry would be appreciated.

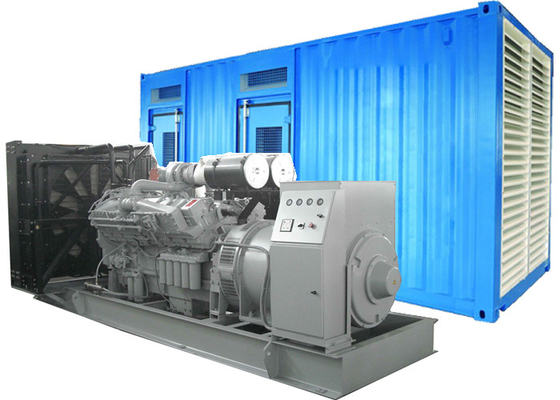

Container Generator Set 800KW 1000KVA With Stamford / Meecalt Alternator Mining Use 1
