8kw Water Cooled Electric Silent Generator Set 10kva With Diesel Engine , 50/60HZ Frequency

1 SET
MOQ
Negotiation
Price
8kw Water Cooled Electric Silent Generator Set 10kva With Diesel Engine , 50/60HZ Frequency
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 8KW 10KVA
Frequency: 50/60HZ
Voltage: 220v - 690v Optional
Engine: Yangdong
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
Controller: Deepsea, Smartgen, Harsen For Optional
MCCB: ABB Or Delixi
Cooling System: Water Cooled
Genset Type: Open Type, Silent Type, Container Type, Trailer Type For Optional
ATS: Optional
High Light:

power generating set

,

industrial generators

Basic Infomation
Place of Origin: Jiangsu of China
Brand Name: GPRO
Certification: ISO,CE Certification
Model Number: GP10Y
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Product Description

8kw Water Cooled Electric Silent Generator Set 10kva With Diesel Engine , 50/60HZ Frequency



Technical Specifications:

Genset Prime Power (kw/kva) 8 / 10
Voltage Recovery Time ≤1S
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 12V 100Ah
Soundproof Type- Dimension (L*W*H) (mm) 1800*750*1120
Soundproof Type-Weight (kg) 1080
Engine Engine brand/model  Yangdong/ YD380D
Output Power (kw) 13
Cylinder No. & Config. 3, in-line
Combustion System Indirect injection
Engine Speed (r/min) 1500
Speed Governing Mechanical
Starting System 12V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Alternator Alternator brand Stamford, Mecc-alte,Faraday…
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%~105%
Protection Grade IP23

Heavy duty world class brand  industrial diesel engine:

a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards

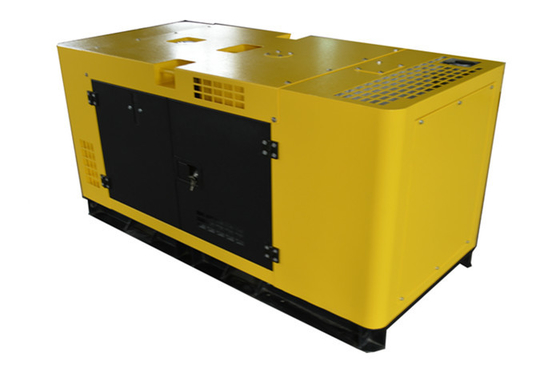

8kw Water Cooled Electric Silent Generator Set 10kva With Diesel Engine , 50/60HZ Frequency 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional.

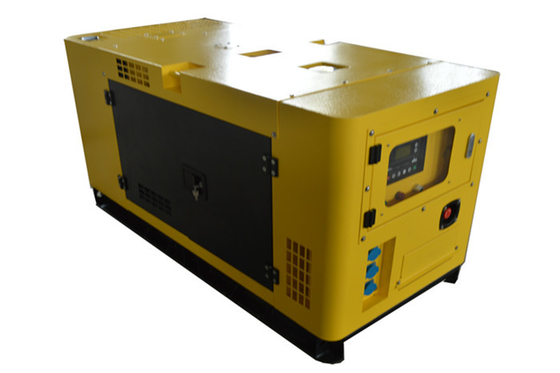

8kw Water Cooled Electric Silent Generator Set 10kva With Diesel Engine , 50/60HZ Frequency 1



 Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours

. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
. Spare-parts can also be sent by air express.


If have any questions, please contact us. Your inquiry would be appreciated.
