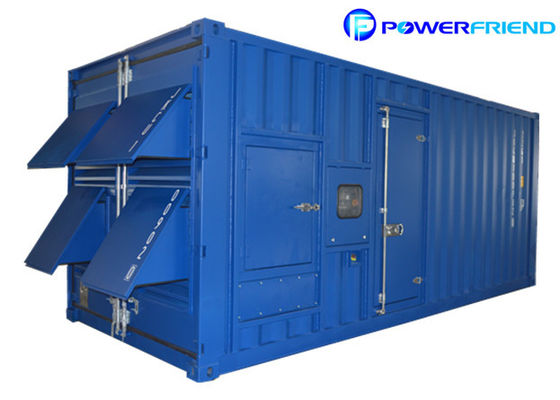

Heavy Duty Cummins Generator Set 800kw 1000kVA Container Type , Leroy Somer Alternator

1 SET
MOQ
Negotiation
Price
Heavy Duty Cummins Generator Set 800kw 1000kVA Container Type , Leroy Somer Alternator
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 1000KVA /800KW
Frequency: 50HZ
Voltage: 220/400V 230/430 240/415 Optional
Engine: Cummins
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
Controller: Deepsea 7320
MCCB: ABB Or Delixi
Cooling System: Water Cooled
Noisel Level: 85dB At 7 Meters
ATS: Optional
High Light:

cummins diesel genset

,

emergency diesel generator

Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: GPRO
Certification: ISO,CE , CO, FORM E Certification
Model Number: GP1100CCS
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 25 working days
Payment Terms: L/C, T/T
Supply Ability: 500 Set / Month
Product Description

Heavy Duty Cummins Generator Set 800kw 1000kVA Container Type , Leroy Somer Alternator



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP1100CCS
1.2 Prime at 50HZ, 40℃ ambient 800KW 1000KVA
1.3 Standby at 50HZ, 40℃ ambient 880KW 1100KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 6050×2435×2585
1.7 Weight 9400kg
1.8 Fuel consumption 100% prime load 220l/hr
1.9 Noise Level at 7 (Normal/Super) 85dB
1.10 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set
1.11 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand  Cummins
2.2 Engine Model KTA38-G5
2.3 Governor/Class Electronic
2.4 Cylinder NO. 8
2.5 Engine build Vertical in-line
2.6 Fuel spray pattern direct injection
2.7 Aspiration Turbocharged
2.8 Cooling mode Radiator cooled (enclose water)
2.9 Bore and stroke 160 x 190 mm
2.10 Compression ratio 13.6:1
2.11 Displacement 30.561 litres
2.12 Engine Prime Power at 1500rpm 861KWm
2.13 Engine Standby Power at 1500rpm 947KWm
2.14 Start-up mode 24V, electric
2.15 Battery capacity 2 x 12 volts x 178 Ah
2.16 Starting/Min temperature /
2.17 Lubricating oil consumption Lubricating oil consumption less than 10% Fuel consumption
2.18 Lubrication oil capacity 153litres
2.19 Coolant capacity – radiator and engine (40℃) 149 litres
2.20 Exhaust temp – full load prime 438°C
2.21 Exhaust gas flow – full load prime 200m³/min
2.22 Exhaust gas back pressure max 3,0 kPa
2.23 Air flow – radiator (40℃ ambient) /
2.24 Pusher fan head (duct allowance) 40℃ /
2.25 Air intake – engine– full load prime 75m³/min
2.26 Standard Air intake temp 25℃
2.27 Fuel type #0 Diesel (Natural temperature)
2.28 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.29 Exhaust system Adopt industrial high efficiency silencer and flexible bellows
2.30 Engine derating – altitude /
2.31 Engine derating – temperature /
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model STAMFORD / LVI634E
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 1443.4A
3.12 Efficiency 0.942
3.13 Insulation class H
3.14 Protection class IP21
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 2260Kg




Heavy Duty Cummins Generator Set 800kw 1000kVA Container Type , Leroy Somer Alternator 0

Description:



1. Diesel Cummins engine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF.

4. Options: remote controller, synchronizing.

5. ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

6. Type: Silent type, weather proof, Trailer type

Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:



1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original FAW engine , good quality , good price.



Company Details:



Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:

1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.



If have any questions, please contact us. Your inquiry would be appreciated.
