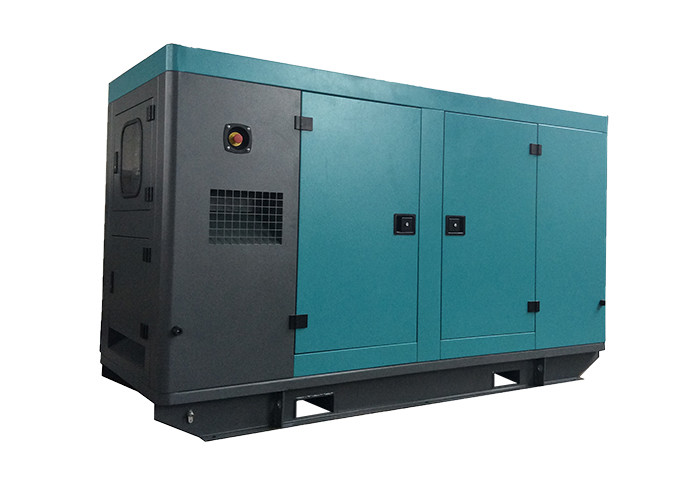

4 Cylinder Silent Running Generators , 50HZ Standby Power Diesel Generator Set

1 sets
MOQ
negotiation
Price
4 Cylinder Silent Running Generators , 50HZ Standby Power Diesel Generator Set
Features Gallery Product Description Request A Quote
Features
Specifications
Cooling System: Water Cooled
Fuel Tank: 8 Hours Running
Speed Govern: Electronic
Speed: 1500rpm/1800rpm
Conditions Of Use: Land Use
ATS: Optional
High Light:

power generating set

,

silent diesel generators

Basic Infomation
Place of Origin: China, Wuxi
Brand Name: GPRO
Certification: CE, ISO
Model Number: GP33YS
Payment & Shipping Terms
Packaging Details: ply wooden case, plastic
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 400 sets
Product Description

4 cylinder 4100D engine diesel generator 50HZ/60HZ standby power 33kva generating



Model GP33YS
Rated output(KW) 24kw/30kva
Max.output(KVA) 26kw/33kva
Frequency(HZ) 50
Rated voltage(V) 230/400
Rated current(A) 54.1
Engine Model Y4100D
Cylinder number 6
bore*stroke(mm) 100*115
Fuel consumption(g/kw.h)at full load 230
Compression ratio 19:01
Starting system Electric starter
Rated Rotation Speed(rpm) 1500
Power factor Cos% 0.8
Insulation grade H
Excitation mode self-excitation and cinstant voltage(AVR)
Diamension(L*W*H) 2190*1050*1340
net weight(KG) 1000



4 Cylinder Silent Running Generators , 50HZ Standby Power Diesel Generator Set 0

Generator soundproof/silent and canopy

1) Excellent ventilation

2) Black finish stainless steel locks and hinges

3) Zinc plated or stainless steel fasteners

4) Body made from steel components treated with polyester powder coating

5) Two large doors on either side

6) Radiator fill access plate

7) Fully guarded cooling fan and battery charging alternator

8) Fuel fill and battery access via lockable access doors

9) Emergency stop button on canopy exterior

10) Lube oil drain and radiator drain to exterior

11) Control panel viewing window

12) Lifting points on base frame

4 Cylinder Silent Running Generators , 50HZ Standby Power Diesel Generator Set 1



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.



4 Cylinder Silent Running Generators , 50HZ Standby Power Diesel Generator Set 2
