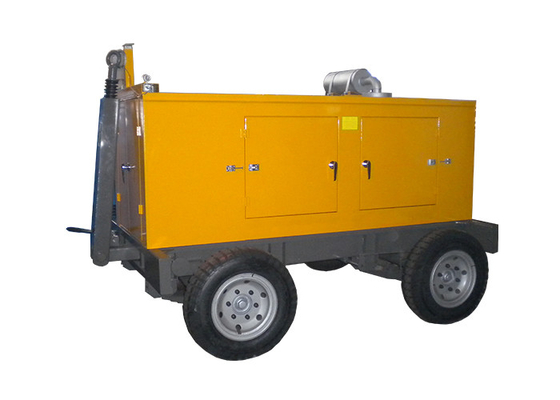

50kw trailer generator Portable Silent type Diesel Genset with wheels
| Genset | Power Capacity | Prime Power | 50kw/63kva |
| Standby Power | 55kw / 69kw | ||
| Rated Voltage | Volt | 380/220V | |
| Rated Current | Amp | 92 | |
| Rated Frequency | Hz | 50 | |
| Rated Speed | RPM | 1500 | |
| Power Factor / Phase | Cos 0.8 Lagging, 3 phase | ||
| Cooling System | Closed cycle water-cooled with fan, water tank | ||
| Overall Dimension (open type) |
(L×W×H)mm | 1950*750*1300 | |
| Gross Weight | kg | 800 | |
| Overall Dimension (soundproof) | (L×W×H)mm | 2200*1000*1500 | |
| Gross Weight | kg | 1400 | |
| Diesel Engine |
Engine Brand | powered by cummins engine | |
| Engine Model No. | 6BT5.9-G2 | ||
| Rated Power | kw | 60 | |
| Engine Structure | 6 cylinders vertical in-line,4 stroke,Turbocharged, direct injection. |
||
| Speed Governor |
Mechanical |
||
| Compression Ratio | 15.1:1 | ||
| Displacement | litre | 4.75 | |
| Lube Capacity | litre | 130 | |
| Fuel System | PT type fuel injection pump | ||
| Fuel Consumption | L/H | 12.1 | |
| Lube Consumption | g/kw.h | 0.5% | |
| Rotating Speed | RPM | 1500 | |
| Starting Mode | By 24V batteries | ||
| Alternator | Alternator Brand | Stamford | |
| Alternator Model | UCI 224E | ||
| Features | Brushless, self-excitation, AVR regulation, IP21 protection grade |
||
| Insulation Class | Class H | ||
| Steady Voltage Regulation | ≤±1% | ||
| Instant Voltage Ragulation | -15%~+20% | ||
| Voltage Regulation Scope | >10% | ||
| Power Factor | 0.8 Lagging | ||
| Connection Type | 3 phase 4 wire, Y type | ||
| Controller | Model No. | Smartgen | |
Cummins / Stamford Genset Features:
1. Engine: Cummins industrial diesel engine
2. Heat Dissipation: Radiator 40°C max, fans are driven by belt, with safe guard
3. Protective Operation: Choice of manual/auto and AMF control panels and protection systems
4. Control Panel: Digital auto-start LED panel
5. Shakeproof: Anti Vibration Suspension Absorber
6. Safe Filter: Dry type air filter, fuel filter, oil filter
7. Breaker: Mould case circuit breaker
8. Power: 24V DC start motor and storage battery
9. Nozzle: Ripple flex exhaust pipe, exhaust siphon, flange, and muffler

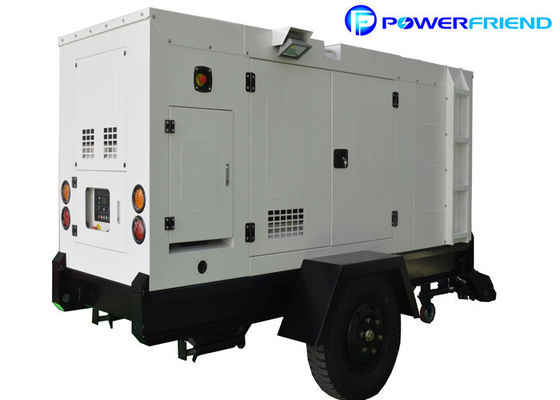

Generator mounted on High quality trailers(with two wheels or four wheels
