Richardo Water Cooled Kofo Silent Generator Set 8 Hours Running Fuel Tank
Genset Model:
| Genset Model | KOFO ENGINE MODEL | ALTERNATOR MODEL | PRIME POWER | STANDBY POWER | ||
| KW | KVA | KW | KVA | |||
| GP14KFS | Y480BD | G164D | 10 | 12.5 | 11 | 13.75 |
| GP17KFS | Y485BD | G184E | 12 | 15 | 13.2 | 16.5 |
| GP28KFS | N4100DS-26 | G184F | 20 | 25 | 22 | 27.5 |
| GP33KFS | N4100DS-30 | G184G | 24 | 30 | 26.4 | 33 |
| GP41KFS | N4105DS-38 | G184H | 30 | 37.5 | 33 | 41.25 |
| GP69KFS | N4105ZDS | G224E | 50 | 62.5 | 55 | 68.75 |
| GP83KFS | N4105ZLDS | G224F | 60 | 75 | 66 | 82.5 |
| GP96KFS | R6105ZDS | G224G | 70 | 87.5 | 77 | 96.25 |
| GP124KFS | R6105ZLDS | G274D | 90 | 112.5 | 99 | 123.75 |
| GP138KFS | R6105AZLDS | G274ES | 100 | 125 | 110 | 137.5 |
| GP165KFS | R6105BZLDS | G274E | 120 | 150 | 132 | 165 |
| GP207KFS | R6110ZLDS | G274G | 150 | 187.5 | 165 | 206.25 |
| GP275KFS | 6126A-260D | G274K | 200 | 250 | 220 | 275 |
| GP344KFS | WT12D-308 | G444E | 250 | 312.5 | 275 | 343.75 |

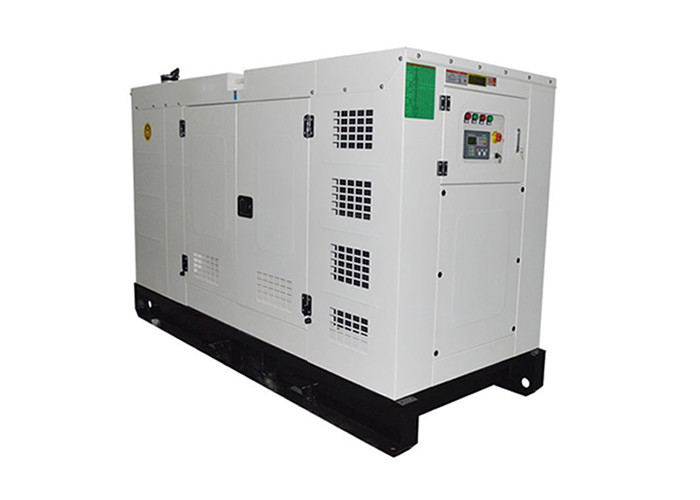

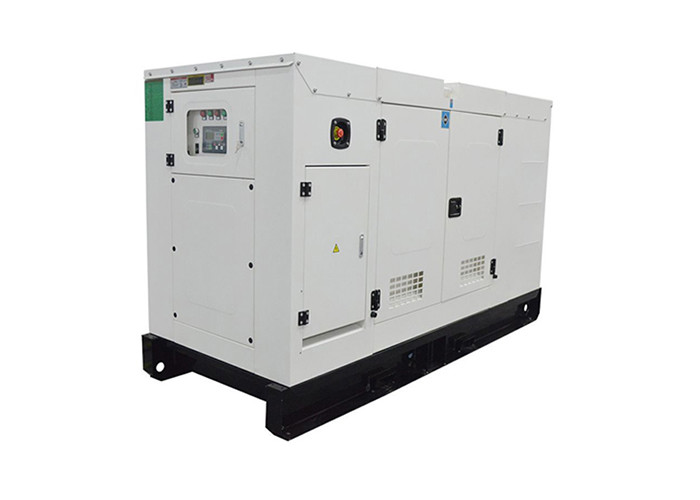

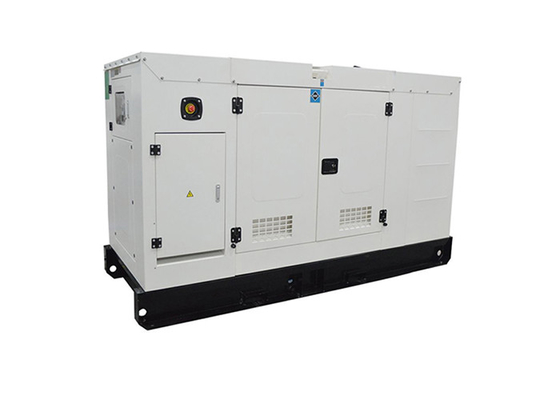

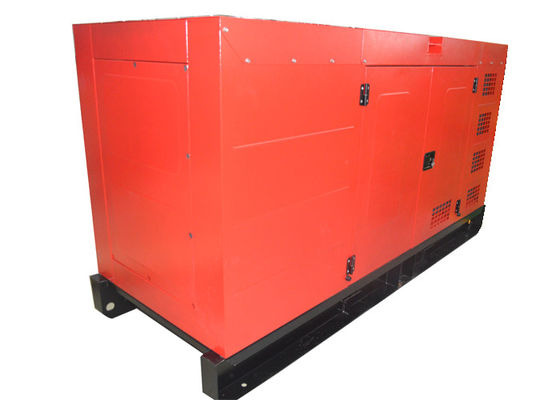

Generator soundproof/silent and canopy
1) Excellent ventilation
2) Black finish stainless steel locks and hinges
3) Zinc plated or stainless steel fasteners
4) Body made from steel components treated with polyester powder coating
5) Two large doors on either side
6) Radiator fill access plate
7) Fully guarded cooling fan and battery charging alternator
8) Fuel fill and battery access via lockable access doors
9) Emergency stop button on canopy exterior
10) Lube oil drain and radiator drain to exterior
11) Control panel viewing window
12) Lifting points on base frame
Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Company Details:
Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.
Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
