Three Phase Soundproof 10 - 200kva Water Cooled Diesel Generator Mute Type

1 sets
MOQ
negotiation
Price
Three Phase Soundproof 10 - 200kva Water Cooled Diesel Generator Mute Type
Features Gallery Product Description Request A Quote
Features
Specifications
Cooling System: Water Cooled
Fuel Tank: 8 Hours Running
Speed Govern: Electronic
Speed: 1500rpm
Conditions Of Use: Land Use
High Light:

emergency diesel generator

,

silent diesel generator set

Basic Infomation
Place of Origin: China, Wuxi
Brand Name: GPRO
Certification: CE, ISO
Model Number: GPSD
Payment & Shipping Terms
Packaging Details: ply wooden case, plastic
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 400 sets
Product Description

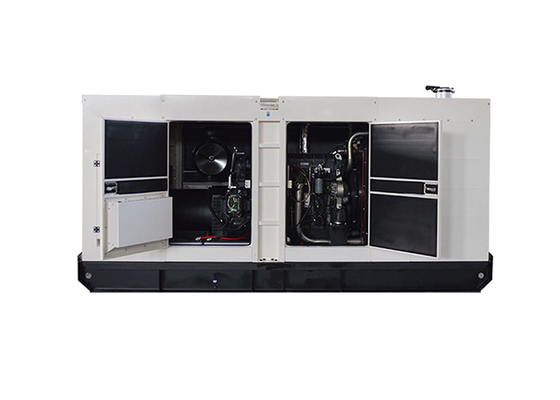

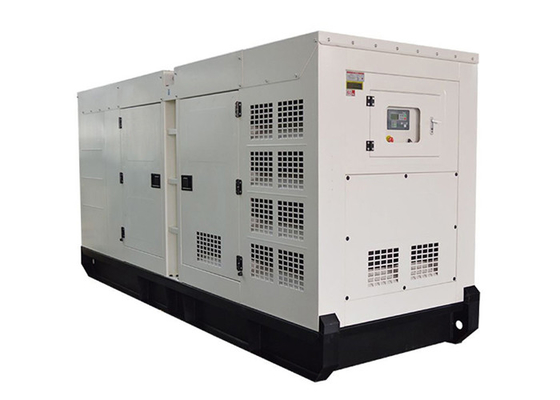

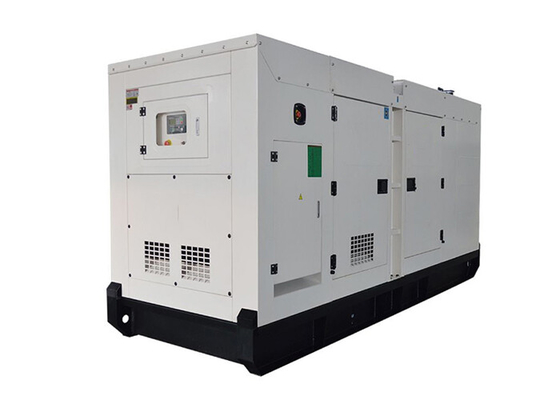

Three Phase Soundproof 10 - 200kva Water Cooled Diesel Generator Mute Type



Standard Accessory

Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Rain Cover, Battery Charger, Operation manual and document



Optional Accessory

Circuit breaker, Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Fuel-water separator,ATS & paralleling system, Soundproof Canopy and Moving Trailer.



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Genset Model List:





GENSET MODEL Prime Power Standby power Engine
KVA KW KVA KW Model No.Cylinder Governor
GP10LDS 10 8 11 9 KM380D 3.L M
GP13LDS 13 10 14 11 KM385D 3.L M
GP15SDS 15 12 17 13 SD485 4.L M/E
GP18SDS 18 14 19 15 SD485 4.L M/E
GP21SDS 21 17 23 19 SD490 4.L M/E
GP25SDS 25 20 28 22 SD490Z 4.L M/E
GP34SDS 34 27 37 30 SD4102 4.L M/E
GP38SDS 38 30 41 33 SD4102Z 4.L M/E
GP40SDS 40 32 44 35 SD4105 4.L M/E
GP45SDS 45 36 50 40 SD4105Z 4.L M/E
GP63SDS 63 50 69 55 SC4H95D2 4.L E
GP80SDS 80 64 88 70 SC4H115D2 4.L E
GP100SDS 100 80 110 88 SC4H160D2 4.L E
GP125SDS 125 100 138 110 SC4H180D2 4.L E
GP150SDS 150 120 165 132 SC7H230D2 6.L E
GP188SDS 188 150 207 165 SC7H250D2 6.L E
GP200SDS 200 160 220 176 SC8D280D2 6.L E



Company Details:



Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:

1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.


Three Phase Soundproof 10 - 200kva Water Cooled Diesel Generator Mute Type 0

Three Phase Soundproof 10 - 200kva Water Cooled Diesel Generator Mute Type 1
