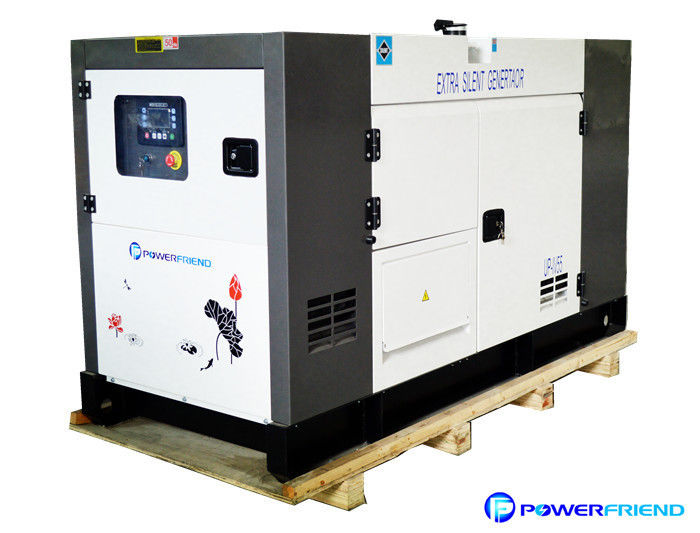

Japan Denyo Type FPT Diesel Generator Extra Silent Generator 45kva FPT Generating

1 SET
MOQ
Negotiation
Price
Japan Denyo Type FPT Diesel Generator Extra Silent Generator 45kva FPT Generating
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 36KW 45KVA
Frequency: 50/60HZ
Voltage: 220v - 690v Optional
Engine: Cummins, Perkins, Deutz, FPT, Chinese Brand For Optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
Controller: Deepsea, Smartgen, Harsen For Optional
MCCB: ABB Or Delixi
Cooling System: Water Cooled
Genset Type: Open Type, Silent Type, Container Type, Trailer Type For Optional
ATS: Optional
High Light:

electric generating set

,

rental power generators

Basic Infomation
Place of Origin: Jiangsu of China
Brand Name: GPRO
Certification: ISO,CE Certification
Model Number: GP50FPS
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Product Description

Japan Denyo type diesel generators extra silent generator 45kva FPT generating



1. Specification of Genset
Gensets Model GP50FPS
Prime Power 36kw/45kva
Rated Voltage 380/220V
Rated Frequency (HZ) 50
Rated Speed 1500rpm
Power Factor 0.8(lagging)
Dimensions (mm) (L×W×H) 1710x700x1340
Genset Weight (kg) 960
2. Specification of Diesel Engine
Engine Brand FPT
Engine Model NEF45Am1A
Number of Cylinders 4
Cylinder Arrangement Vertical in-line
Cycle Four stroke
Aspiration Turbocharged, Water cooling
Fuel System PT type fuel pump, EFC
Bore×Stroke (mm×mm) 159 x 159
Displacement (Liter) 50.3
Compression Ratio 13.9:1
Speed Governor Electronic
Cooling System Forced Water Cooling Cycle
Total lubrication System Capacity (L) 95
Fuel Consumption at 100% Load (L/H) 57
Starting Method DC24V electrical starting
3. Specification of Alternator
Alternator Brand Stamford / Meccalte
Alternator Model 224C
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP21
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class H
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
4. Specification of Control Panel (with Deepsea Controller)
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature,over speed, over load protection function.
The features of Deepsea controller:
Deepsea controller is a new generation automatic control module for single genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of genset for user or special assembly factory.


Japan Denyo Type FPT Diesel Generator Extra Silent Generator 45kva FPT Generating 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!
