600kw Doosan diesel generator soundproof type Korea engine DP222LC
| Genset Model |
GP825DS |
| Prime Power |
600KW/750KVA |
| Standby Power |
660KW/825KVA |
| Phase Number |
3 |
| Power Factor |
0.8 |
| Rated Voltage |
230/400V |
| Frequency |
50 HZ |
| Rated Current |
1190A |
| Genset Structure |
SILENT |
| Noise Level |
80 dBA@7m |
| Dimension |
6050X2435X2585MM |
| Net Weight |
9500KG |
| Engine Model |
DOOSAN / DP222LC
|
| Engine Features |
12-cylinder,4 stroke,water cooled, Turbo Charged & intercooled |
| Bore * Stroke |
128*142mm |
| Displacement |
21.927L |
| 12-hour Power(kw) |
657kw/1500 |
| Fuel Consumption |
161L/Hr 100% loading |
| Compression Ratio |
15:01 |
| Starting Mode |
Electric Starter 24V |
| Fuel Tank Capacity |
900L |
| Alternator Model |
MECC /ECO43-1SN/4 |
| Rated Power |
640KW/800KVA |
| Max Power |
704KW/880KVA |
| Excitation Mode |
brushless self-excited |
| Insulation Class |
H |
| Protection Class |
IP23 |
| Construction Type |
SAE Disc-coupling |
| Controler panel |
|
| Smartgen 6120 |
ntelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Description:
1. Power Range: 150KVA - 825KVA
2. Engine: Original Korea Doosan
3. Alternator: Stamford / Mecc Alte
4. Controller: Deepsea or Smartgen
5. Type: Open type, super silent type, weatherproof type, Trailer type
6. Color: Red color
Applications:
1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Engine low fuel consumption.
2. All orignal engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.

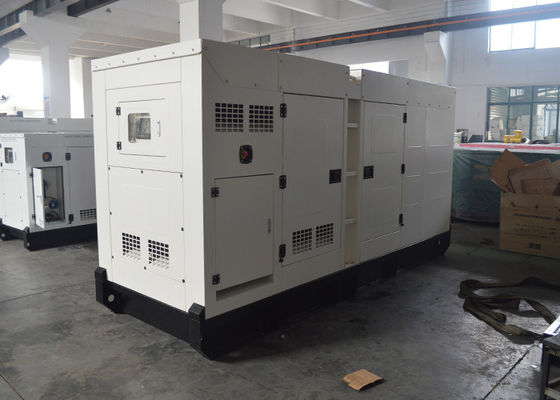

Generators photos:
