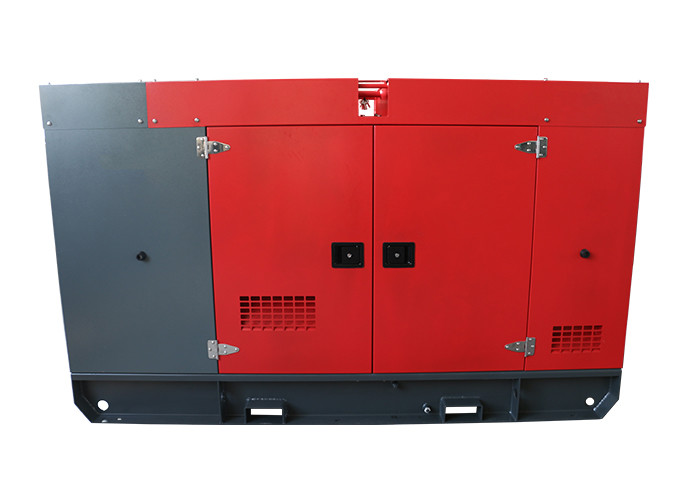

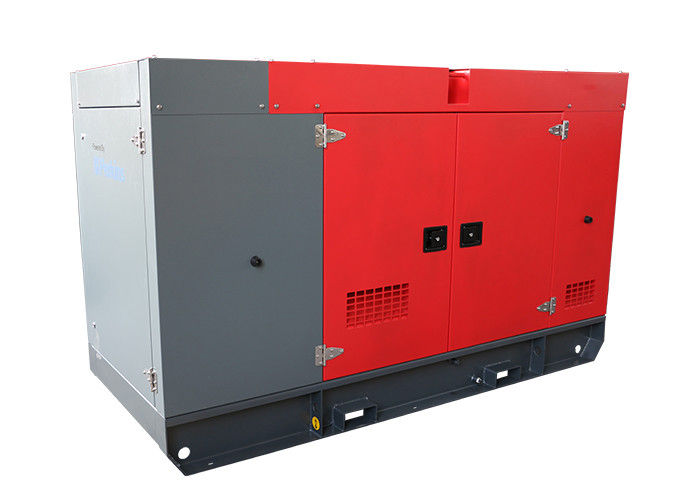

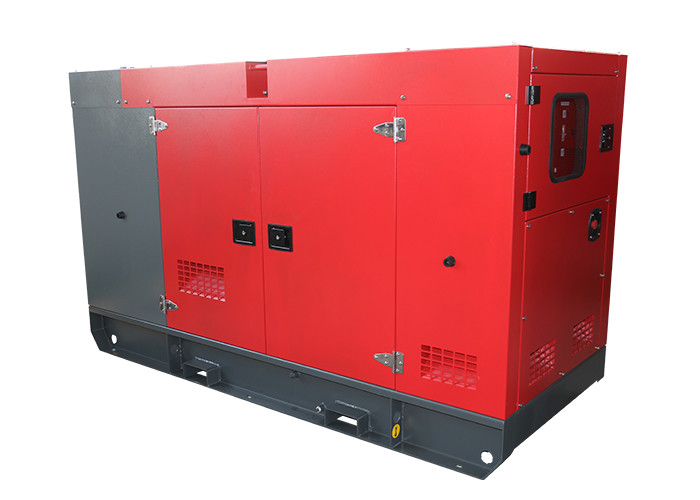

FAWDE engine 50kva Diesel Generator Super Silent 40kw canopy generating 50hz 60hz
| 1. Specification of Genset | ||
| Gensets Model | GP55FWS | |
| Prime/ Standby Power | 40kw/50kva 44kw/55kva | |
| Rated Voltage | 380/220V | |
| Rated Frequency (HZ) | 50 | |
| Rated Speed | 1500rpm | |
| Power Factor | 0.8(lagging) | |
| Dimensions (mm) (L×W×H) | 1710x700x1340 | |
| Genset Weight (kg) | 960 | |
| 2. Specification of Diesel Engine | ||
| Engine Brand | powered by FAWDE engine | |
| Engine Model | 4DX22-65D | |
| Number of Cylinders | 4 | |
| Cylinder Arrangement | Vertical in-line | |
| Cycle | Four stroke | |
| Aspiration | Turbocharged, Water cooling | |
| Fuel System | PT type fuel pump, EFC | |
| Bore×Stroke (mm×mm) | 159 x 159 | |
| Displacement (Liter) | 50.3 | |
| Compression Ratio | 13.9:1 | |
| Speed Governor | Electronic | |
| Cooling System | Forced Water Cooling Cycle | |
| Total lubrication System Capacity (L) | 95 | |
| Fuel Consumption at 100% Load (L/H) | 57 | |
| Starting Method | DC24V electrical starting | |
| 3. Specification of Alternator | ||
| Alternator Brand | Stamford / Meccalte | |
| Alternator Model | UCI 224D | |
| Number of Phase | 3 | |
| Connecting Type | 3 Phase and 4 Wires | |
| Number of Bearing | 1 | |
| Protection Grade | IP21 | |
| Altitude | ≤1000m | |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |
| Insulation Class | H | |
| Telephone Influence Factor (TIF) | ≤50 | |
| THF | ≤2% | |
| Voltage Regulation, Steady State | ≤±1% | |
| Transient State Voltage | ≤-15%~+20% | |
| 4. Specification of Control Panel (with Deepsea Controller) | ||
| The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature,over speed, over load protection function. | ||
| The features of Deepsea controller: | ||
| Deepsea controller is a new generation automatic control module for single genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of genset for user or special assembly factory. | ||
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional
Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Company Details:
Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.
Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
If you are interested, please contact with us at any time!
