Original Italy FPT IVECO 60HZ 220V 350kw Open Type Diesel Generator With ComAp Controller
Product Details
| Standby Power | 350KW / 440KVA | Frequency | 50HZ / 60HZ |
|---|---|---|---|
| Current | 570A | Voltage | 220/380V, 230V/400V, 240V/415V |
| Italy Engine | FPT IVECO/ CURSOR13TE2A | Controller | Smartgen/ DeepSea/ Comap |
| MCCB | Delixi/ CNT / ABB | Warranty | 1 Year Or 1000 Hours |
| Alternator | Stafmord / Meccalte | Fuel Tank | 10 Hours At 100% Loading |
| Option | Battery Charger / Water Heater / ATS | ATS Brand | SOCOMMEC / ABB |
| High Light | water cooled diesel generator,rental power generators |
||
Product Description
60HZ 220V 350kw IVECO diesel generator open type with ComAp controller
IVECO diesel engine advantage:
1. Original Italy FPT IVECO diesel engine model :CURSOR13TE2A
2. Euro standard production , strict quality control.
3. Some model engines approval EPA TIER 4 and Euro stage III emission requirement
Iveco diesel generator specification:
|
GENSET MODEL |
Prime Power |
Standby power |
Engine |
Alternator |
Fuel Consumption |
|||
|
KVA |
KW |
KVA |
KW |
Model |
No.Cylinder |
|||
|
PF-IV35 |
35 |
28 |
40 |
32 |
F32AM1A |
4L/NA |
PI 144H |
9.4 |
|
PF-IV50 |
50 |
40 |
55 |
44 |
N45AM1A |
4L/NA |
UCI224D |
12.8 |
|
PF-IV65 |
65 |
52 |
75 |
60 |
N45SM1A |
4L/TC |
UCI224F |
15.5 |
|
PF-IV75 |
75 |
60 |
85 |
68 |
N45SM2A |
4L/TC |
UCI224F |
19.3 |
|
PF-IV100 |
100 |
80 |
110 |
88 |
N45TM1A |
4L/TCA |
UCI274C |
23.3 |
|
PF-IV110 |
110 |
88 |
125 |
100 |
N67Sm1 |
4L/TCA |
UCI274D |
26.3 |
|
PF-IV140 |
140 |
112 |
154 |
123 |
N67SM1 |
6L/TCA |
UCI274E |
34.8 |
|
PF-IV145 |
145 |
116 |
160 |
128 |
N67TM2A |
6L/TCA |
UCI274E |
34.8 |
|
PF-IV170 |
170 |
136 |
187 |
150 |
N67TM3A |
6L/TCA |
UCI274G |
40.1 |
|
PF-IV225 |
225 |
180 |
250 |
200 |
N67TE2A |
6L/TCA |
UCD274J |
47 |
|
PF-IV250 |
250 |
200 |
275 |
220 |
SFH C9 |
6L/TCA |
UCD274K |
57 |
|
PF-IV285 |
285 |
228 |
313 |
250 |
C87TE1D |
6L/TCA |
HCI444D |
64.3 |
|
PF-IV320 |
320 |
256 |
360 |
288 |
C10TE1D |
6L/TCA |
HCI444ES |
76.4 |
|
PF-IV375 |
375 |
300 |
413 |
330 |
C13TE2A |
6L/TCA |
HCI444FS |
76.1 |
|
PF-IV410 |
410 |
328 |
450 |
360 |
C13TE3A |
6L/TCA |
HCI444F |
98.1 |
|
PF-IV700 |
700 |
560 |
770 |
616 |
V20TE1 |
8L/TCA |
LVI634B |
160 |
|
PF-IV770 |
770 |
616 |
850 |
680 |
V20TE2 |
8L/TCA |
LVI634C |
174.2 |
350KW IVECO GENERATOR SPECIFICATION:
| Rating KVa | 375 |
| Power Prime Kw | 300 |
| Standby Kw | 350 |
| Engine Brand | Iveco |
| Engine Model | CURSOR13TE2A |
| Alternator Brand | POWER FRIEND |
| Alternator Model | UP 4F |
| Controller Brand | SMARTGEN |
| Controller Model | ComAp MRS16 |
| Voltage | 400 - 230 |
| Frequency | 50 |
| Protection Grade | H |
| Insulation Class | IP23 |
| Db 7m | 80 |
| Db 1m | |
| PF rating | 0.8 |
| Fuel Consumption | 87.5L when 100% loading |
| Dimension LWH | 4800x1650x2230mm |
| Turbocharged | NO |
| Fuel Tank Capacity | 700L |
| Fuel Water seperator | YES |
| Warranty | 1 year or 1000 hours (depend on which model ) |

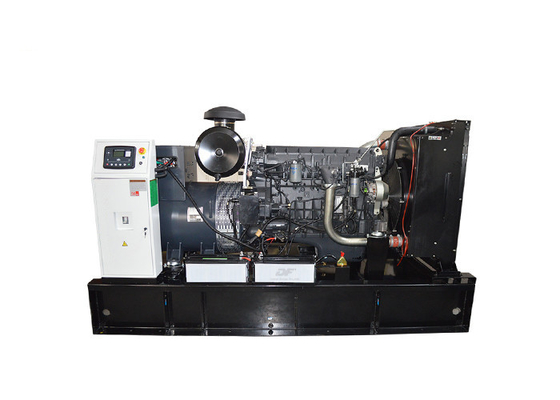

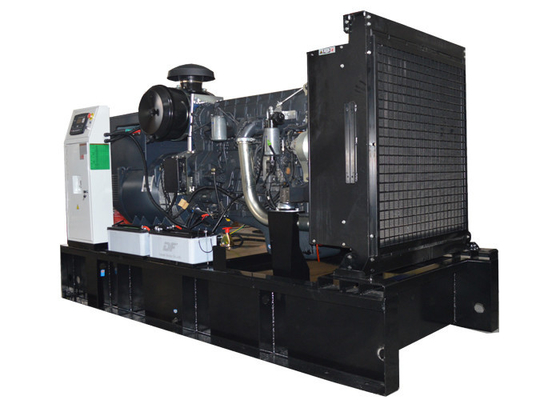

IVECO Diesel generator 350KW open type photos:
IVECO deisel engines, We have a large stock of IVECO motor :
Description:
1. Power Range: 45kva to 440kva
2. Engine: Made in Italy FPT Iveco engine
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: extra silent type, mobile type, Container type, etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
7. Emergency power station
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
