170kva Cummins Industrial Diesel Generator Stamford Alternator Auto Start

Place of Origin WUXI city China
Brand Name POWER FRIEND
Certification ISO9001/ISO14001/CE
Model Number PF-DC170
Minimum Order Quantity 1 SET
Price negotiation
Packaging Details POLY WOODEN CASE
Delivery Time 20 DAYS
Supply Ability 500/SETS/ MONTH
Product Details
Rated Power 156KVA /125KW Standby Power 170KVA /138KW
Engine DONGFENG CUMMINS Alternator Orginal Stamford
Controler Panel DeepSea / Smartgen Air Breaker MCCB DLIXI 3 Pole Or 4 Pole
Warranty 1 Year Or 1000 Hours Certificate ISO/CE/ PVOC

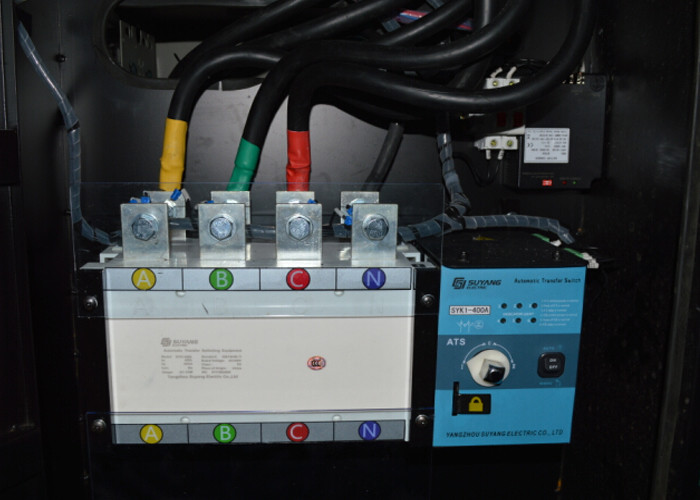

ATS SUYANG / AISKAI
High Light

cummins power generator

,

cummins diesel genset

Leave a Message
Product Description

170kva cummins industrial diesel generator stamford alternator auto start



Cummins 170kva open type generator Specification:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-DC170S
1.2 Prime at 50HZ, 40℃ ambient 125KW  156KVA
1.3 Standby at 50HZ, 40℃ ambient 138KW  170KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2510X960X1600mm
1.7 Weight 1800kg
1.8 Fuel consumption 100% prime load 45L/h
1.9 Total heat radiated to ambient 17KW

1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand DongFeng / Cummins
2.2 Engine Model

6BTAA5.9-G12

2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 114×135 mm
2.11 Compression ratio 17.3:1
2.12 Displacement 8.3 L
2.13 Engine Prime Power at 1500rpm 183KWm
2.14 Engine Standby Power at 1500rpm 203KWm
2.15 Battery capacity 100A/hr
2.16 Starting/Min temperature 4℃
2.17 Lubrication oil capacity 16L
2.18 Coolant capacity - radiator and engine (40℃) 28L
2.19 Exhaust temp - full load prime 498℃
2.20 Exhaust gas flow - full load prime 1020m 3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃ ambient) 2.1 m 3/s
2.23 Pusher fan head (duct allowance) 40℃ 10mmH 2O
2.24 Air intake - engine- full load prime 248m 3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.28 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Stamford/UCI274H
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 144.3A
3.12 Efficiency 0.903
3.13 Insulation class H
3.14 Protection class IP23



Description:



1. Power Range: 170KVA

2. Engine: DongFeng Cummins

3. Alternator: Original Stamford

4. Controller: Deepsea or Smartgen

5. Type: Open type, Soundproof type, weatherproof type, Trailer type, Container type, etc

      7. Color: Can be customized



Applications:



1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6. Standby power or main power, indoor or outdoor using.



Competitive Advantage:



1. Engine low fuel consumption.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base–        frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.

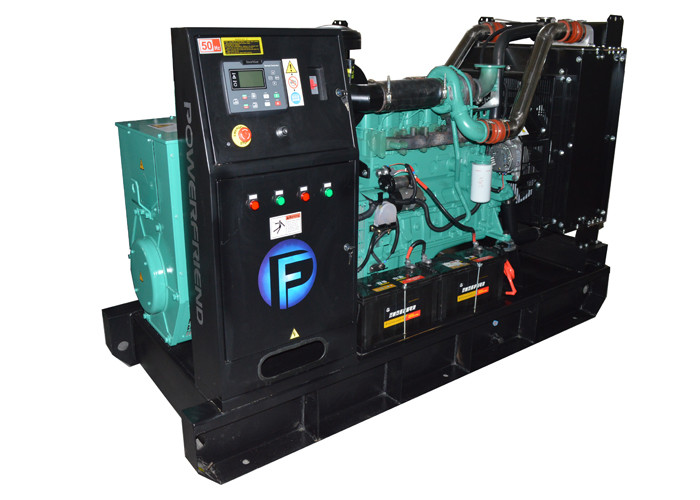

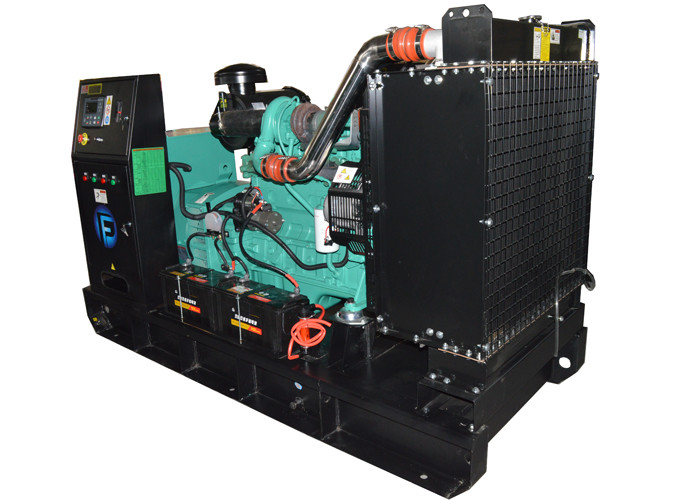

Generators photos:



170kva Cummins Industrial Diesel Generator Stamford Alternator Auto Start 0
