250kva Silent Soundproof Cummins Diesel Generators / emergency power generators

Place of Origin Jiangsu of China
Brand Name POWER FRIEND
Certification ISO,CE Certification
Model Number PF-DC250
Minimum Order Quantity 1 SET
Price USD13000 - USD17000
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 300 Set / Month
Product Details
Output Power 200KW Frequency 50/60HZ
Voltage 220v - 690v Optional Engine Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
Alternator Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller Deepsea, Smartgen, Harsen For Optional
MCCB ABB Or Delixi Cooling System Water Cooled
Genset Type Open Type, Silent Type, Container Type, Trailer Type For Optional ATS Optional
High Light

cummins power generator

,

cummins diesel genset

Leave a Message
Product Description

250kva Silent Soundproof Cummins Diesel Generators / emergency power generators







Genset Model

PF-DC250

Prime Power  (KVA/KW)

250/200(KVA/KW)

Standby Power  (KVA/KW)

275/220(KVA/KW)

Frequency & Voltage

400/230V, 50HZ

Rated current

360 A

Number of  Phase

3

Genset Type

Silent/Soundproof

Reference Dimension & Weight

(W*H, mm)/KGS

3750*1400*1850 &

2600KGS

DIESEL ENGINE

Engine Brand & Model

Cummins 6LTAA8.9-G2

Rated Output

200KW

Rated Speed

1500RPM

Engine Type

Four stork, in-line

water cooled

Number of Cylinder

6

Bore * Stroke

105*125mm

Aspiration Method

Trubocharged

Governor

Mechanical

Starting Method

Electric starting

Cooling Method

Forced water cooled

Lubrication Method

Pressure & splash lubricating

Fuel Consumption

45.4 L/H

ALTERNATOR

Alternator Brand & Model

Stamford/Leroy Somer

Type

Brushless & self-excited

Number of Phase

3

Volatage

400/230V

Frequency

50HZ

Power Factor

0.8

Insulation Grade

H

Protection Grade

IP22/23

Altitude

≤1000m



Cummins / Stamford Genset Features:

1. Engine: Cummins industrial diesel engine

2. Heat Dissipation: Radiator 40°C max, fans are driven by belt, with safe guard

3. Protective Operation: Choice of manual/auto and AMF control panels and protection systems

4. Control Panel: Digital auto-start LED panel

5. Shakeproof: Anti Vibration Suspension Absorber

6. Safe Filter: Dry type air filter, fuel filter, oil filter

7. Breaker: Mould case circuit breaker

8. Power: 24V DC start motor and storage battery

9. Nozzle: Ripple flex exhaust pipe, exhaust siphon, flange, and muffler

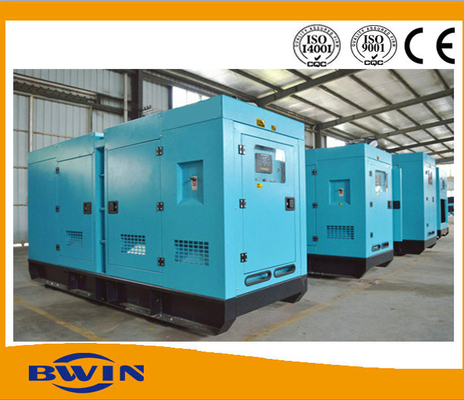

250kva Silent Soundproof Cummins Diesel Generators / emergency power generators 0

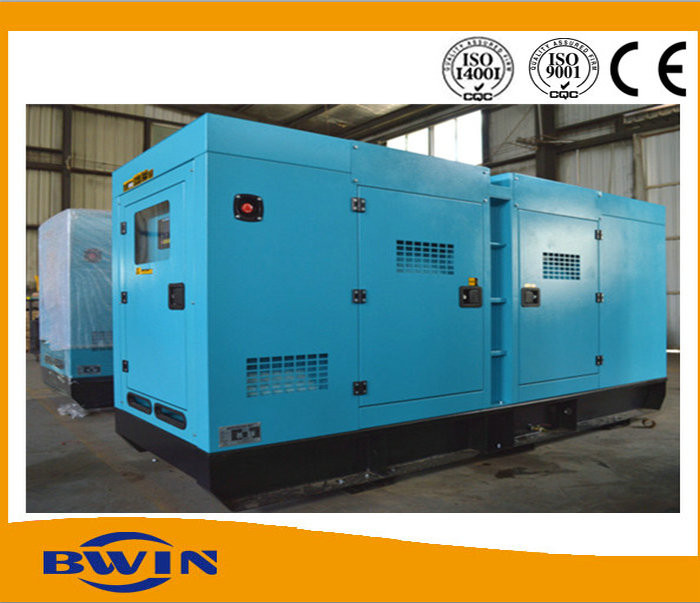

250kva Silent Soundproof Cummins Diesel Generators / emergency power generators 1

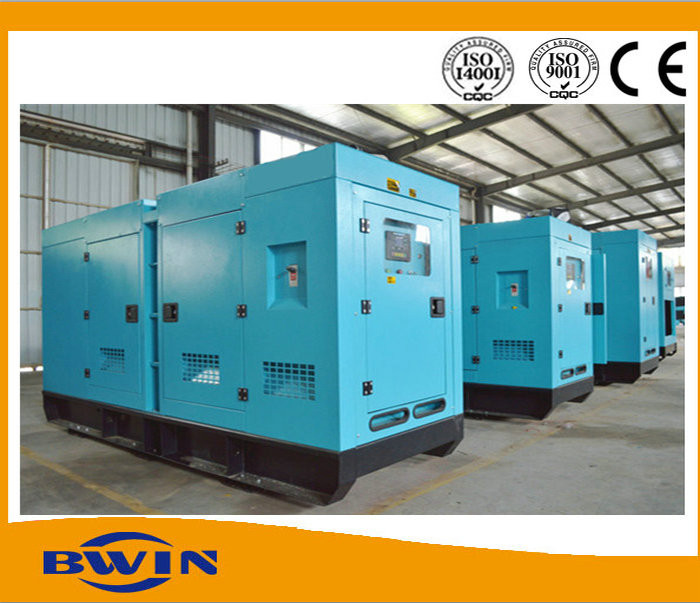

250kva Silent Soundproof Cummins Diesel Generators / emergency power generators 2



Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.
