Air Cooled Home Diesel Generator With 2V86 Engine , Electric Start Generator

Place of Origin WUXI CITY CHINA
Brand Name PowerFriend
Certification ISO9001/ISO14001/CE
Model Number PDI10T3
Minimum Order Quantity 20 SET
Price Negotiation
Packaging Details Poly wooden case or carton box
Delivery Time 20 days
Supply Ability 1000 sets / Month
Product Details
Power(Prime/Standby) 8KW/10KVA Frequency 50/60HZ
Current 35A Voltage 220/230/240v
Engine 2V86 , 2 Cylinder Diesel Engine Alternator 100% Copper
Controller Electric Start Sound Level/db 68dB
Warranty 1 Year Or 1000 Hours Phase 3 Phase Or 1 Phase
Engine Speed 3000rpm/3600rpm
High Light

small diesel generators

,

portable electric generator

Leave a Message
Product Description

Air cooled Generator 3000rpm/3600rpm with 2V86 Engine, small portable generator 10kw




Specification of 10kva Generator:



  Model NO. PDI10T(Silent) PDI10T3(Silent)
Genset Rated frequency(Hz) 50/60 50/60
Rated voltage(V) 230V 400/230V
Rated current(A) 34.7    39 14.4    16.3
Rated output power(kva) 8KVA/ 9KVA 10KVA/ 11KVA
Max output power (kva) 9KVA/ 10KVA 11KVA/ 12KVA
Rated rotation speed(rpm) 3000/3600 3000/3600
DC output 12V 8.3A 12V 8.3A
Power factor(cosφ) 1 0.8
Phase number Single phase 3 phase
Noise level[dB(A)@7m] 75 75
Overall dimension(L*W*H)[mm] 1120x750x800 1120x750x800
Net weight(kg) 285 285
Engine  Engine type 2V86 2V86
Structure type 2 cylinder, V Type,4-stroke,
air cooled, direct injection
2 cylinder,V Type,4-stroke,
air cooled, direct injection
Displacement[ml(cu. in)] 418 418
Engine speed(rpm) 3000/3600 3000/3600
Compression ratio 19:1 19:1
Rated output power[kW/rpm] 14.4/3000 ,  15.3/3600 14.4/3000 ,  15.3/3600
Lubrication system Pressure splashed Pressure splashed
Lube oil brand Above CD SAE 10W-30,15W-40 Above CD SAE 10W-30,15W-40
Starting system 12 V Electric starter 12 V Electric starter
Starting motor capacity 12V 0.8KW 12V 0.8KW
Charging generator capacity 12V 3A 12V 3A
Battery capacity 12V 36AH 12V 36AH
Fuel consumption rate[g/kW.h] 3000rpm: 270  ,  3600rpm: 290 3000rpm: 270  ,  3600rpm: 290
Fuel type Diesel 0#(summer)or-10#(winter),-35#(cold) Diesel 0#(summer)or-10#(winter),-35#(cold)
Fuel tank capacity(L) 25 25
Continuous running time(H) 8 8
  Qty for 20ft (pcs) 30 30

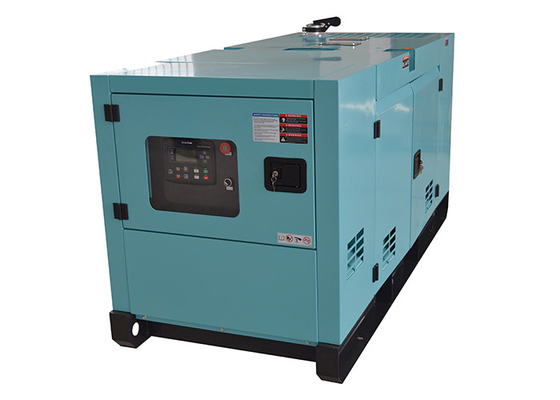

10kva diesel generators photos( Color can be customized):



Air Cooled Home Diesel Generator With 2V86 Engine , Electric Start Generator 0



Description:



100% copper alternator
2 2 cylinder 4 stroke , diesel engine
3 Phase single or 3 phase
4 Dimension 1120x750x800mm  Net Weight 260KGS
5 Quantity for 20 foot container 26 sets



Applications:



1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway

2. Home use , industrial use, island use.

3. Telecom, Mobile tower, etc

4.As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow



Competitive Advantage:



1. With 2 fan , have good air input and output design.

2. Power is stable.

3. 100% cooper

4.  Produce engines / canopy and assemble by ourselves.

5.  Small size , suitable small place.

6.  With 2V86, 2 cylinder air cooled diesel engine



Air Cooled Home Diesel Generator With 2V86 Engine , Electric Start Generator 1
