Electric Perkins Diesel Generator 400KW , industrial diesel generators

Place of Origin Jiangsu of China
Brand Name POWER FRIEND
Certification ISO,CE Certification
Model Number PF-P500
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 300 Set / Month
Product Details
Output Power 400KW 500KVA Frequency 50/60HZ
Voltage 220v - 690v Optional Engine Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
Alternator Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller Deepsea, Smartgen, Harsen For Optional
MCCB ABB Or Delixi Cooling System Water Cooled
Genset Type Open Type, Silent Type, Container Type, Trailer Type For Optional ATS Optional
High Light

perkins silent diesel generator

,

water cooled generator

Leave a Message
Product Description

Electric Perkins Diesel Generator 400KW , industrial diesel generators​



1. Specification of genset

Gensets model

PF-P500

Prime power

500KVA 400KW

Rated frequency(HZ)

50/60HZ

Rated Speed

1500/1800rpm

Power Factor(COS)

0.8(lagging)

2. Specification of diesel engine

Engine brand

Perkins

Engine model

2506A-E15TAG2

Number of Cylinders

6

Cylinder arrangement

Vertical in-line

Cycle

Four stroke

Aspiration

Turbo Charged

Bore×Stroke (mm×mm)

137 x 171

Displacement (Liter)

15.2

Compression Ratio

16:01

Speed Governor

Electronic

Cooling System

Forced Water Cooling Cycle

Lub. oil capacity (L)

62

Fuel Consumption, Stand-by (L/h)

100

Starting Method

Electrical starting

3. Specification of alternator

Alternator brand

Stamford

Alternator model

HCI544C

Number of Phase

3

Connecting Type

3 Phases and 4 Wires

Number of Bearing

1

Protection Grade

IP23

Altitude

≤1000m

Exciter Type

Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire

Insulation Class

H



 Heavy duty world class brand  industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards

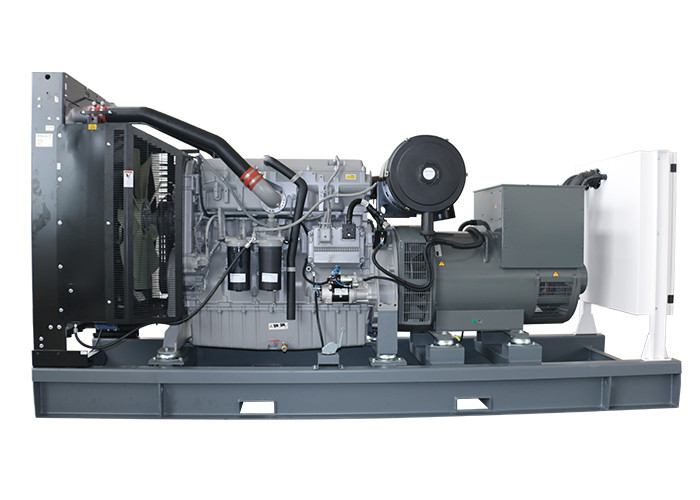

Electric Perkins Diesel Generator 400KW , industrial diesel generators 0

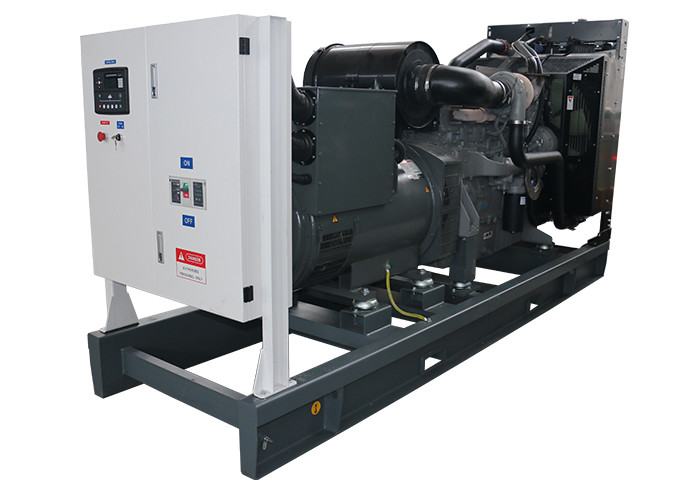

Electric Perkins Diesel Generator 400KW , industrial diesel generators 1



ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional.



 Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.
