Noiseless 80kw Cummins Diesel Generators100kva Silent Genset

Place of Origin Jiangsu of China
Brand Name POWER FRIEND
Certification ISO,CE Certification
Model Number PF-DC100
Minimum Order Quantity 1 SET
Price USD13000 - USD17000
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 300 Set / Month
Product Details
Output Power 80KW Frequency 50/60HZ
Voltage 220v - 690v Optional Engine Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
Alternator Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller Deepsea, Smartgen, Harsen For Optional
MCCB ABB Or Delixi Cooling System Water Cooled
Genset Type Open Type, Silent Type, Container Type, Trailer Type For Optional ATS Optional
High Light

cummins power generator

,

emergency diesel generator

Leave a Message
Product Description

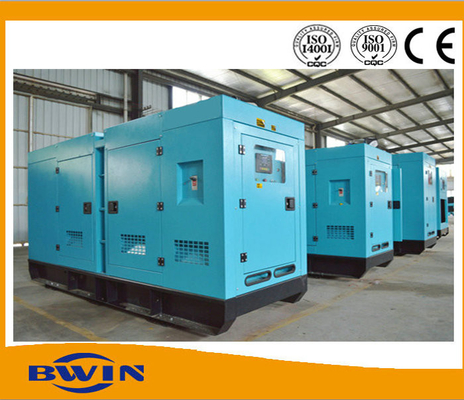

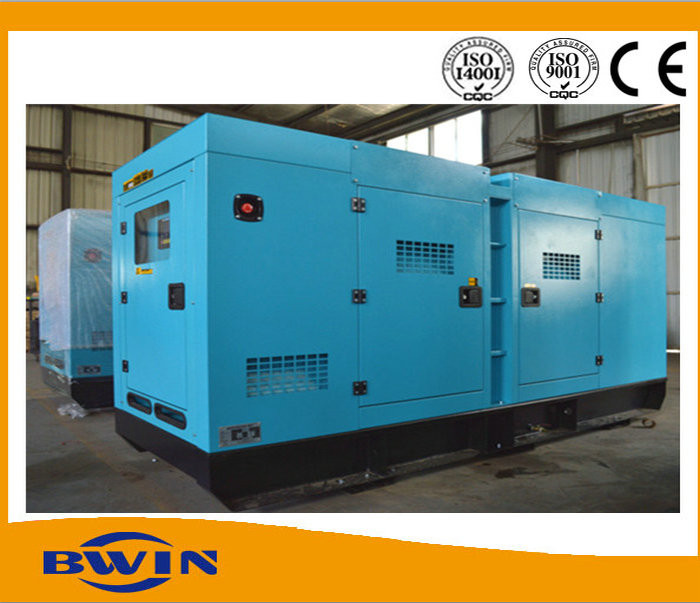

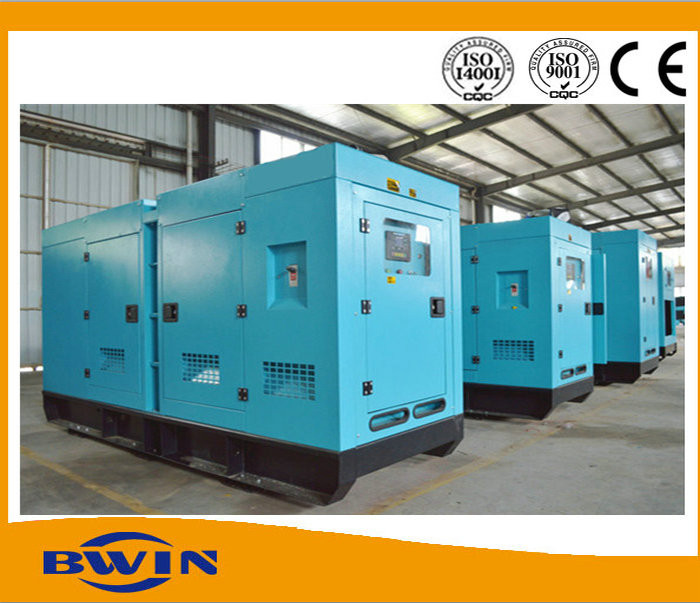

Noiseless 80kw Cummins Diesel Generators 100kva Silent Genset



Genset Specification
Model   PF-DC100
Prime Power KW 80
  KVA 100
Standby Power KW 88
  KVA 110
Power Factor   0.8
Frequency Hz 50
Rate Voltage V 380/220
Fuel Tank Capacity L (Base frame) 150
Fuel Consumption L/Hour 21.2
Sound @7 meters               Db 68
Open Type Product size L×W×H 2160*800*1460
Open Type Weight net kg 1270
Canopy type product size L×W×H 2650*1060*1450
Canopy Type Weight net kg 1700

Engine Specification
Model Cummins 6BT5.9-G1
Structure   6 cylinders
Fuel type   Diesel
Governor   Mechanical
Coolling   Water

Alternator Specification
Model Stamford UCI 224C
Excitation mode   Self-excitation
Insulation class   H
Protection class   IP23
TIF   <50
THF   <2%
Air flow m³/s 0.8



Cummins / Stamford Genset Features:

1. Engine: Cummins industrial diesel engine

2. Heat Dissipation: Radiator 40°C max, fans are driven by belt, with safe guard

3. Protective Operation: Choice of manual/auto and AMF control panels and protection systems

4. Control Panel: Digital auto-start LED panel

5. Shakeproof: Anti Vibration Suspension Absorber

6. Safe Filter: Dry type air filter, fuel filter, oil filter

7. Breaker: Mould case circuit breaker

8. Power: 24V DC start motor and storage battery

9. Nozzle: Ripple flex exhaust pipe, exhaust siphon, flange, and muffler



Noiseless 80kw Cummins Diesel Generators100kva Silent Genset 0

Noiseless 80kw Cummins Diesel Generators100kva Silent Genset 1

Noiseless 80kw Cummins Diesel Generators100kva Silent Genset 2



Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.
