Container Type 1000kva 800kw 1000KVA Perkins Diesel Generator

China Container Type 1000kva 800kw 1000KVA Perkins Diesel Generator supplier
Container Type 1000kva 800kw 1000KVA Perkins Diesel Generator supplier Container Type 1000kva 800kw 1000KVA Perkins Diesel Generator supplier Container Type 1000kva 800kw 1000KVA Perkins Diesel Generator supplier

Large Image :  Container Type 1000kva 800kw 1000KVA Perkins Diesel Generator

Product Details:

Place of Origin: Jiangsu of China
Brand Name: POWER FRIEND
Certification: ISO,CE , CO, FORM E Certification
Model Number: PF-P1000S

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood or Plastic packing
Delivery Time: 25 working days
Payment Terms: L/C, T/T
Supply Ability: 500 Set / Month
Contact Now
Detailed Product Description
Output Power: 1000KVA /800KW Frequency: 50/60HZ
Voltage: 220/400V 230/430 240/415 Optional Engine: Original UK Perkins
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller: Deepsea 6020/7320
MCCB: ABB Or Delixi Cooling System: Water Cooled
Noisel Level: 85dB At 7 Meters ATS: Optional



Container Type 1000kva 800kw Standard 20ft container Perkins Diesel Generator





1000KVA CONTAINER TYPE GENERATOR SPECIFICATION:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-P1000S
1.2 Prime at 50HZ, 40℃ ambient 800KW 1000KVA
1.3 Standby at 50HZ, 40℃ ambient 880KW 1100KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 6050×2435×2585
1.7 Weight 9400kg
1.8 Fuel consumption 100% prime load 220l/hr
1.9 Noise Level at 7 (Normal/Super) 85dB
1.10 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set
1.11 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Perkins
2.2 Engine Model 4008TAG2A
2.3 Governor/Class Electronic
2.4 Cylinder NO. 8
2.5 Engine build Vertical in-line
2.6 Fuel spray pattern direct injection
2.7 Aspiration Turbocharged
2.8 Cooling mode Radiator cooled (enclose water)
2.9 Bore and stroke 160 x 190 mm
2.10 Compression ratio 13.6:1
2.11 Displacement 30.561 litres
2.12 Engine Prime Power at 1500rpm 861KWm
2.13 Engine Standby Power at 1500rpm 947KWm
2.14 Start-up mode 24V, electric
2.15 Battery capacity 2 x 12 volts x 178 Ah
2.16 Starting/Min temperature /
2.17 Lubricating oil consumption Lubricating oil consumption less than 10% Fuel consumption
2.18 Lubrication oil capacity 153litres
2.19 Coolant capacity – radiator and engine (40℃) 149 litres
2.20 Exhaust temp – full load prime 438°C
2.21 Exhaust gas flow – full load prime 200m³/min
2.22 Exhaust gas back pressure max 3,0 kPa
2.23 Air flow – radiator (40℃ ambient) /
2.24 Pusher fan head (duct allowance) 40℃ /
2.25 Air intake – engine– full load prime 75m³/min
2.26 Standard Air intake temp 25℃
2.27 Fuel type #0 Diesel (Natural temperature)
2.28 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.29 Exhaust system Adopt industrial high efficiency silencer and flexible bellows
2.30 Engine derating – altitude /
2.31 Engine derating – temperature /
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model STAMFORD / LVI634E
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 1443.4A
3.12 Efficiency 0.942
3.13 Insulation class H
3.14 Protection class IP21
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 2260Kg





 Heavy duty world class brand  industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards





Features and benefits



  1. Tightly structure, excellent design and craft
  2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  3. Self-diagnostic capability simplifies troubleshooting
  4. LCD display shows system status and setup information
  5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  7. Enclosed muffler for added quietness
  8. Service and maintenance accessible through easy-latch side service door


Container Type 1000kva 800kw 1000KVA Perkins Diesel Generator





ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional.



 Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.

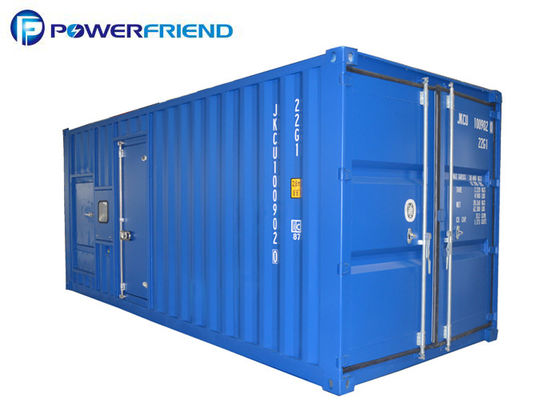

CONTAINER TYPE GENERATOR PHOTO:



Container Type 1000kva 800kw 1000KVA Perkins Diesel Generator
