9M Manual High Mast Mobile Light Tower With KOFO Ricardo / FAWED / Laidong

1 set
MOQ
TBD
Price
9M Manual High Mast Mobile Light Tower With KOFO Ricardo / FAWED / Laidong
Features Gallery Product Description Request A Quote
Features
Specifications
Model: PL-8000T
Certificate: CE/ISO9001
Power Factor: 0.8
Protection Class: IP23
Phase Number: 3
Engine Model: KOFO(Ricardo)/FAWED/Laidong And USA Brand For Optional
Alternator Model: Stamford/Leroy Somer/Marathon
Type: 4-cyclinder , Water-cooled Diesel Engine
Noise Level: 72dB At 7 Meters
Controller: Harsen/ComAp/Deepsea/Smartgen
Optional: ATS/Fuel Tank Capacity/color/logo
Fuel Consumption: 2.0L/Hr
Power Of Lamp: 4x1000W Or 4x1500W Metal Halide
Voltage: 110V-240V
Color: 16 Colors Changing
Material: Aluminum Alloy
High Light:

mobile lighting tower

,

portable light towers

Basic Infomation
Place of Origin: WUXI, CHINA
Brand Name: GPRO
Certification: ISO9001/ ISO14001 / CE / SONCAP
Model Number: PL-8000T
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 25 work days
Supply Ability: 250 sets / Month
Product Description

9M Manual High Mast Mobile Light Tower With KOFO Ricardo / FAWED / Laidong



9M manual high mast mobile led light tower

Product Description





Key Features Include:

1.9m hydraulically operated telescopic mast
2.320 mast rotation
3.Available in 4x1000W Metal Halide Lamp
4.Galvanized reflector housing
5.Heavy-duty, weather-protective enclosure

  • Heavy-duty,trailer type equiped with water-cooled diesel engines & brushless alternator (up to 20kw).
  • 9M light tower with 4kw metal halide lamps (up to 12kw).
  • Large base fuel tank of 30 US gallon (114L), offering up to 60 hours of run time.



Technical Data:

Trailer
Hitch Ring / Ball
Tire Size ST175/80D 13 6PR(13'')
Stablizing Legs 5pcs, Manual
Suspension System Leaf Spring Axie
Taillingts Available

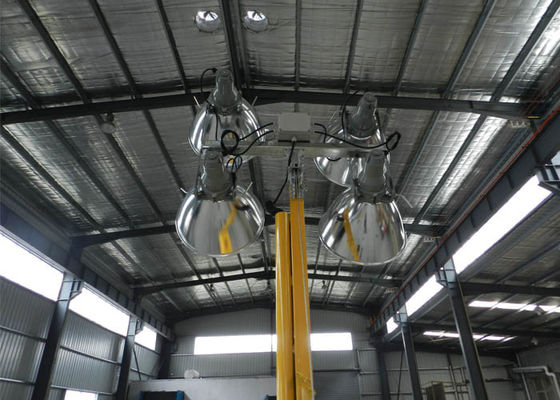

Light
Housing Material Aluminium die cast
Lumen Output 4*110,000lm
Voltage AC 110-240V
Lifetime of lamps 2000HRS
Color temperature 2100-5700K
Diesel Generator
Engine Model 3 cylinder, in-line, 4-stroke, water cooled
Start System Electric start
Engine Speed 50HZ/1500RPM, 60HZ/1800RPM
Insulation H
Fuel Tank Capacity 100L
Waterproof grade IP54
Weight & Packing
Net weight 850kg
Retracted Size 4200x1370x1750 MM



Features and benefits:







Panel




ATS

Features of ATS

  • Automatically transfer and re-transfer load from main power to gen-power without operator intervention.(Both Automaic and manual operation.)
  • Available from 40-3200A, better protection for 4 pole switch.
  • Showing generator set/mains availability and switch position.
  • Drip Installation:Wall-mounted & Floor standing.
  • ATS installed inside the canopy:this is optional for the range smaller than 100Amp.

Features of Paralleling System

  • PLC centralized logic control
  • Easy to extend the volume to satisfy the need of load increase
  • Synchronizer auto capture and parallel
  • Load divider automatically divide load according to proportion
  • Auto add and lessen the number of sets according to load capacity
  • Short circuit, overload and reverse power protection
  • Max.32 paralleling sets
  • Rotate operation of many sets



Our Services
Our services
  • After-sales:

Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.

  • Guarantee:

Warraty period is one year or 1000 hours (depends on which occurs first ). If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.

  • Free training:

We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.



Company advantages
  • We are a powerful and unity sales team:

we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

  • We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
  • We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
  • With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.





Company Information




Our Workshop

diesel genset with 150-750kva engine



Major projects at home and abroad

Major engineering.jpg

Other Products

9M Manual High Mast Mobile Light Tower With KOFO Ricardo / FAWED / Laidong 5

Trade shows

Our company has participated in several exhibitions, such as Canton Fair(Guangzhou) and many foreign trade shows.

trade show 2.jpg

Packaging & Shipping

Delivery Time: 30 days after deposite

Package: nude packing or plywooden case

150-750kva diesel genset by Italian FPT FPT (250kva)

Engine Series Power

engine series power.jpg

FAQ

Q1: What is your warranty period?

A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).



Q2: Does your generator have global warranty?

A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.



Q3: What is your payment terms?

A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C Irrevocable L/C at sight.



Q4: What is your delivery time?

A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.



Q5: Can the generators be customized?

A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.



Q6: Can you use our logo?

A6: Yes. For mass orders, we can use customer's logo instead of ours.
