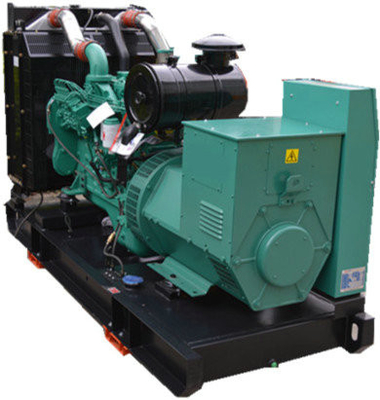

100KW 200KW 300KW Power Genset Open type water cooled generator
| Genset Model | PF-DC125 | PF-DC250 | PF-CC375 | |
| Rated Power(KVA/KW) | 125/100 | 250/200 | 375/300 | |
| Max Power(KVA/KW) | 138/110 | 275/220 | 413/330 | |
| Rated Voltage(V) | 400/230V | |||
| Engine Brand & Model | 6BTAA5.9-G2 | 6CTAA8.9-G2 | NTAA855-G7 | |
| Rated Speed | 1500rpm | |||
| No. Cylinder | 6L | |||
| Fuel Consumption (L/Hr) | 24 | 62 | 101 | |
| Alternator Model | UCI274D | UCI274K | HCI444FS | |
| Type | Brushless & self-excited, AVR regulation | |||
| Frequency | 50Hz | |||
| Power Factor | 0.8 | |||
| Phase Number/Poles | 3 Phase 4 wires | |||
| Demention (L*W*H) (mm) | 2240*980*1515 | 2623*1130*1550 | 3300*1200*1950 | |
| Gross Weiht (kg) | 1400 | 2300 | 4800 | |
| Insulation Grade | H | |||
| Protection Grade | IP23 | |||

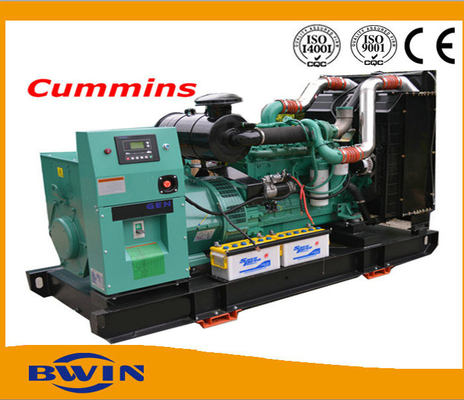

Cummins / Stamford Genset Features:
1. Engine: Cummins industrial diesel engine
2. Heat Dissipation: Radiator 40°C max, fans are driven by belt, with safe guard
3. Protective Operation: Choice of manual/auto and AMF control panels and protection systems
4. Control Panel: Digital auto-start LED panel
5. Shakeproof: Anti Vibration Suspension Absorber
6. Safe Filter: Dry type air filter, fuel filter, oil filter
7. Breaker: Mould case circuit breaker
8. Power: 24V DC start motor and storage battery
9. Nozzle: Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running
automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional.
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
