AC 3 Phase 50HZ Frequency 313kva Electric Cummins Diesel Generators

1 set
AC 3 Phase 50HZ Frequency 313kva Electric Cummins Diesel Generators
Features Gallery Product Description Request A Quote
Product Name: Diesel Generator
Prime Power(KVA/KW): 250KW 313KVA
Engine Model: NTA855-G1B
Standby Power: 275KW 344KVA
Rated Voltage: 230/400V
Dimension: 4200×1400×2000mm
Noise Level: 72dB At 7 Meters
Fuel Consumption: 64.7L/h
Basic Infomation
Place of Origin: China (Mainland)
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP344CC
Payment & Shipping Terms
Packaging Details: Ply wooden case or Nude packing
Delivery Time: 15days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per months
Product Description

AC 3 Phase 50HZ Frequency 313kva Electric Cummins Diesel Generators


Technical specification
Genset Model GP344CC
Prime Power 250KW/313KVA
Standby Power 275KW/344KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 452A
Genset Structure SILENT
Dimension 4200×1400×2000mm
Net Weight 3800KG
Noise level 80dB at 7 meters
Fuel Tank Capacity 520L
Engine Model NTA855-G1B
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 140mm × 152mm
Displacement 14L
12-hour Power(kw) 380KW/1500
Fuel Consumption L/H 64.7L/H
Compression Ratio 14:01
Governor type ELECTIC
Alternator Model STAMFORD /HCI444ES
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Deepsea 7320 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator


AC 3 Phase 50HZ Frequency 313kva Electric Cummins Diesel Generators 0



1. Diesel Cummins engine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF.

4. Options: remote controller, synchronizing.

5. ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

6. Type: Silent type, weather proof, Trailer type


1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:


1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original FAW engine , good quality , good price.


Company Details:


Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.


Our advantages:

1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If have any questions, please contact us. Your inquiry would be appreciated.

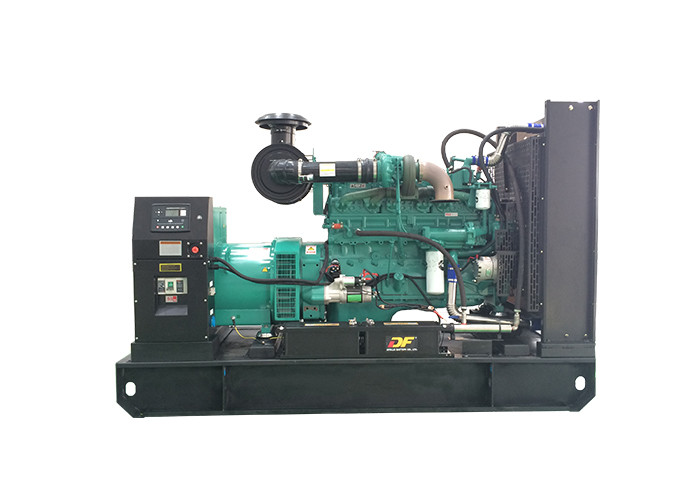

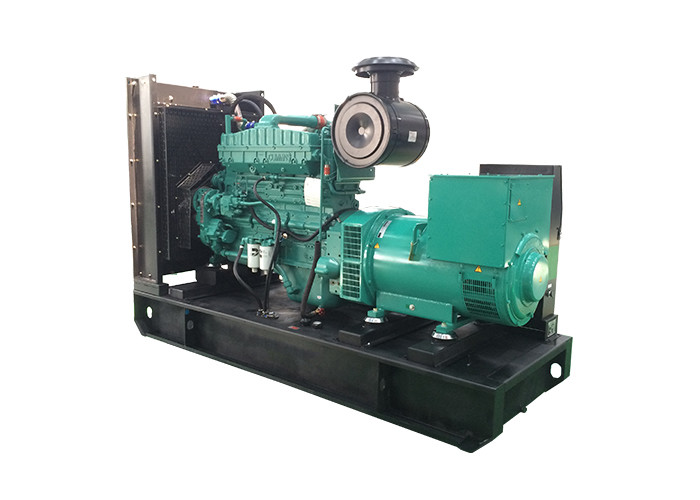

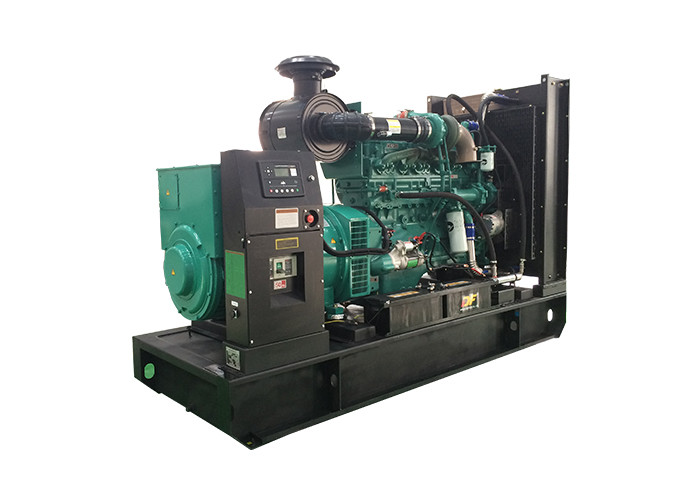

AC 3 Phase 50HZ Frequency 313kva Electric Cummins Diesel Generators 1

AC 3 Phase 50HZ Frequency 313kva Electric Cummins Diesel Generators 2
