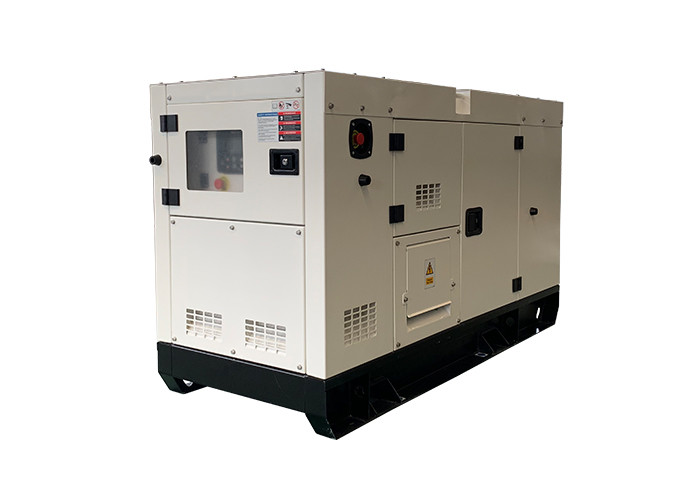

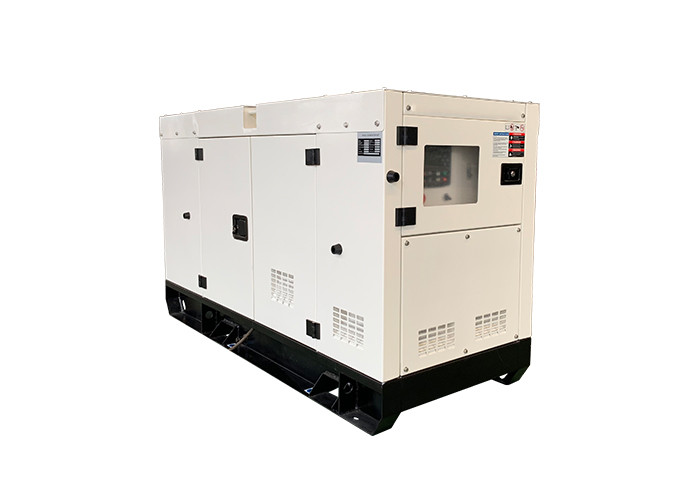

High Performance Cummins Engine 20KW 25KVA Silent Diesel Generator Low Noise
-
Engine BrandCummins
-
Prime Power20KW 25KVA
-
Genset ModelPF-DC28S
-
Standby Power22KW 28KVA
-
Engine Model4B3.9-G1
-
Rated Current(A)36 (A)
-
Warranty1 Year Or 1000 Hours
-
CertificatesCE, ISO9001
-
Place of OriginChina（Mainland）
-
Brand NameGPRO
-
CertificationISO9001/ CE
-
Model NumberPF-DC28S
-
Minimum Order Quantity1 set
-
Pricenegotiate
-
Packaging Detailspoly wooden case or plastic poly
-
Delivery Time15 working days
-
Payment TermsL/C, T/T
-
Supply Ability500 sets / Month
High Performance Cummins Engine 20KW 25KVA Silent Diesel Generator Low Noise
High Performance Cummins Engine 20KW 25KVA Silent Diesel Generator Low Noise
Product describition
| Technical specification | |
| Genset Model | PF-DC28S |
| Prime Power | 20KW/25KVA |
| Standby Power | 22KW/28KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 36A |
| Genset Structure | SILENT |
| Dimension | 2200×1000×1335mm |
| Net Weight | 1080KG |
| Noise level | 68dB at 7 meters |
| Fuel Tank Capacity | 100L |
| Engine Model | 4B3.9-G1 |
| Engine Features | 4-cylinder,4 stroke,water cooled ,natural intake |
| Bore * Stroke | 102mm × 120mm |
| Displacement | 3.9L |
| 12-hour Power(kw) | 24KW/1500 |
| Fuel Consumption L/H | 5.5L/H |
| Compression Ratio | 16.5:1 |
| Governor type | Mechanical |
| Alternator Model | STAMFORD / PI144E |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | |
| Smartgen 6120 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
