80kva Cummins Diesel Power Generator Pink With 6BT5.9-G1 Engine

China 80kva Cummins Diesel Power Generator Pink With 6BT5.9-G1 Engine supplier
80kva Cummins Diesel Power Generator Pink With 6BT5.9-G1 Engine supplier 80kva Cummins Diesel Power Generator Pink With 6BT5.9-G1 Engine supplier

Large Image :  80kva Cummins Diesel Power Generator Pink With 6BT5.9-G1 Engine

Product Details:

Place of Origin: WUXI city ,China
Brand Name: POWER FRIEND
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: PF-DC94S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: poly wooden case
Delivery Time: 25 days
Supply Ability: 500 sets / Month
Contact Now
Detailed Product Description
Power(Prime/Standby): 85KVA/68KW Standby Power: 94KVA/75KW
Current: 123A Voltage: 220/380V
Engine: Cummins Alternator: Mecc Alte / Stamford / Chinese Brand
Controller: Smartgen / DeepSea/ Harseen With AMF Function MCCB: Delixi / ABB 3 Pole Or 4 Pole
Sound Level/db: 70dB 7 Meter Warranty: 1 Year Or 1000 Hours
ATS: Aiskai 160A 4 Pole



Cummins Engine 68kw Prime Power Diesel Power Generator Three Phase for Backup Function



With AMF Function Water Cooled 60KW Diesel Power Generator Backup Generator:



Genset Model PF-DC88S
Prime Power 64KW/80KVA
Standby Power 70KW/88KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 115A
Genset Structure SILENT
Dimension 2970×1120×1580mm
Net Weight 1560KG
Noise level 72dB at 7 meters
Fuel Tank Capacity 240L
Engine Model 6BT5.9-G1
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 102mm × 120mm
Displacement 5.9L
12-hour Power(kw) 86KW/1500
Fuel Consumption L/H 17L/H
Compression Ratio 16.5:1
Governor type MECHANICAL
Alternator Model STAMFORD /UCI224G
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Smartgen 6120 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator

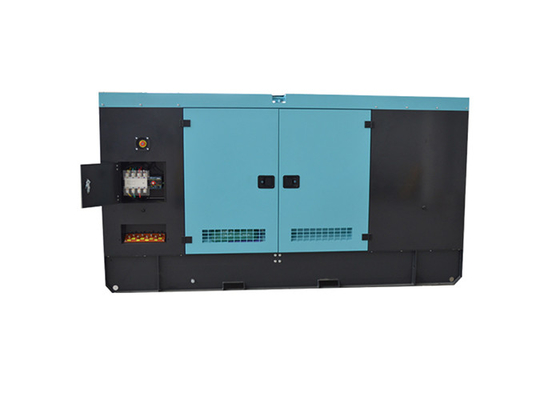

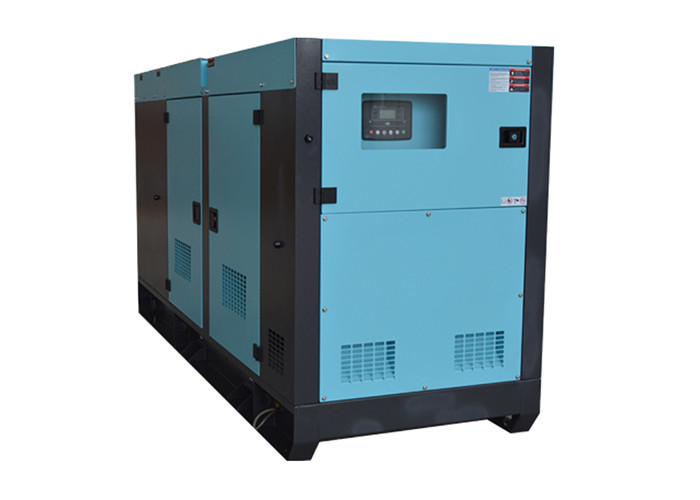

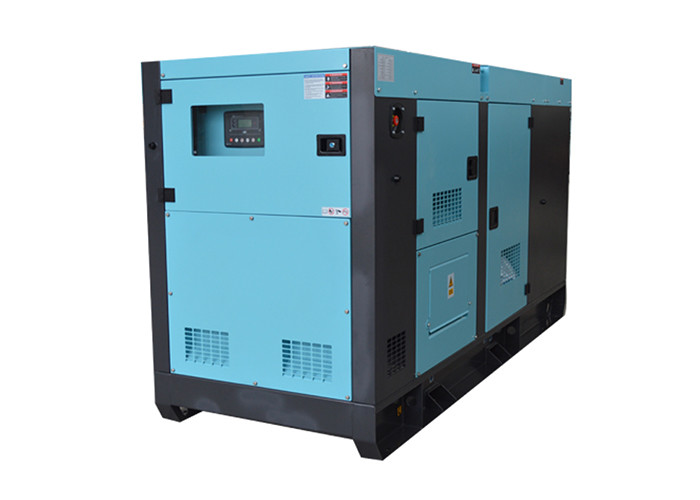

Diese power generator photos:
80kva Cummins Diesel Power Generator Pink With 6BT5.9-G1 Engine

Description:


2. Alternator: Brushless 100% copper

3. Controller: UK Deepsea / Smartgen /Harseen

4. Options: remote controller, synchronizing.

5. With ATS / Battery Charger

6. Type: Soundproof type, weather proof, Trailer type
      7. Color: Any color
      8. Support OEM

Applications:

1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow


Competitive Advantage:


1. Low fuel consumption

2. Good quality engine and alternator

3. Fast delivery. Big quantity of Engines in stock.

4. The generator set is mounted on a heavy duty fabricated steel skid type base–              frame with anti vibration mounting pads.

5. Use high standard of sponge to make soundproof.

6. The canopy design is user friendly, and easy for maintenance.

7. Pre and after sales service is provided.

8. 365 days, 24 hours after sale service

9. Economy / Competitive price
