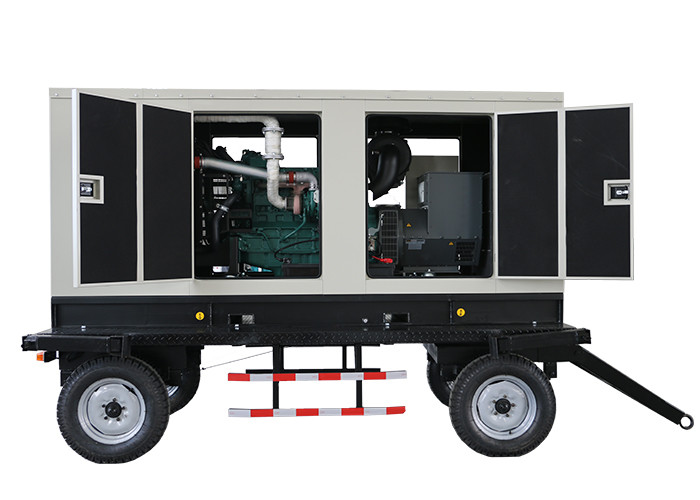

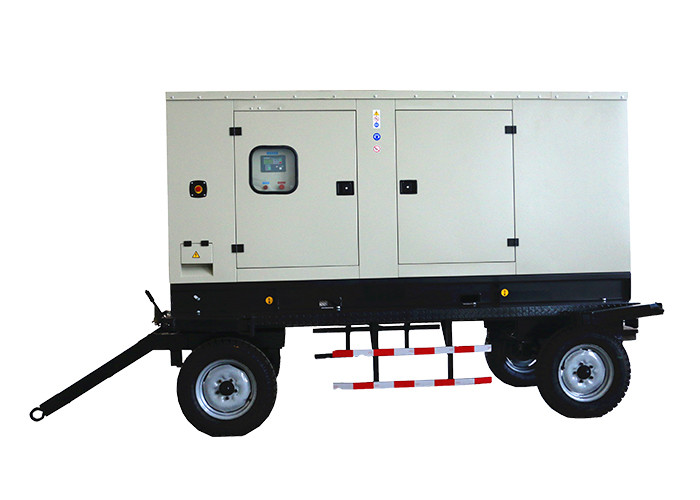

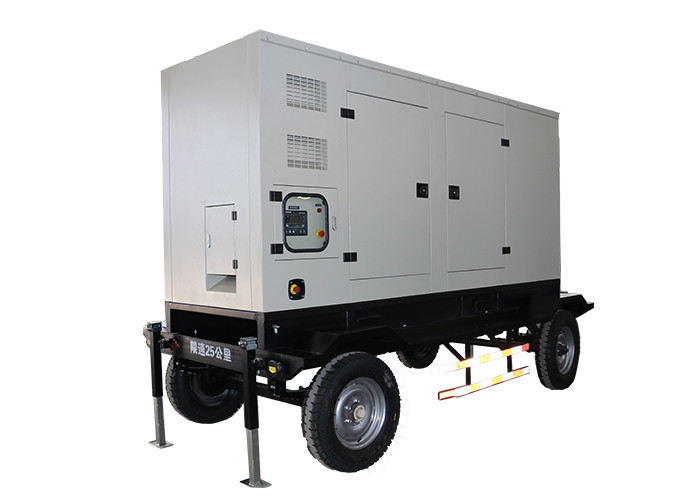

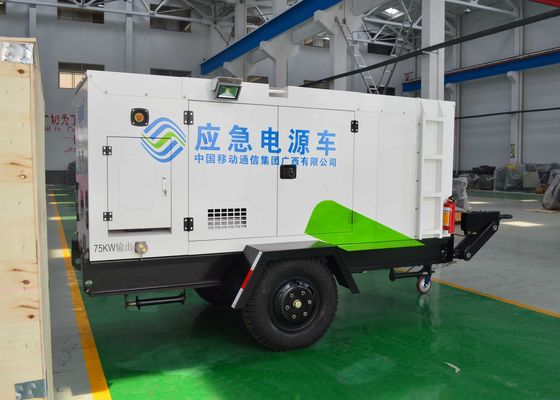

Outdoor 80kw 100kva Water Cooled Heavy Duty Diesel Generator Low Noise

Place of Origin WUXI
Brand Name POWER FRIEND
Certification ISO9001/ISO14001/CE/PVOC
Model Number PF-DC110T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details poly wooden case
Delivery Time 20 days
Payment Terms L/C, T/T
Supply Ability 50 sets / Month
Product Details
Power Rate 100kva Voltage 230/400V
Controller Smartgen / DeepSea MCCB Delixi /ABB
Warranty 1 Year Or 1000 Hours Protection Class IP23
Displacement 8.7L Noise Level 65dBA@7m(no Load)
Leave a Message
Product Description



Outdoor 80kw 100kva Water Cooled Heavy Duty Diesel Generator Low Noise



Product Description



1. Specification of Genset
Gensets Model PF-DC110T
Prime/ Standby Power 80kw/100kva 88kw/110kva
Rated Voltage 380/220V
Rated Frequency (HZ) 50
Rated Speed 1500rpm
Power Factor 0.8(lagging)
Dimensions (mm) (L×W×H) 1710x700x1340
Genset Weight (kg) 960
2. Specification of Diesel Engine
Engine Brand Optional
Engine Model /
Number of Cylinders 6
Cylinder Arrangement Vertical in-line
Cycle Four stroke
Aspiration Turbocharged, Water cooling
Fuel System PT type fuel pump, EFC
Bore×Stroke (mm×mm) 159 x 159
Displacement (Liter) 50.3
Compression Ratio 13.9:1
Speed Governor Electronic
Cooling System Forced Water Cooling Cycle
Total lubrication System Capacity (L) 95
Fuel Consumption at 100% Load (L/H) 57
Starting Method DC24V electrical starting
3. Specification of Alternator
Alternator Brand Stamford / Meccalte
Alternator Model UCI 274C
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP21
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class H
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
4. Specification of Control Panel (with Deepsea Controller)
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature,over speed, over load protection function.
The features of Deepsea controller:
Deepsea controller is a new generation automatic control module for single genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of genset for user or special assembly factory.

Outdoor 80kw 100kva Water Cooled Heavy Duty Diesel Generator Low Noise 0

Outdoor 80kw 100kva Water Cooled Heavy Duty Diesel Generator Low Noise 1



Standard Accessory

Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Rain Cover, Battery Charger, Operation manual and document



Optional Accessory

Circuit breaker, Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Fuel-water separator,ATS & paralleling system, Soundproof Canopy and Moving Trailer.



Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.




Packing & Shipping:

Delivery Time: 30 days after deposite
Package: nude packing or plywooden case


FAQ:

Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).

Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose.
Please contact us for more details.

Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.

Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.

Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.

Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
