60HZ 175KVA Cummins Diesel Power Generator Original Stamford Alternator

Place of Origin WUXI , China
Brand Name POWER FRIEND
Certification ISO9001/ISO14001/CE/PVOC Certification
Model Number PF-DC181S
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood case
Delivery Time 25 working day
Payment Terms L/C, T/T
Supply Ability 500 Set / Month
Product Details
Rated Power 132KW/165KVA Standby Power 145KW / 181KVA
Voltage 220/380v 230/400v 240/415v Engine DongFeng Cummins 6BTAA5.9-G12
Alternator Original Stamford Controller SMARTGEN 6120
MCCB ABB Or Delixi Cooling System Water Cooled
Generator Type Silent Type / Soundroof Type ATS SOCOMMEC
Warranty 1 Year Or 1000 Hours
High Light

industrial diesel generators

,

diesel genset

Leave a Message
Product Description

60HZ Cummins 170KVA DIESEL GENERATOR Scope of supply:



1. Engine / Alternator / Radiator unit on a common baseframe

2. Integral rubber anti- vibration mounts

3. Lead acid battery & industrial silencer

4. Exhaust flexible & industrial silencer

5. Standard factory load test and test report

6. 1 set of operating manuals

7.  Controller panel: Smartgen 6120

8.  With battery charger

9.  8 hours base fuel tank when 100% loading





150kva diesel power generator specification:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-DC181S
1.2 Prime at 50HZ, 40℃ ambient 132KW 165KVA
1.3 Standby at 50HZ, 40℃ ambient 145KW 181KVA
1.4 Rated Gen-set output 230/400V  50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 3100×1120×1580mm
1.7 Weight 1900kg
1.8 Fuel consumption 100% prime load 26.5L/h
1.9 Total heat radiated to ambient 76KW
1.10  Noise Level at 7m (Normal/Super) 72dB
1.11 Structure of Gen-set

The Gen-set adopt

 integrative structure,

 engine is fix on high strength

 steel basic frame, anti

vibration instrument between

the engine and basic frame,

 cooling fan have protecting

 cap, control cabinet and

 circuit breaker installed

 on Gen-set.

1.12 Control system (Optional)

Basic control panel or

Advanced control panel

 with automatically

start-up function

 and other function.

2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model 6BTAA5.9-G12
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration

Turbocharged

/Aftercooled

2.9 Cooling mode

Radiator cooled

 (enclose water)

2.10  Bore and stroke 102×120mm
2.11 Compression ratio 16.5:1
2.12 Displacement 5.9L
2.13 Engine Prime Power at 1500rpm 140KWm
2.14 Engine Standby Power at 1500rpm 154KWm
2.15 Battery capacity 190A/hr
2.16 Starting/Min temperature 7℃
2.17 Lubrication oil capacity 50L
2.18

Coolant  capacity  -

 radiator  and engine (40℃)

91L
2.19 Exhaust temp - full load prime 524℃
2.20  Exhaust gas flow - full load prime 4298m3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃  ambient) 10.6 m  3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air   intake   -   engine-   full   load prime 1555m3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type

#0 Diesel

(Natural temperature)

2.27 Filter system

Adopt  whole  changeable

 lubricating  oil, fuel

   filter and air filter

2.28 Exhaust system

Adopt  industrial  high

  efficiency  muffler

 and ripple pipe

3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model STAMFORD UCI274K
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10  Phase & wires 3 phase 12 wires
3.11 Rated currency 548.5A
3.12 Efficiency 0.937
3.13 Insulation class H
3.14 Protection class IP23

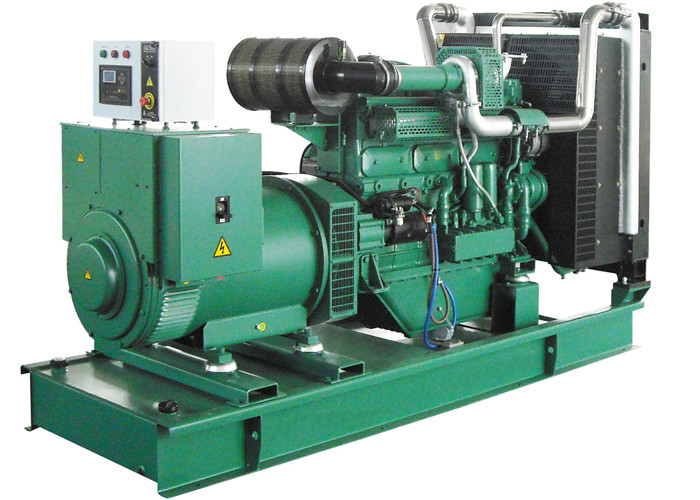

Photos of 170KVA CUMMINS silent power generators:



60HZ 175KVA Cummins Diesel Power Generator Original Stamford Alternator 0





Advantages:



1. Original Cummins engine

2. Original Stamford alternator

3. Super silent type

4. Big base fuel tank keep working 8 hours /24 hour and 72 hours



Cummins engine in stock photos:



60HZ 175KVA Cummins Diesel Power Generator Original Stamford Alternator 1
