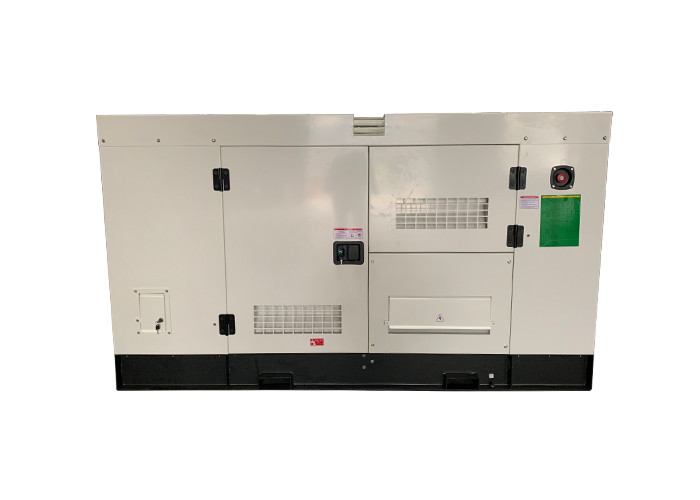

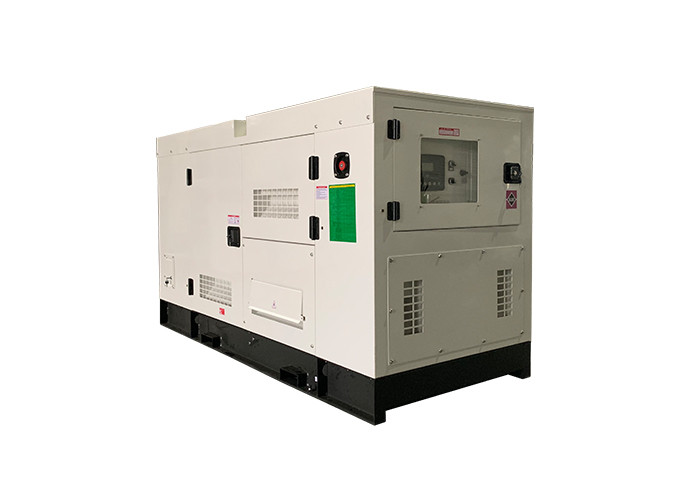

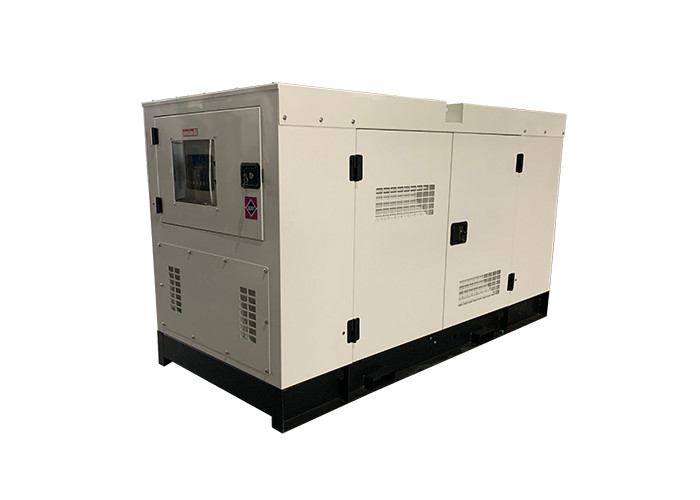

30kw / 38kva Cummins Diesel Generators With Stamford Alternator

Basic Information
Place of Origin: China (Mainland)
Brand Name: Power Friend
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: PF-DC41S
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Ply wooden case or Nude packing
Delivery Time: 15days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per months
Contact Now
Prime Power(KVA/KW): 30KW/38KVA Phase: Three
Standby Power: 33KW/41KVA Frequency: 50HZ
Rated Voltage: 230/400V Genset Structure: SILENT
Dimension: 2350×1000×1335mm Noise Level: 70dB At 7 Meters
Fuel Tank Capacity: 120L





30kw /38kva Cummins Engine With Stamford Alternator Diesel Generator



SPECIFICATION:



Technical specification
Genset Model PF-DC41S
Prime Power 30KW/38KVA
Standby Power 33KW/41KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 55A
Genset Structure SILENT
Dimension 2350×1000×1335mm
Net Weight 1160KG
Noise level 70dB at 7 meters
Fuel Tank Capacity 120L
Engine Model 4BT3.9-G1
Engine Features 4-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 102mm × 120mm
Displacement 3.9L
12-hour Power(kw) 36KW/1500
Fuel Consumption L/H 6.7L/H
Compression Ratio 16.5:1
Governor type Mechanical
Alternator Model STAMFORD / PI144J
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Smartgen 6120 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator
  • Guarantee:

Warraty period is one year or 1000 hours (depends on which occurs first ). If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.





Company advantages:
  • We are a powerful and unity sales team:

we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

  • We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
  • We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
  • With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.




30kw / 38kva Cummins Diesel Generators With Stamford Alternator













Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card

Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump

Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers

Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
