Cummins Industry Use 400kw 500KVA Silent Type Diesel Powered Generator

Basic Information
Place of Origin: WUXI city China
Brand Name: POWER FRIEND
Certification: ISO9001/ISO14001/CE
Model Number: PF-CC625
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: POLY WOODEN CASE
Delivery Time: 25 DAYS
Supply Ability: 500/SETS/ MONTH
Contact Now
Rated Power: 500kw/625kva Standby Power: 550kw/688kva
Engine: Original USA Cummins Alternator: Orginal Stamford / Leory Somer
Controler Panel: DeepSea / Smartgen Air Breaker: MCCB DLIXI 3 Pole Or 4 Pole
Warranty: 1 Year Or 1000 Hours Certificate: ISO/CE/ KENYA PVOC

Cummins Industry Use 400kw 500KVA Silent Type Diesel Powered Generator Set



Specification:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-C625
1.2 Prime at 50HZ, 40℃ ambient 500KW/625KVA
1.3 Standby at 50HZ, 40℃ ambient 550KW 688KVA
1.4 Rated Gen-set output 230/400V  50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 3550×1650×2150mm
1.7 Weight 5000kg
1.8 Fuel consumption 100% prime load 149.5L/h
1.9 Total heat radiated to ambient 131KW
1.10 Structure of Gen-set

The Gen-set adopt integrative structure,

engine is fix on high strength steel

 basic frame, anti vibration

instrument between the engine

 and basic frame, cooling fan

 have protecting cap, control

cabinet and circuit breaker installed

on Gen-set.

1.11 Control system (Optional)

Basic control panel or

Advanced control panel  with

automatically  start-up function and other function.

2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model KTAA19-G6A
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Aftercooled
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 159×159mm
2.11 Compression ratio 13.0:1
2.12 Displacement 19L
2.13 Engine Prime Power at 1500rpm /
2.14 Engine Standby Power at 1500rpm 610KWm
2.15 Battery capacity 190A/hr
2.16 Starting/Min temperature 7℃
2.17 Lubrication oil capacity 50L
2.18 Coolant  capacity  -  radiator  and engine (40℃) 91L
2.19 Exhaust temp - full load prime 576℃
2.20 Exhaust gas flow - full load prime 7452m3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃  ambient) 15 m  3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air   intake  -  engine -  full load prime 2563m3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system

Adopt  whole  changeable  lubricating

 oil, fuel    filter and air filter

2.28 Exhaust system

Adopt  industrial  high  efficiency

 muffler and ripple pipe

3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Stamford/HCI544E
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 1082.6A
3.12 Efficiency 0.933
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 1950kg

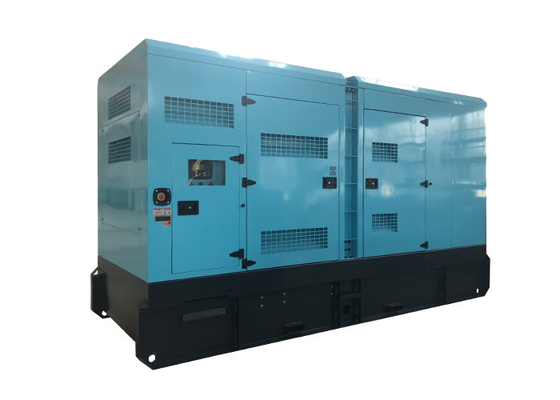

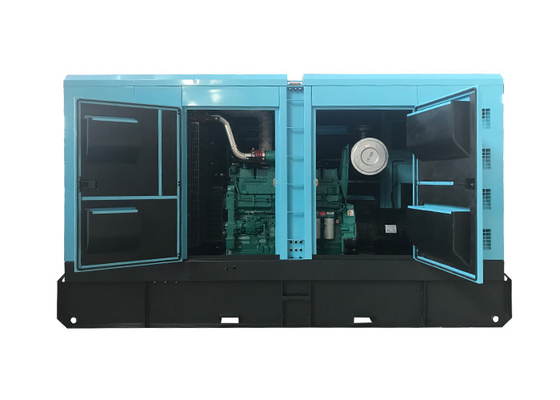

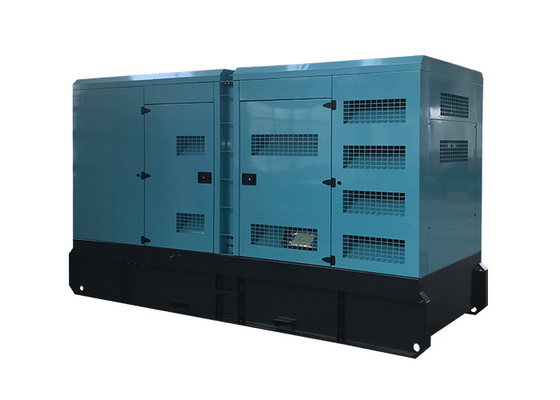

Cummins Industry Use 400kw 500KVA Silent Type Diesel Powered GeneratorCummins Industry Use 400kw 500KVA Silent Type Diesel Powered Generator

Description:



1. Power Range: 20-2500kw

2. Engine: DCEC Cummins, CCEC Cummins, USA Cummins

3. Alternator: Genuine Stamford, Marathon, Meccalte, etc

4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing,

5. ATS is optional

6. Type: Open type, Soundproof type, Trailer type, Container type, etc

      7. Color: Can be customized



Applications:



1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6. Standby power or main power, indoor or outdoor using.



Competitive Advantage:



1. Full power range.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base–-frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.



Packaging & Shipping

Delivery Time: 30 days after deposit, By Sea

Package: nude packing or plywooden case

package-big generator.jpg



FAQ:
1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
2. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
3. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
4. Can the generators be customized?
Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
5. Can you use our logo?
Yes. For mass orders, we can use customer's logo instead of ours.
