USA 220KW 275KVA Mute Cummins Diesel Generator With Electric Start

Basic Information
Place of Origin: China, Wuxi
Brand Name: Power Friend
Certification: CE, ISO9001
Model Number: PF-CC303S
Minimum Order Quantity: 1 sets
Price: negotiation
Packaging Details: ply wooden case, plastic
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 400 sets
Contact Now

USA 220KW 275KVA Mute Cummins Diesel Generator With Electric Start



Genset Spes:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-CC303
1.2 Prime at 50HZ, 40℃ ambient 220KW 275KVA
1.3 Standby at 50HZ, 40℃ ambient 242KW 303KVA
1.4 Rated Gen-set output 220/380V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 3000×1040×1655mm(open)
3900×1400×2000(Silent)
1.7 Weight 2600/3400kg
1.8 Fuel consumption 100% prime load 61L/h
1.9 Total heat radiated to ambient 66KW
1.10 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.11 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model NTA855-G1A
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Aftercooled
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 140×152 mm
2.11 Compression ratio 14.5:1
2.12 Displacement 14L
2.13 Engine Prime Power at 1500rpm 261KWm
2.14 Engine Standby Power at 1500rpm 291KWm
2.15 Battery capacity 127A/hr
2.16 Starting/Min temperature 7℃
2.17 Lubrication oil capacity 38.6L
2.18 Coolant capacity - radiator and engine (40℃) 60.6L
2.19 Exhaust temp - full load prime 484℃
2.20 Standard exhaust pipe diameter 127mm
2.21 Exhaust Gas Flow (After Turbine) 826 L/H
2.22 Air to Fuel Ratio 27.3 : 1
2.23 Heat Radiation 33KW
2.24 Standard Air intake temp 25℃
2.25 Fuel type #0 Diesel (Natural temperature)
2.26 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.27 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1 Alternator Model UP4D
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 220/380V 50Hz
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 417.8A
3.12 Efficiency 0.927
3.13 Insulation class H
3.14 Protection class IP22-23
3.14 Weight 975kg
4. SPECIFICATIONS OF CONTROLLER
  Model GU641B
HARSEN Auto & digital control panel,
The panel provides full power monitoring and protection facilities.
All operating parameters LCD display
Auto Main Failure funtion is available

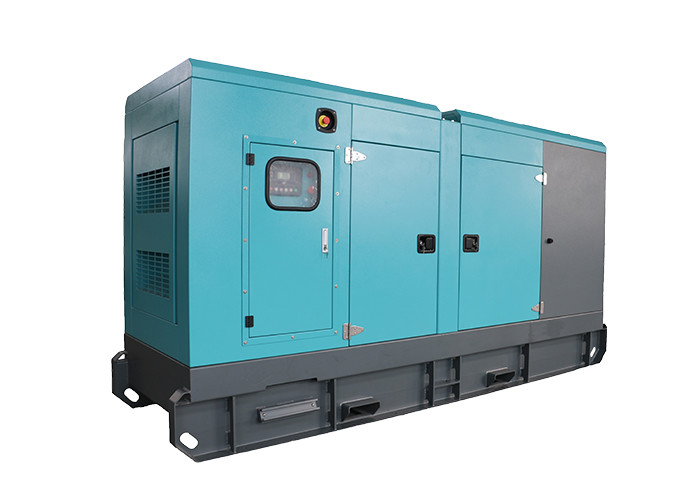

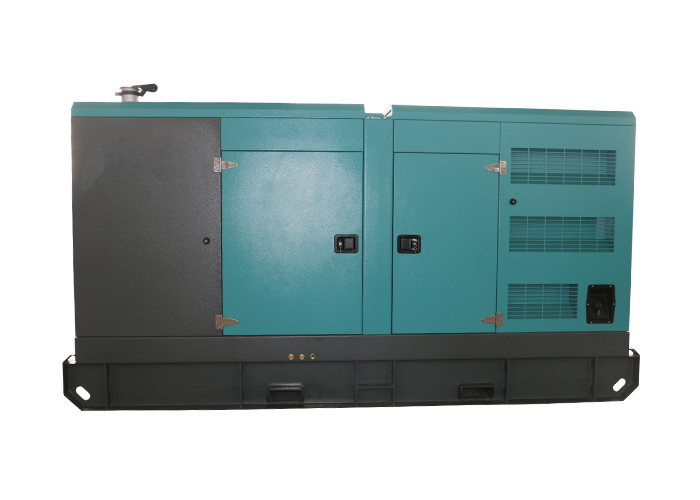

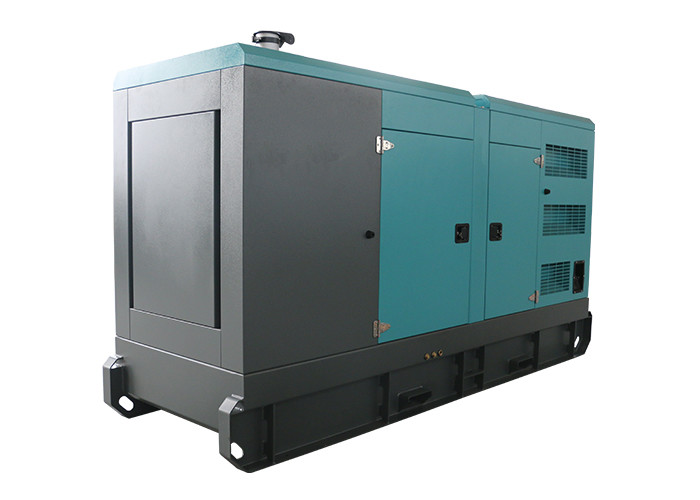

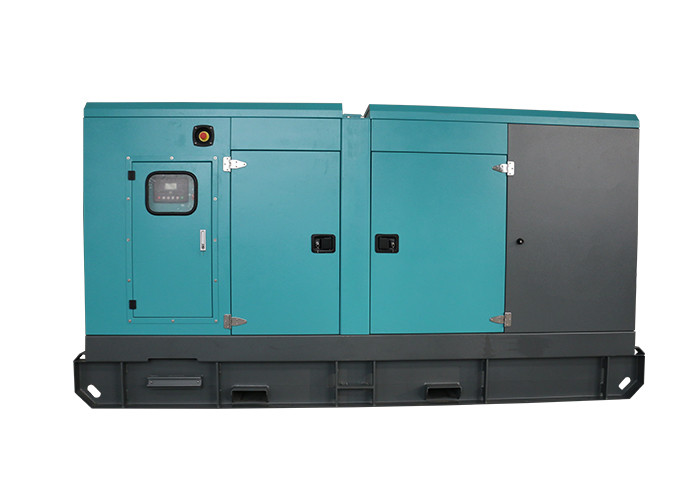

Genset Photo:

USA 220KW 275KVA Mute Cummins Diesel Generator With Electric Start









Company Details:



JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:

1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
