Trailer Type Silent Generators 64kw 80kva Cummins Diesel Movable With Wheels

Basic Information
Place of Origin: China, Wuxi
Brand Name: Power Friend
Certification: CE, ISO
Model Number: PF-DC80T
Minimum Order Quantity: 1 sets
Price: negotiation
Packaging Details: ply wooden case, plastic
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 400 sets
Contact Now

Trailer Type Silent Generators 64kw 80kva Cummins Diesel Movable With Wheels​



Standard Accessory

Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Rain Cover, Battery Charger, Operation manual and document



Optional Accessory

Circuit breaker, Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Fuel-water separator,ATS & paralleling system, Soundproof Canopy and Moving Trailer.



Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Cummins Model List:

Genset Model Prime Power Standby Power Engine
KVA KW KVA KW Model NO.Cylinder Governor
PF-DC20 20 16 22 17.6 4B3.9-G1 4.L M
PF-DC25 25 20 27.5 22 4B3.9-G1 4.L M
PF-DC30 30 24 33 26.4 4BT3.9-G1 4.L M
PF-DC38 37.5 30 41.25 33 4BT3.9-G1 4.L M
PF-DC40 40 32 44 35.2 4BT3.9-G1 4.L M
PF-DC50 50 40 55 44 4BTA3.9-G2 4.L E
PF-DC60-1 60 48 66 52.8 4BTA3.9-G2 4.L E
PF-DC60-2 60 48 66 52.8 4BTA3.9-G11 4.L E
PF-DC63 62.5 50 68.75 55 4BTA3.9-G2 4.L E
PF-DC73 72.5 58 80 64 4BTA3.9-G11 4.L E
PF-DC80 80 64 88 70.4 6BT5.9-G2 6.L E
PF-DC100 100 80 110 88 6BT5.9-G2 6.L E
PF-DC113 112.5 90 123.75 99 6BTA5.9-G2 6.L E
PF-DC125 125 100 137.5 110 6BTAA5.9-G2 6.L E
PF-DC150-1 150 120 165 132 6BTAA5.9-G12 6.L E
PF-DC150-2 150 120 165 132 6CTA8.3-G2 6.L E
PF-DC188 187.5 150 206.25 165 6CTA8.3-G2 6.L E
PF-DC200 200 160 220 176 6CTAA8.3-G2 6.L E
PF-DC225 225 180 247.5 198 6LTAA8.9-G2 6.L E
PF-DC250-1 250 200 275 220 6LTAA8.9-G2 6.L E
PF-DC250-2 250 200 275 220 6LTAA8.9-G3 6.L E
PF-DC375 375 300 412.5 330 6ZTAA13-G3 6.L E
PF-DC400 400 320 440 352 6ZTAA13-G2 6.L E
PF-DC438 437.5 350 480 384 6ZTAA13-G2 6.L E
PF-DC450-1 450 360 495 396 6ZTAA13-G4 6.L E
PF-DC450-2 450 360 495 396 QSZ13-G2 6.L ECU
PF-DC500 500 400 550 440 QSZ13-G3 6.L ECU



Genset details:

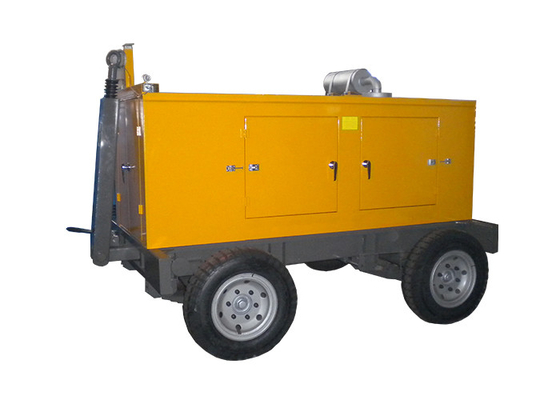

Trailer Type Silent Generators 64kw 80kva Cummins Diesel  Movable With Wheels

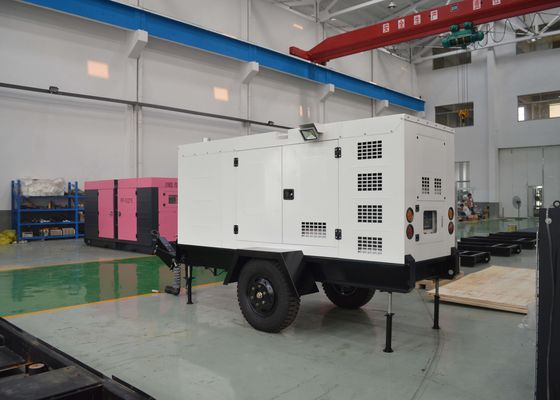

Trailer Type Silent Generators 64kw 80kva Cummins Diesel  Movable With Wheels



Our advantages:

1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



 Tag: Trailer Mounted generator, mobile diesel generator, cummins diesel generator
