|Model:||PF-DC110S||Prime Power:||80KW 100KVA|
|Cooling System:||Water Cooled||Standby Power:||88KW 110KVA|

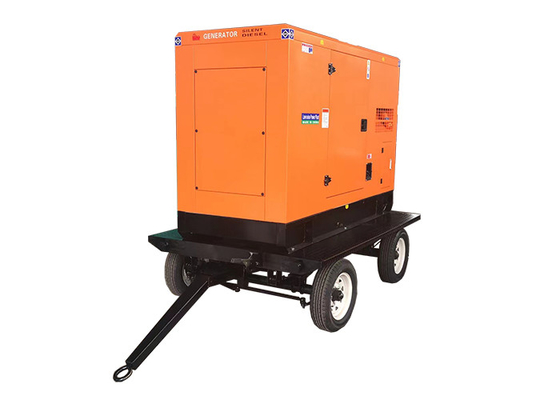

Flexiable Trailer Generator 100kva Cummins Diesel Generator 1800 Rpm For Project
|SPECIFICATIONS OF GEN-SET|
|1.2||Prime at 50HZ, 40℃ ambient||80KW 100KVA|
|1.3||Standby at 50HZ, 40℃ ambient||88KW 110KVA|
|1.4||Rated Gen-set output||230/400V 50Hz|
|1.5||Rated Relative humidity||≤ 60 %|
|1.8||Fuel consumption 100% prime load||18L/h|
|1.9||Total heat radiated to ambient||17KW|
|2. SPECIFICATIONS OF ENGINE|
|2.6||Fuel spray pattern||PT direct injection|
|2.7||start-up method||24V, electric|
|2.9||Cooling mode||Radiator cooled (enclose water)|
|2.10||Bore and stroke||102×120 mm|
|2.13||Engine Prime Power at 1500rpm||86KWm|
|2.14||Engine Standby Power at 1500rpm||92KWm|
|2.17||Lubrication oil capacity||16L|
|2.18||Coolant capacity - radiator and engine (40℃)||28L|
|2.19||Exhaust temp - full load prime||498℃|
|2.20||Exhaust gas flow - full load prime||1020m 3/h|
|2.21||Exhaust gas back pressure max||76mmHg|
|2.22||Air flow - radiator (40℃ ambient)||2.1 m 3/s|
|2.23||Pusher fan head (duct allowance) 40℃||10mmH 2O|
|2.24||Air intake - engine- full load prime||248m 3/h|
|2.25||Standard Air intake temp||25℃|
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Rain Cover, Battery Charger, Operation manual and document
Circuit breaker, Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Fuel-water separator,ATS & paralleling system, Soundproof Canopy and Moving Trailer.
Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
