1000KW Cummins Diesel Generator container canopy power plant with ATS

China 1000KW Cummins Diesel Generator container canopy power plant with ATS supplier
1000KW Cummins Diesel Generator container canopy power plant with ATS supplier 1000KW Cummins Diesel Generator container canopy power plant with ATS supplier 1000KW Cummins Diesel Generator container canopy power plant with ATS supplier

Large Image :  1000KW Cummins Diesel Generator container canopy power plant with ATS

Product Details:

Place of Origin: WUXI city China
Brand Name: Cummins diesel generator
Certification: ISO9001/ ISO14001 /CE / OEM
Model Number: PF-CC1375

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: with poly bag
Delivery Time: 45 days
Contact Now
Detailed Product Description
Generator Type: 40 Foot Container Canopy Engine Model: Cummins KTA38-G5
Alternator: STAMFORD / MECC ALTE Controller: DEEPSEA / SMARTGEN
Fuel Tank: 6 Hours At 100% Loading Certificate: ISO9001/ISO14001/CE/PVOC
Canopy: Standard Shipping Container 40 Foot Container Option: Air Breaker Cabinet / Battery Charger / Fire Hydrant

Description:


1. Rated power: 1000KVA / 800KW

2. Standby power: 1100KVA / 880KW

2. Engine: Cummins / KTA38-G5

3. Alternator: Stamford LVI634E

4. Controller: Deepsea or Smartgen

5. Type: Open type, super silent type, weatherproof type, Trailer type



Applications:

1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.





ABOUT OF 1000KVA CUMMINS CONTAINER GENERATOR:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-CC1100
1.2 Prime at 50HZ, 40℃ ambient 800kW 1000KVA
1.3 Standby at 50HZ, 40℃ ambient 880kW 1100KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 6100×2100×3050mm
1.7 Weight 8950kg
1.8 Fuel consumption 100% prime load 191L/h
1.9 Total heat radiated to ambient 163KW
1.10 Noise Level at 7m (Normal/Super) 78/70dB
1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Origin Cummins motor
2.2 Engine Model KTA38-G5
2.3 Governor/Class Electrical
2.4 Cylinder NO. 12
2.5 Engine build Vee
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Aftercooled
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 159×159 mm
2.11 Compression ratio 13.9:1
2.12 Displacement 38 L
2.13 Engine Prime Power at 1500rpm 880KWm
2.14 Engine Standby Power at 1500rpm 970KWm
2.15 Battery capacity 254A/hr
2.16 Starting/Min temperature 7℃
2.17 Lubrication oil capacity 135L
2.18 Coolant capacity - radiator and engine (40℃) 308L
2.19 Exhaust temp - full load prime 499℃
2.20 Exhaust gas flow - full load prime 10663m 3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃ ambient) 15 m 3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air intake - engine- full load prime 4104m 3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.28 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model original Stamford/ LVI634E
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 1443.4A
3.12 Efficiency 0.942
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 2190kg

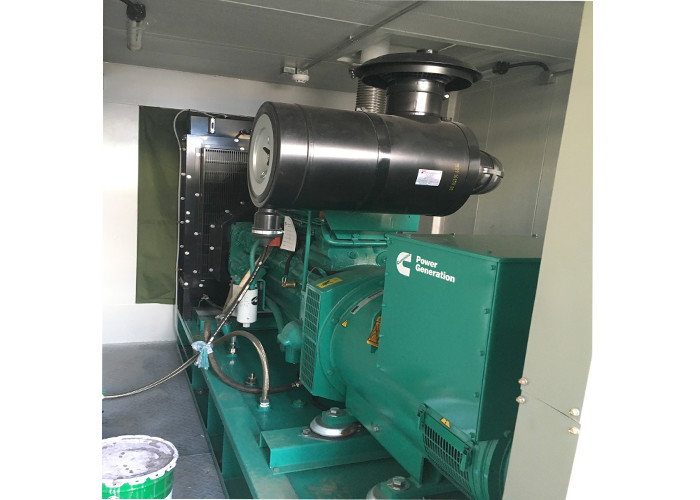

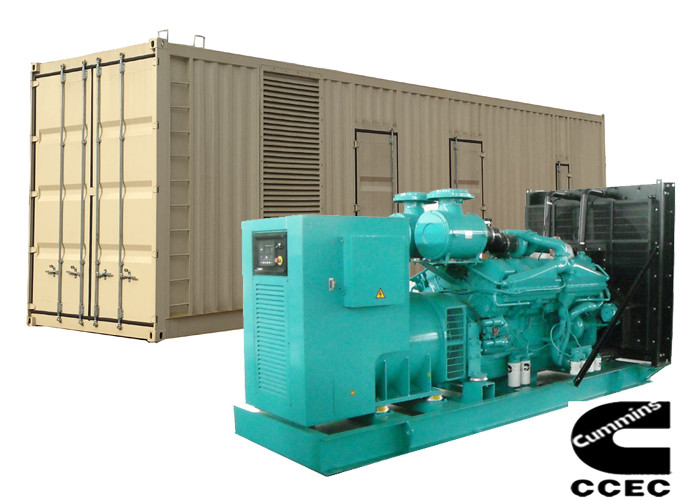

Container type photos:



 1000KW Cummins Diesel Generator container canopy power plant with ATS
