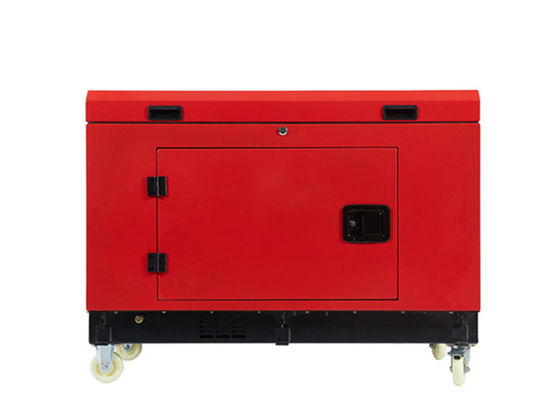

Air Cooled 10 Kva Portable Diesel Power Generator Soundproof Genset Red Color

Place of Origin WUXI, CHINA
Brand Name POWER FRIEND
Certification ISO9001/ ISO14001 / CE / SONCAP
Model Number PD10TS
Minimum Order Quantity 1 set
Price TBD
Packaging Details poly wooden case or plastic poly
Delivery Time 25 work days
Supply Ability 250 sets / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model PD10TS Certificate CE/ISO9001
Power Factor 0.8/1 Insulation Class H
Protection Class IP23 Warranty 12 Months/1000 Hours
Noise Level 72dB At 7 Meters Fuel Tank 8 Hours
Generator Type Silent Type /open Type. Both With Wheels Cold Method Air Cooling
Control Panel Digital Generator Engine 2V86
High Light

industrial diesel generators

,

diesel genset

Leave a Message
Product Description



Air cooled 10 kva portable diesel generator soundproof genset



  Model NO. PD10T3
Generator
set
Rated frequency(Hz) 50/60
Rated voltage(V) 400/230V
Rated current(A) 14.4 16.3
Rated output power(kVA) 8KVA/9KVA
Max output power (kVA) 9KVA/10KVA
Rated rotation speed(rpm) 3000/3600
DC output 12V 8.3A
Power factor(cosφ) 1
Phase number 3 phase
Noise level[dB(A)@7m] 75
Overall dimension(L*W*H)[mm] 1065x655x900
Net weight(kg) 208
Engine Engine type 2V86
Structure type 2 cylinder, in-lined,4-stroke,
air cooled, direct injection
Displacement[ml(cu. in)] 418
Engine speed(rpm) 3000/3600
Compression ratio 19:1
Rated output power[kW/rpm] 14.4/3000 , 15.3/3600
Lubrication system Pressure splashed
Lube oil brand Above CD SAE 10W-30,15W-40
Starting system 12 V Electric starter
Starting motor capacity 12V 0.8KW
Charging generator capacity 12V 3A
Battery capacity 12V 36AH
Fuel consumption rate[g/kW.h] 3000rpm: 270 , 3600rpm: 290
Fuel type Diesel 0#(summer)or-10#(winter),-35#(cold)
Fuel tank capacity(L) 25
Continuous running time(H) 8



Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.

Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.



More types for Air cooled 10 kva portable diesel generator soundproof genset






portable  use



portable packing








Panel




ATS

Features of ATS

  • Automatically transfer and re-transfer load from main power to gen-power without operator intervention.(Both Automaic and manual operation.)
  • Available from 40-3200A, better protection for 4 pole switch.
  • Showing generator set/mains availability and switch position.
  • Drip Installation:Wall-mounted & Floor standing.
  • ATS installed inside the canopy:this is optional for the range smaller than 100Amp.

Features of Paralleling System

  • PLC centralized logic control
  • Easy to extend the volume to satisfy the need of load increase
  • Synchronizer auto capture and parallel
  • Load divider automatically divide load according to proportion
  • Auto add and lessen the number of sets according to load capacity
  • Short circuit, overload and reverse power protection
  • Max.32 paralleling sets
  • Rotate operation of many sets



Our Services
Our services
  • After-sales:

Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.

  • Guarantee:

Warraty period is one year or 1000 hours (depends on which occurs first ). If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.

  • Free training:

We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.



Company advantages
  • We are a powerful and unity sales team:

we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

  • We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
  • We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
  • With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.

contact



Company Information




Our Workshop

diesel genset with 150-750kva engine



Major projects at home and abroad

Major engineering.jpg

Other Products

Air Cooled 10 Kva Portable Diesel Power Generator Soundproof Genset Red Color 6

Trade shows

Our company has participated in several exhibitions, such as Canton Fair(Guangzhou) and many foreign trade shows.

trade show 2.jpg

Packaging & Shipping

Delivery Time: 30 days after deposite

Package: nude packing or plywooden case

150-750kva diesel genset by Italian FPT IVECO (250kva)

Engine Series Power

engine series power.jpg

FAQ

Q1: What is your warranty period?

A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).



Q2: Does your generator have global warranty?

A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.



Q3: What is your payment terms?

A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C Irrevocable L/C at sight.



Q4: What is your delivery time?

A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.



Q5: Can the generators be customized?

A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.



Q6: Can you use our logo?

A6: Yes. For mass orders, we can use customer's logo instead of ours.
