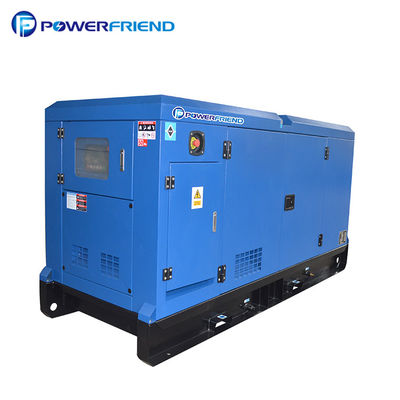

Super Silent Diesel Standby Electric Generators 64KW 80KVA Power

1 set
MOQ
US $7764 / Set
Price
Super Silent Diesel Standby Electric Generators 64KW 80KVA Power
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Brand: FPT
Prime Power: 64KW 80KVA
Genset Model: GP88FPS
Standby Power: 70KW 88KVA
Engine Model: FPT FPT/NEF45SM3
Rated Current(A): 115.5 (A)
Warranty: 1 Year Or 1000 Hours
Certificates: CE, ISO9001
High Light:

water cooled diesel generator

,

rental power generators

Basic Infomation
Place of Origin: China(Mainland)
Brand Name: GPRO
Certification: ISO9001/ CE
Model Number: GP88FPS
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 500 sets / Month
Product Description

Super Silent Diesel Standby Electric Generators 64KW 80KVA Power



Technical specification
Genset Model GP88FPS
Prime Power 64KW/80KVA
Standby Power 70KW/88KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 115.5A
Genset Structure SILENT
Dimension 2650×1020×1360mm
Net Weight 1450KG
Noise level 70 dba @ 7 meters
Engine Model FPT FPT/NEF45SM3
Engine Features 4-cylinder,4 stroke,natural
Bore * Stroke 104mm × 132mm
Displacement 4.5L
12-hour Power(kw) 73.3KW/1500
Fuel Consumption L/H 19.4L/H
Compression Ratio 17.5:1
Governor type Mechnical
Alternator Model MECC ALTE/ECP34-1S/4
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling



Super Silent Diesel Standby Electric Generators 64KW 80KVA Power 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!

Super Silent Diesel Standby Electric Generators 64KW 80KVA Power 1
