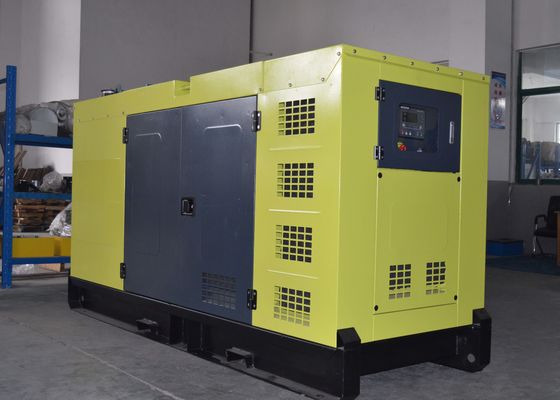

Industry Use Iveco Diesel Generator 60KW 75KVA High Performance
Product describition
Technical specification | |
Genset Model | GP83FPS |
Prime Power | 60KW/75KVA |
Standby Power | 66KW/83KVA |
Phase Number | 3 |
Power Factor | 0.8 |
Rated Voltage | 230/400V |
Frequency | 50 HZ |
Rated Current | 108.2A |
Genset Structure | SILENT |
Dimension | 2650×1020×1360mm |
Net Weight | 1450KG |
Noise level | 70 dba @ 7 meters |
Engine Model | FPT IVECO/NEF45SM2A |
Engine Features | 4-cylinder,4 stroke,natural aspirated |
Bore * Stroke | 104mm × 132mm |
Displacement | 4.5L |
12-hour Power(kw) | 66KW/1500 |
Fuel Consumption L/H | 11.3L/H |
Compression Ratio | 17.5:1 |
Governor type | Mechnical |
Alternator Model | MECC ALTE/ECP34-1S/4 |
Excitation Mode | brushless self-excited |
Insulation Class | H |
Protection Class | IP23 |
Construction Type | SAE Disc-coupling |
Controler Panel | Deepsea/ ComAp/ Smartgen |
Safe and reliable electricity transmission network solutions !
Standard Supply Scope:
1.Diesel engine 2.Alternator 3.Digital control panel 4.Steel base frame 5.Output circuit breaker
6.40℃ water cooled radiator 7.Starting batteries and battery connect wires
8.Silencer and flexible exhaust hose
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump
7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Why choose us:
Description:
The genset has the characteristics of high precision,
high dynamic performance,low voltage waveform distortion,high efficiency,reliable operation,long
service life and good economic performance.The genset is equipped with a maintenance-free battery start system.Users only need to inject oil and coolant.After turning on the negative switch,the users can start the unit and output the power,which greatly improves the convenience of the use.
Competitive Advantage:
1.GPRO is devoted to the R&D and manufacturing o f diesel generator sets sice n2010.
2.The marketing center is located in Wuxi Steel Union governor's buildinghas .
3.GPRO is maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroysomer, Stamford, and Marathon etc.
Package & Delivery & Payment
Package: Plastic Package.
Payment: By 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.
Delivery: 25 days after we get the down payment.
Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of12 months from date of despatch or 1000 running hours from date of commissioning whicheverdate occurs the sooner.
