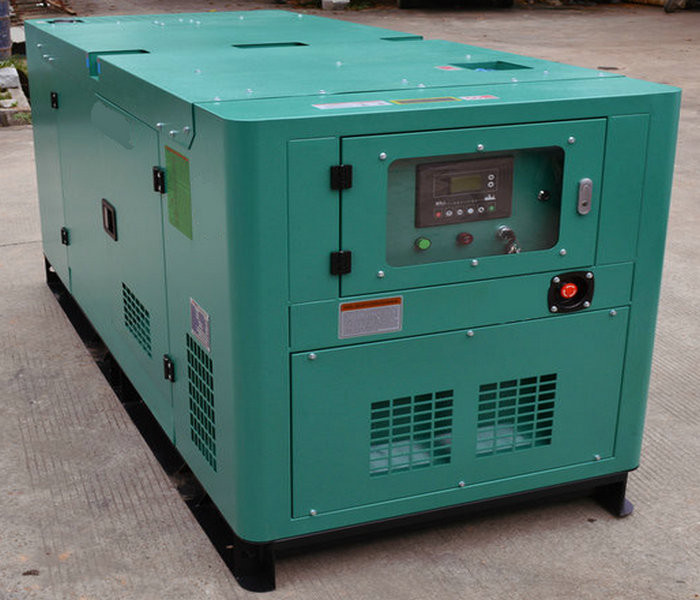

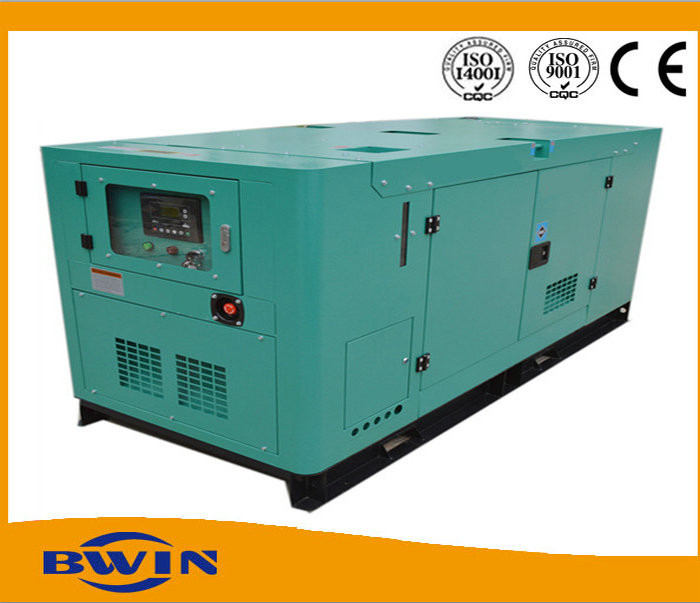

30KW Meccalte cummins diesel genset with CE ISO Deepsea Controller
Model: PF-DC38
|
1. Specification of Genset |
||
|
Gensets Model |
PF-DC38 |
|
|
Prime Power |
30kw |
|
|
Rated Voltage |
380/220V |
|
|
Rated Frequency (HZ) |
50 |
|
|
Rated Speed |
1500rpm |
|
|
Power Factor |
0.8(lagging) |
|
|
Dimensions (mm) (L×W×H) |
1710x700x1340 |
|
|
Genset Weight (kg) |
960 |
|
|
2. Specification of Diesel Engine |
||
|
Engine Brand |
Cummins |
|
|
Engine Model |
4BT3.9-G1 |
|
|
Number of Cylinders |
4 |
|
|
Cylinder Arrangement |
Vertical in-line |
|
|
Cycle |
Four stroke |
|
|
Aspiration |
Turbocharged, Water cooling |
|
|
Fuel System |
PT type fuel pump, EFC |
|
|
Bore×Stroke (mm×mm) |
159 x 159 |
|
|
Displacement (Liter) |
50.3 |
|
|
Compression Ratio |
13.9:1 |
|
|
Speed Governor |
Electronic |
|
|
Cooling System |
Forced Water Cooling Cycle |
|
|
Total lubrication System Capacity (L) |
95 |
|
|
Fuel Consumption at 100% Load (L/H) |
57 |
|
|
Starting Method |
DC24V electrical starting |
|
|
3. Specification of Alternator |
||
|
Alternator Brand |
Stamford / Leorysomer |
|
|
Alternator Model |
PI 144J |
|
|
Number of Phase |
3 |
|
|
Connecting Type |
3 Phase and 4 Wires |
|
|
Number of Bearing |
1 |
|
|
Protection Grade |
IP21 |
|
|
Altitude |
≤1000m |
|
|
Exciter Type |
Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
|
|
Insulation Class |
H |
|
|
Telephone Influence Factor (TIF) |
≤50 |
|
|
THF |
≤2% |
|
|
Voltage Regulation, Steady State |
≤±1% |
|
|
Transient State Voltage |
≤-15%~+20% |
|
|
4. Specification of Control Panel (with Harsen Controller) |
||
|
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature,over speed, over load protection function. |
||
|
The features of Harsen controller: |
||
|
Harsen controller is a new generation automatic control module for single genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of genset for user or special assembly factory. |
||
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
