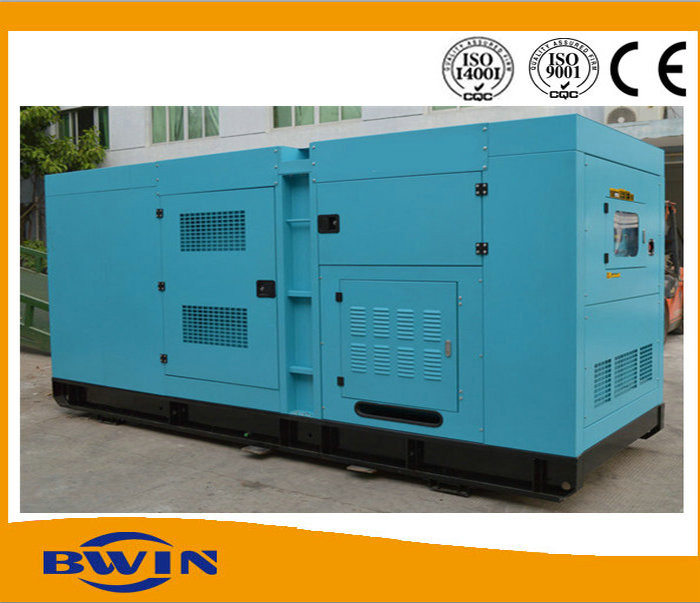

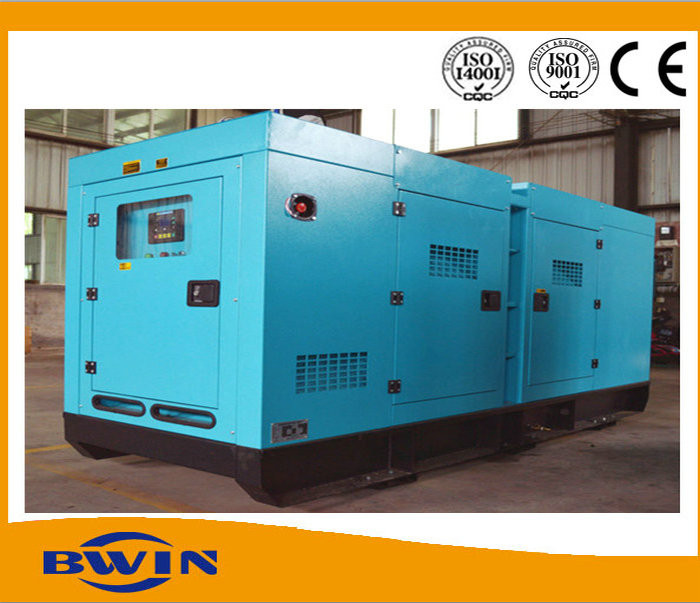

Power electric generating set 100kw 200kw 300kw genset silent generator set

1 SET
MOQ
Negotiation
Price
Power electric generating set 100kw 200kw 300kw genset silent generator set
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 100kw 200kw 300kw
Frequency: 50/60HZ
Voltage: 220v - 690v Optional
Engine: Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
Controller: Deepsea, Smartgen, Harsen For Optional
MCCB: ABB Or Delixi
Cooling System: Water Cooled
Genset Type: Open Type, Silent Type, Container Type, Trailer Type For Optional
ATS: Optional
High Light:

cummins diesel genset

,

emergency diesel generator

Basic Infomation
Place of Origin: Jiangsu of China
Brand Name: GPRO
Certification: ISO,CE Certification
Model Number: PF-DC125
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Product Description

Power electric generating set 100kw 200kw 300kw genset silent generator set​



Genset Model PF-DC125 PF-DC250 PF-DC375
Rated Power(KVA/KW) 125/100 250/200 375/300
Max Power(KVA/KW) 138/110 275/220 413/330
Rated Voltage(V) 400/230V
Engine Brand & Model 6BTAA5.9-G2 6CTAA8.9-G2 NTAA855-G7
Rated Speed 1500rpm
No. Cylinder 6L
Fuel Consumption (L/Hr) 24 62 101
Alternator Model UCI274D UCI274K HCI444FS
Type Brushless & self-excited, AVR regulation
Frequency 50Hz
Power Factor 0.8
Phase Number/Poles 3 Phase 4 wires
Demention (L*W*H) (mm) 2240*980*1515 2623*1130*1550 3300*1200*1950
Gross Weiht (kg) 1400 2300 4800
Insulation Grade H
Protection Grade IP23



Cummins / Stamford Genset Features:

1. Engine: Cummins industrial diesel engine

2. Heat Dissipation: Radiator 40°C max, fans are driven by belt, with safe guard

3. Protective Operation: Choice of manual/auto and AMF control panels and protection systems

4. Control Panel: Digital auto-start LED panel

5. Shakeproof: Anti Vibration Suspension Absorber

6. Safe Filter: Dry type air filter, fuel filter, oil filter

7. Breaker: Mould case circuit breaker

8. Power: 24V DC start motor and storage battery

9. Nozzle: Ripple flex exhaust pipe, exhaust siphon, flange, and muffler



Power electric generating set 100kw 200kw 300kw genset silent generator set 0

Power electric generating set 100kw 200kw 300kw genset silent generator set 1

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running

automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional.



Power electric generating set 100kw 200kw 300kw genset silent generator set 2

Power electric generating set 100kw 200kw 300kw genset silent generator set 3



Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.
