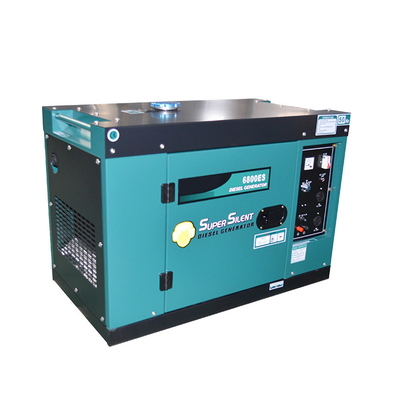

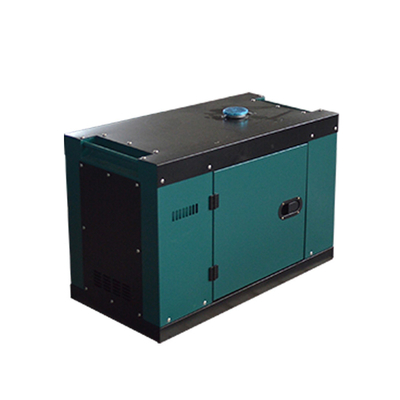

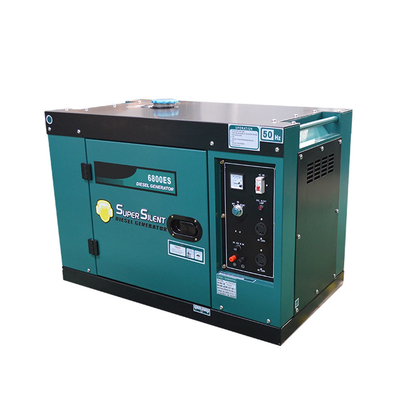

AC Single Phase 220V Small Portable Generators With Wheels Diesel Genset 5kva
-
High Light
silent portable generator
,small diesel generators
-
Output Power5kva
-
Frequency50/60HZ
-
Voltage220v - 690v Optional
-
Engine186/188 FAE
-
Alternator100% Copper
-
Cooling SystemAir Cooled
-
Genset TypeOpen Type, Silent Type
-
ATSOptional
-
Place of OriginJiangsu of China
-
Brand NameGPRO
-
CertificationISO,CE Certification
-
Model NumberPD6500T
-
Minimum Order Quantity1 SET
-
PriceNegotiation
-
Packaging DetailsCartons
-
Delivery Time15 - 20 working day
-
Payment TermsL/C, T/T
-
Supply Ability600 Set / Month
AC Single Phase 220V Small Portable Generators With Wheels Diesel Genset 5kva
AC Single phase 220V small portable generator with wheels diesel genset 5kva
| Genset | Model No. | PD6500 (Open type) | PD6500T(Silent type) |
| Rated frequency (Hz) | 50/60 | 50/60 | |
| Rated voltage (v) | 230 120/240 | 230 120/240 | |
| Rated output power(kW) | 5.0 6.0 | 5.0 6.0 | |
| Rated rotation speed(rpm) | 3000/3600 | 3000/3600 | |
| DC Output | 12v 8.3A | 12v 8.3A | |
| Power factor | 1 | 1 | |
| Phase number | Single phase | Single phase | |
| Noise level dB@7m | 85 | 75 | |
| Overall dimension (L*W*H)MM | 780x500x650 | 950x560x750 | |
| Net weight | 107 | 165 | |
| Engine | Engine type | 188FAE | 188FAE |
| Structure type |
Single cylinder , in lined 4 stroke, air cooled direct injection |
Single cylinder , in lined 4 stroke, air cooled direct injection |
|
| Bore * stroke mm | 86X72 | 86X72 | |
| Displacement ml | 418 | 418 | |
| Compression ratio | 19:01 | 19:01 | |
| Rated output(kw/rpm) | 5.9/3000 6.5/3600 | 5.9/3000 6.5/3600 | |
| Lubrication system | pressure splashed | pressure splashed | |
| Lue oil brand |
Above CD SAE 10W 30 15W 40 |
Above CD SAE 10W 30 15W 40 |
|
| Staring system | Recoil starter | 12V Electric starter | |
| Starting motor capacity | 12V 0.8KW | 12V 0.8KW | |
| Charging generator capacity | 12V 3A | 12V 3A | |
| Battery capacity | 12V 36AH | 12V 36AH | |
| Fuel consumption rate(g/kw.h) | 3000rpm 276,3600rpm 285 | 3000rpm 276,3600rpm 285 | |
| Fuel type | Diesel 0# or 10# 35# | Diesel 0# or 10# 35# | |
| Fuel tank capacity (L) | 15 | 15 | |
| Continuous Running time(H) | 8 | 8 |
Loading quanity for 20ft container is 72 units.
Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
If have any questions, please contact us. Your inquiry would be appreciated.
Our products are sold all over the world, you can rest assured.
