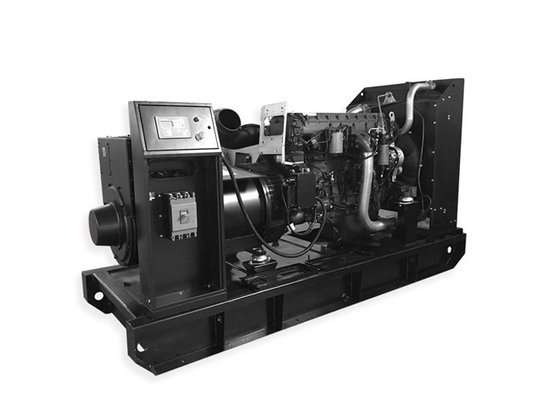

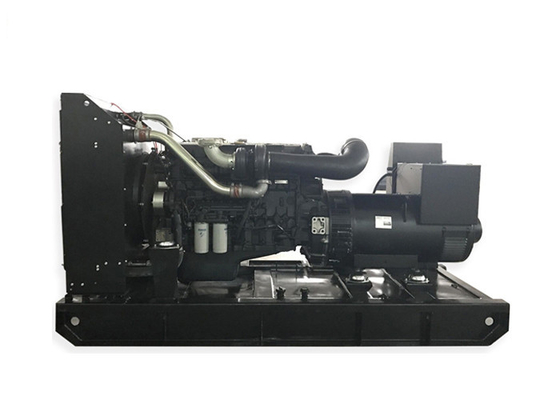

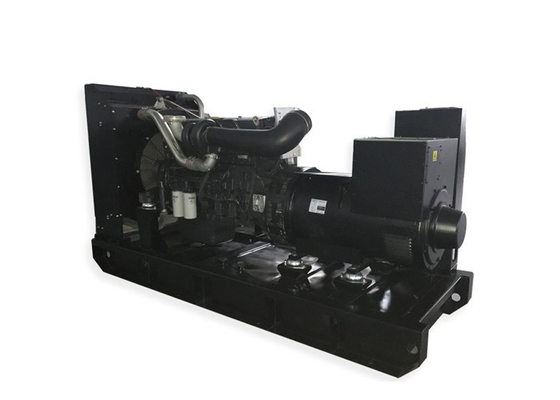

313KVA FPT Diesel Generator Open Type ComAp Controller Electric Start
| 1. SPECIFICATIONS OF SILENT TYPE GENERATOR |
| 1.1 |
Set Model |
GP344FP |
| 1.2 |
Prime at 50HZ, 40℃ ambient |
250KW 313KVA |
| 1.3 |
Standby at 50HZ, 40℃ ambient |
280KW 344KVA |
| 1.4 |
Rated Gen-set output |
230/400V 50Hz |
| 1.5 |
Rated Relative humidity |
≤ 60 % |
| 1.6 |
Dimension (L×W×H) |
2910×1000×1850mm |
| 1.7 |
Weight |
3065kg |
| 1.8 |
Fuel consumption 100% prime load |
70L/h |
| 1.9 |
Total heat radiated to ambient |
66KW |
| 1.10 |
Structure of Gen-set |
The Gen-set adopt integrative structure,
engine is fix on high
strength steel basic frame,
anti vibration instrument between
the engine and basic frame,
cooling fan have protecting cap,
control cabinet and circuit
breaker installed on Gen-set.
|
| 1.11 |
Control system (Optional) |
Basic control panel or
Advanced control panel
with automatically start-up
function and other function.
|
| 2. SPECIFICATIONS OF ENGINE |
| 2.1 |
Engine Brand |
FPT |
| 2.2 |
Engine Model |
C9 |
| 2.3 |
Governor/Class |
Electrical |
| 2.4 |
Cylinder NO. |
6 |
| 2.5 |
Engine build |
Line |
| 2.6 |
Fuel spray pattern |
PT direct injection |
| 2.7 |
start-up method |
24V, electric |
| 2.8 |
Aspiration |
Turbocharged/Aftercooled |
| 2.9 |
Cooling mode |
Radiator cooled (enclose water) |
| 2.10 |
Bore and stroke |
125×147 mm |
| 2.11 |
Compression ratio |
15.0:1 |
| 2.12 |
Displacement |
10.8L |
| 2.13 |
Engine Prime Power at 1500rpm |
282KWm |
| 2.14 |
Engine Standby Power at 1500rpm |
310KWm |
| 2.15 |
Battery capacity |
127A/hr |
| 2.16 |
Starting/Min temperature |
7℃ |
| 2.17 |
Lubrication oil capacity |
39L |
| 2.18 |
Coolant capacity - radiator and engine (40℃) |
49L |
| 2.19 |
Exhaust temp - full load prime |
485℃ |
| 2.20 |
Exhaust gas flow - full load prime |
3550m3/h |
| 2.21 |
Exhaust gas back pressure max |
76mmHg |
| 2.22 |
Air flow - radiator (40℃ ambient) |
7.0 m 3/s |
| 2.23 |
Pusher fan head (duct allowance) 40℃ |
13mmH 2O |
| 2.24 |
Air intake - engine - full load prime |
1350m3/h |
| 2.25 |
Standard Air intake temp |
25℃ |
| 2.26 |
Fuel type |
#0 Diesel (Natural temperature) |
| 2.27 |
Filter system |
Adopt whole changeable
lubricating oil, fuel
filter and air filter
|
| 2.28 |
Exhaust system |
Adopt industrial high
efficiency muffler
and ripple pipe
|
| 3. SPECIFICATIONS OF ALTENATOR |
| 3.1 |
Alternator Model |
Stamford/HCI444ES |
| 3.2 |
Alternator Type |
A.C. Synchronous |
| 3.3 |
Rated Voltage |
230/400V |
| 3.4 |
Rated Frequency |
50HZ |
| 3.5 |
Rated speed |
1500 RPM |
| 3.6 |
Voltage regulation mode |
Auto |
| 3.7 |
Alternator voltage regulation |
±0.5％ |
| 3.8 |
Exciting mode |
Brushless self exciting |
| 3.9 |
Power factor |
0.8 (lagging) |
| 3.10 |
Phase & wires |
3 phase 12 wires |
| 3.11 |
Rated currency |
469.1A |
| 3.12 |
Efficiency |
0.937 |
| 3.13 |
Insulation class |
H |
| 3.14 |
Protection class |
IP21 |
| 3.15 |
Single load step to NFPA110 |
100% |
| 3.16 |
Standards |
IEC34-1 |
| 3.17 |
Max. Ambient Temperature |
40℃ |
| 3.18 |
Min. Ambient Temperature |
- 20℃ |
| 3.19 |
Max. altitude |
1000m |
| 3.20 |
Weight |
1055kg |
Description:
1. Italy brand PFT FPT engine
2. Alternator: original Stamford
3. Controller: ComAp controller
4. Options: remote controller, synchronizing.
5. ATS is optional
6. Type: Soundproof type, weather proof, Trailer type
7. Color: Any color
8. Support OEM
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Low fuel consumption
2. Good quality engine and alternator
3. Fast delivery. Big quantity of Engines in stock.
4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
5. Use high standard of sponge to make soundproof.
6. The canopy design is user friendly, and easy for maintenance.
7. Pre and after sales service is provided.
8. 365 days, 24 hours after sale service
Advantages:
. We are a powerful and unity sales team:
. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
