Portable Small Welder Generator 190A Electric Start With Wheels And Handle
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power(Prime/Standby) | 1.7KW/2KW | Frequency | 50/60HZ |
|---|---|---|---|
| Current | 190A | Voltage | 220/230/240v |
| Engine | 186FAE 1 Cylinder 4 Stroke Engine | Alternator | 100% Copper |
| Controller | LCD Screen | Sound Level/db | Sound Level/db 70dB |
| Warranty | 1 Year Or 1000 Hours | Start Type | Electric Start |
| High Light | silent portable generator,small diesel generators |
||
Product Description
Diesel 1 cylinder engine for portable 190A welder generators moveable
190A Welder generator Specifications:
|
Genset |
Model No. |
6500EW (Open type) |
6500TW (Silent type) |
|
Rated frequency (Hz) |
50/60 |
50/60 |
|
|
Rated voltage (v) |
230 240 |
230 240 |
|
|
Rated current(A) |
7.4 7.8 |
7.4 7.8 |
|
|
Rated Output power(kW) |
1.7 1.8 |
1.7 1.8 |
|
|
Rated rotation speed(rpm) |
3000/3600 |
3000/3600 |
|
|
Power factor |
1 |
1 |
|
|
Phase number |
Single phase |
Single phase |
|
|
Noise level dB@7m |
75-77 |
85 |
|
|
Overall dimension (L*W*H)MM |
780x500x640 |
950x560x750 |
|
|
Net weight |
110 |
170 |
|
|
|
|
|
|
|
Engine |
Engine type |
186FAE |
186FAE |
|
Structure type |
Single cylinder , in lined 4 stroke, air cooled direct injection |
Single cylinder , in lined 4 stroke, air cooled direct injection |
|
|
Bore * stroke mm |
86X72 |
86X72 |
|
|
Displacement ml |
418 |
418 |
|
|
Compression ratio |
19:01 |
19:01 |
|
|
Rated output(kw/rpm) |
5.9/3000 6.5/3600 |
5.9/3000 6.5/3600 |
|
|
Lubrication system |
pressure splashed |
pressure splashed |
|
|
Lue oil brand |
Above CD SAE 10W 30 15W 40 |
Above CD SAE 10W 30 15W 40 |
|
|
Staring system |
12V Electric starter |
12V Electric starter |
|
|
Starting motor capacity |
12V 0.8KW |
12V 0.8KW |
|
|
Charging generator capacity |
12V 3A |
12V 3A |
|
|
Battery capacity |
12V 36AH |
12V 36AH |
|
|
Fuel consumption rate(g/kw.h) |
3000rpm 275,3600rpm 281 |
3000rpm 275,3600rpm 281 |
|
|
Fuel type |
Diesel 0# or 10# 35# |
Diesel 0# or 10# 35# |
|
|
Fuel tank capacity (L) |
15 |
12.5 |
|
|
Continuous Running time(H) |
8 |
7 |
Description:
Welder generator current capacity 190A , Generator power 1.7KW/2KW
Dimension 780x500x640mm Net Weight 110KGS
Quantity for 20 foot container 112 sets
Quantity for 40 foot container 240 sets
Applications:
1. Industrial use
2. Outside working where need welder
Competitive Advantage:
1. Use 100% copper alternator
2. 24 hours/7 days after sale service
3. Short delivery time
4. Stable quality warranty

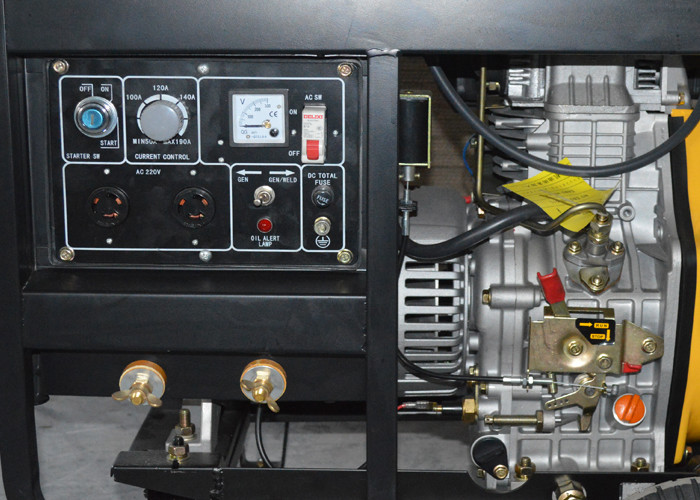

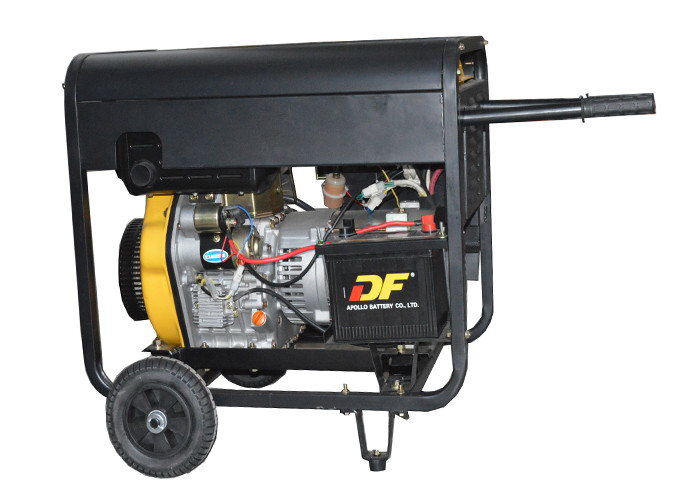

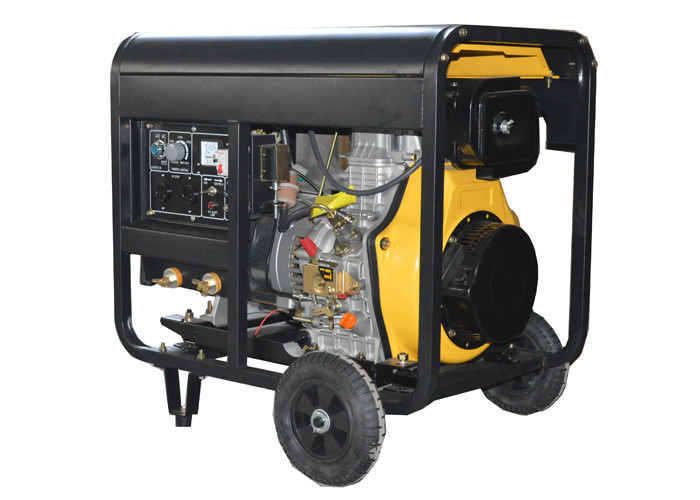

Portable 190A welder generators photos:
