Super Silent Denyo Silent FAWDE 20KW 25kva 60hz Diesel Generator Set
-
High Light
diesel silent generator
,industrial diesel generators
-
Power(Prime/Standby)25KVA / 20 KW
-
Frequency60HZ
-
Current50A
-
Voltage220/380V
-
EngineFAWDE
-
ControllerSmartgen / DeepSea 3110
-
MCCBDelixi /ABB
-
Sound Level/db66dB 7 Meter
-
Warranty1 Year Or 1000 Hours
-
AlternatorOriginal Stamford
-
Place of OriginWUXI
-
Brand NameGPRO
-
CertificationISO9001/ISO14001/CE/PVOC
-
Model NumberPF-FW28XS
-
Minimum Order Quantity1 set
-
PriceNegotiation
-
Packaging Detailspoly wooden case
-
Delivery Time25 days
-
Supply Ability500 sets / Month
Super Silent Denyo Silent FAWDE 20KW 25kva 60hz Diesel Generator Set
25kva Denyo ultra silent generator
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-FW28S |
| 1.2 | Prime at 50HZ, 40℃ ambient | 20KW 25KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 22KW 27.5KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 1500*700*1050, Silent: 2000*940*1200 |
| 1.7 | Weight | Open: 700kg, Silent: 1100kg |
| 1.8 | Fuel consumption 100% prime load | 7 |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FAWDE |
| 2.2 | Engine Model | 4DW92-35D |
| 2.3 | Governor/Class | Mechanical or Electronic |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 12V, electric |
| 2.8 | Air intake type | Turbocharged |
| 2.9 | Cooling mode | Water Cooling |
| 2.10 | Bore and stroke | 90×100 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 2.54 |
| 2.13 | Engine Prime Power at 1500rpm | 26KWm |
| 2.14 | Engine Standby Power at 1500rpm | 29KWm |
| 2.15 | Lubrication oil capacity | 8L |
| 2.16 | Oil consumption | 0.04 |
| 2.17 | Dry weight of base | 240Kg |
| 2.18 | Dry weight of Gen Pac | 260Kg |
| 2.19 | Overall dimension(G.P) | 1120×810×760(mm) |
| 2.2 | Overall dimension(base) | 750×600×735(mm) |
| 2.21 | 27℃ air consumption ( m³/ min) | 2.1 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR | ||
| 3.1 | Alternator Model | Stamford/PI 144E |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 39.7A |
| 3.12 | Efficiency | 0.858 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 150kg |
Description:
1. Original FAWDE ENGINE
2. Alternator:Stamford
3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.
4. ATS cabinet
5. Type: Silent type, weather proof, Trailer type
Applications:
1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake
Competitive Advantage:
1. User friendly with low emissions
2. More power reserve, better performance
3. Fast delivery. Big quantity of Engines in stock.
4. Good parts commonality
5. Ultra silent , low noise level

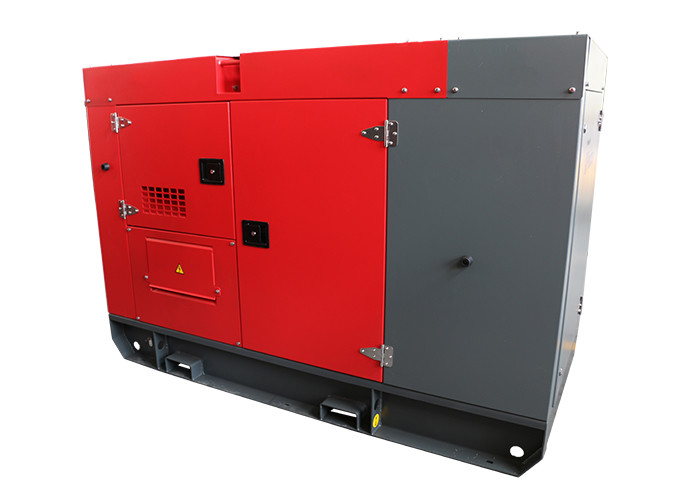

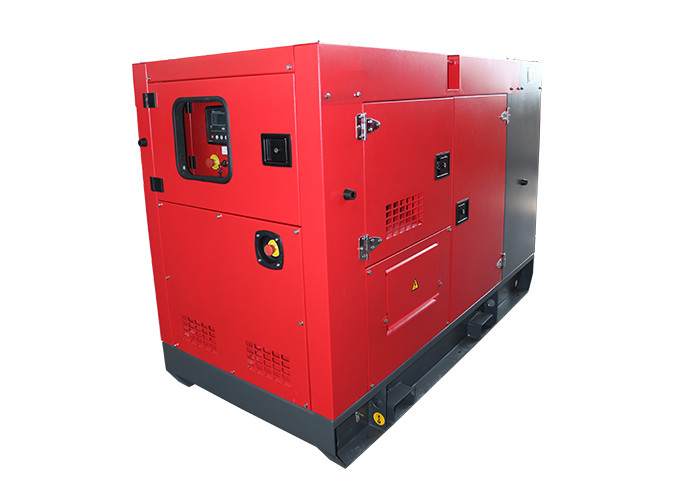

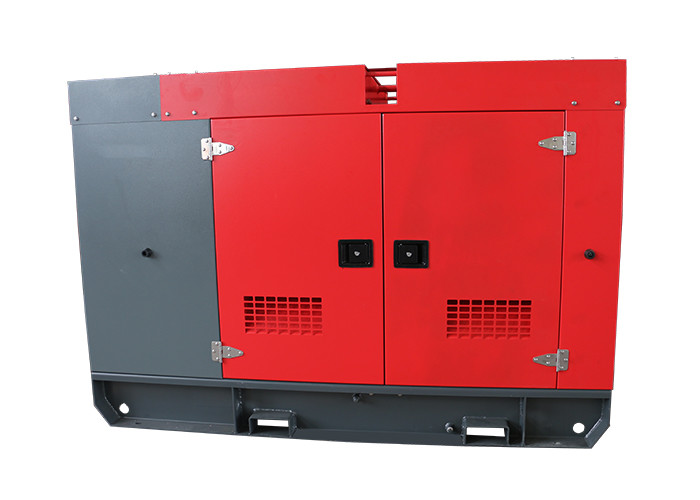

DENYO 25kva Silent generators photos:
