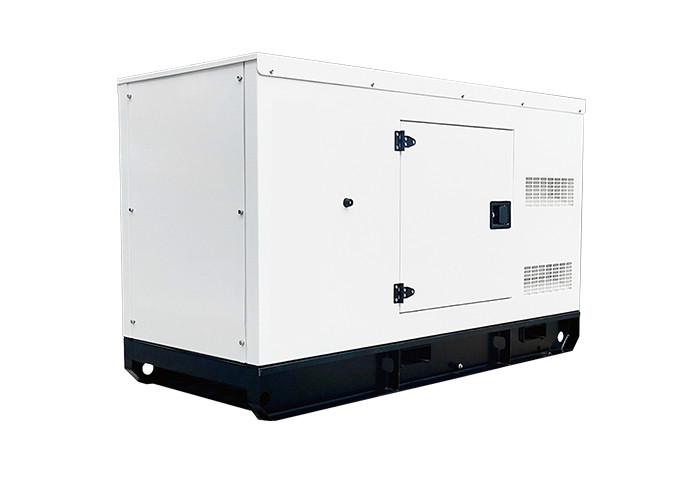

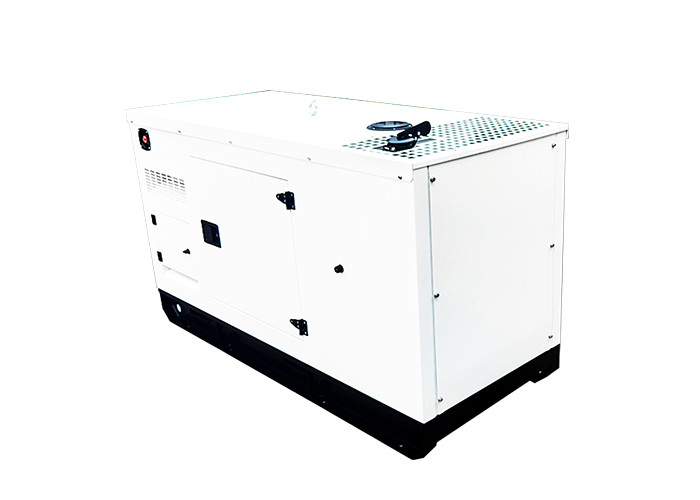

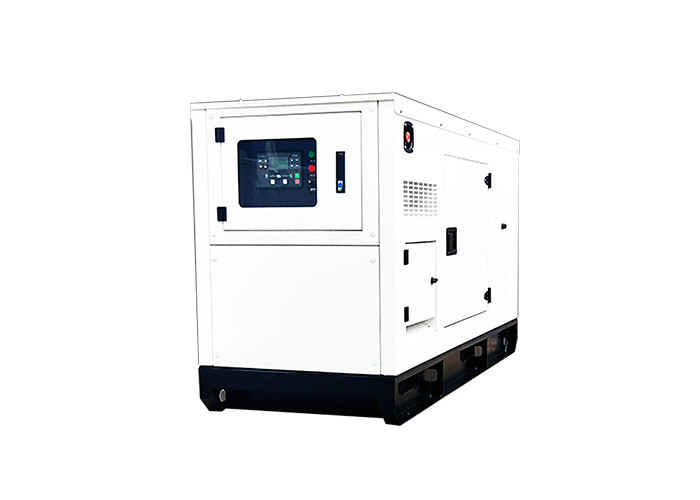

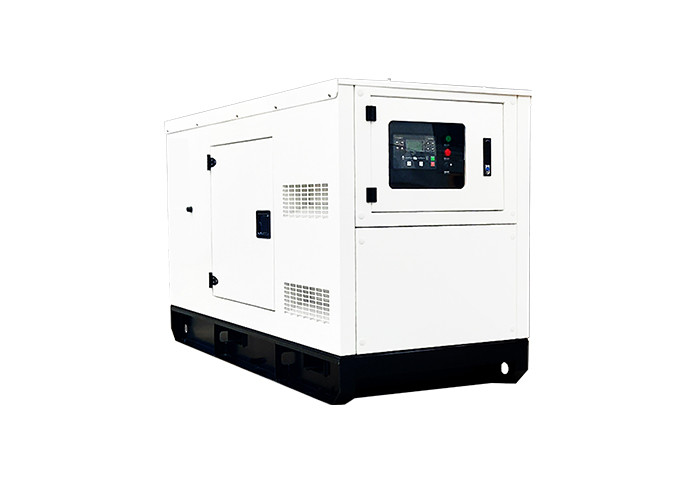

Yangdong Engine Silent 25kw 30kva Diesel Power Generator 3 Phase Generator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Power | 25KW | Frequency | 50/60HZ |
|---|---|---|---|
| Voltage | 220v - 690v Optional | Engine | Yangdong,KOFO,FAWDE,Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional |
| Alternator | Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional | Controller | Deepsea, Smartgen, Harsen For Optional |
| MCCB | ABB Or Delixi | Cooling System | Water Cooled |
| Genset Type | Open Type, Silent Type, Container Type, Trailer Type For Optional | ATS | Optional |
| High Light | diesel silent generator,industrial diesel generators |
||
Product Description
Yangdong engine silent 25kw 30kva diesel power generator price
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-YD33 |
| 1.2 | Prime at 50HZ, 40℃ ambient | 25KW 30KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 27KW 33KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 1500*700*1050, Silent: 2000*940*1200 |
| 1.7 | Weight | Open: 700kg, Silent: 1100kg |
| 1.8 | Fuel consumption 100% prime load | 7 |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | Yangdong |
| 2.2 | Engine Model | Y4100D |
| 2.3 | Governor/Class | Mechanical or Electronic |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 12V, electric |
| 2.8 | Air intake type | Turbocharged |
| 2.9 | Cooling mode | Water Cooling |
| 2.10 | Bore and stroke | 90×100 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 2.54 |
| 2.13 | Engine Prime Power at 1500rpm | 26KWm |
| 2.14 | Engine Standby Power at 1500rpm | 29KWm |
| 2.15 | Lubrication oil capacity | 8L |
| 2.16 | Oil consumption | 0.04 |
| 2.17 | Dry weight of base | 240Kg |
| 2.18 | Dry weight of Gen Pac | 260Kg |
| 2.19 | Overall dimension(G.P) | 1120×810×760(mm) |
| 2.2 | Overall dimension(base) | 750×600×735(mm) |
| 2.21 | 27℃ air consumption ( m³/ min) | 2.1 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR | ||
| 3.1 | Alternator Model | UP184G |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 39.7A |
| 3.12 | Efficiency | 0.858 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 150kg |
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional
Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
If you are interested, please contact with us at any time!
