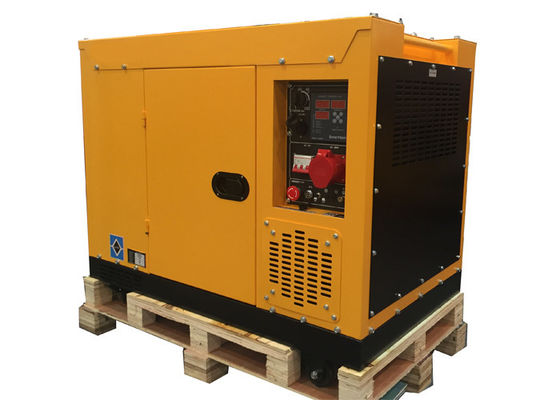

12kw portable electric generator ultra silent air cooled 2 cylinder diesel motor

12kw portable electric generator ultra silent air cooled 2 cylinder diesel motor
Features Gallery Product Description Request A Quote
Power(Prime/Standby): 12KW / 12KVA
Frequency: 50/60HZ
Current: 54A
Voltage: 220/230/240v
Engine: 2V92 , 2 Cylinder Diesel Motor , Air Cooled
Alternator: 100% Copper
Controller: Electric Start
Sound Level/db: 70dB
Warranty: 1 Year Or 1000 Hours
Phase: 3 Phase Or 1 Phase
Engine Speed: 3000rpm/3600rpm
High Light:

silent portable generator


small diesel generators

Basic Infomation
Place of Origin: WUXI CITY CHINA
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE
Model Number: PD12T
Payment & Shipping Terms
Packaging Details: Poly wooden case or carton box
Delivery Time: 20 days
Supply Ability: 1000 sets / Month
Product Description

12kw portable electric generators with 2V92 electric start with smartgen controller
Specification of 10kva Generator:

  Model NO. PD12T
Rated frequency(Hz) 50/60
Rated voltage(V) 220V 230V 240V
Rated current(A) 45A / 50A
Rated output power(kW) 10KW / 11KW
Max output power (kW) 11KW / 12KW
Rated rotation speed(rpm) 3000/3600
DC output 12V 8.3A
Power factor(cosφ) 1
Phase number 1 phase
Noise level[dB(A)@7m] 79
Overall dimension(L*W*H)[mm] 1150x770x920mm
Net weight(kg) 310
Engine Engine type 2V92
Structure type 2 cylinder, V-Twin,4-stroke,
air cooled, direct injection
Displacement[ml(cu. in)] 997
Engine speed(rpm) 3000/3600
Compression ratio 19:1
Rated output power[kW/rpm] 14.4/3000 , 15.3/3600
Lubrication system Pressure splashed
Lube oil brand Above CD SAE 10W-30,15W-40
Starting system 12 V Electric starter
Starting motor capacity 12V 0.8KW
Charging generator capacity 12V 3A
Battery capacity 12V 45AH
Fuel consumption 100% loading 3000rpm: 3.5 , 3600rpm: 4.0
Fuel type Diesel 0#(summer)or-10#(winter),-35#(cold)
Quantity for 20ft container 30 PCS


100% copper alternator
2 2 cylinder 4 stroke , diesel engine
3 Phase single or 3 phase
4 Dimension 1120x750x800mm  Net Weight 260KGS
5 Quantity for 20 foot container 26 sets

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use , industrial use, island use.
3. Telecom, Mobile tower, etc
4.As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. With 2 fan , have good air input and output design.
2. Power is stable.
3. 100% cooper
4.  Produce engines / canopy and assemble by ourselves.
5.  Small size , suitable small place.
6.  With 2V86, 2 cylinder air cooled diesel engine
