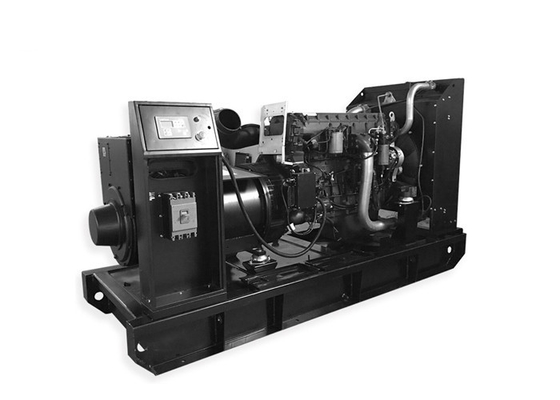

Industrial 250kva Italy FPT diesel generator 200kw open type genset

1 SET
MOQ
Negotiation
Price
Industrial 250kva Italy FPT diesel generator 200kw open type genset
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 200KW
Frequency: 50/60HZ
Voltage: 220v - 690v Optional
Engine: FPT
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
Controller: Deepsea, Smartgen, Harsen For Optional
MCCB: ABB Or Delixi
Cooling System: Water Cooled
Genset Type: Open Type, Silent Type, Container Type, Trailer Type For Optional
ATS: Optional
High Light:

electric generating set

,

rental power generators

Basic Infomation
Place of Origin: Jiangsu of China
Brand Name: GPRO
Certification: ISO,CE Certification
Model Number: GP275FPS
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Product Description

Industrial 250kva Italy FPT diesel generator 200kw open type genset



Technical specification
Genset Model GP275FPS
Prime Power 200KW/250KVA
Standby Power 220KW/275KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 360.8A
Genset Structure SILENT
Dimension 3800×1380×1980mm
Net Weight 3800KG
Noise level 80 dba @ 7 meters
Engine Model FPT FPT/CURSOR87TE3
Engine Features 6-cylinder,4 stroke,, turboafter cooler
Bore * Stroke 117mm × 135mm
Displacement 8.7L
12-hour Power(kw) 229KW/1500
Fuel Consumption L/H 58L/H
Compression Ratio 15.9:1
Governor type Common Rail
Alternator Model MECC ALTE/ECO38-1LN/4
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Smartgen 6120 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



Industrial 250kva Italy FPT diesel generator 200kw open type genset 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!

Industrial 250kva Italy FPT diesel generator 200kw open type genset 1
