Water Cooled 250KVA 200KW Cummins Engine Generator ELECTIC Governor

Place of Origin Jiangsu of China
Brand Name POWER FRIEND
Certification ISO,CE Certificates
Model Number PF-DC275S
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 300 Set / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Power 250KW Frequency 50/60HZ
Voltage 220v - 690v Optional Engine Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
Alternator Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller Deepsea, Smartgen, Harsen For Optional
MCCB ABB Or Delixi Cooling System Water Cooled
Genset Type Open Type, Silent Type, Container Type, Trailer Type For Optional ATS Optional
High Light

industrial diesel generators

,

diesel genset

Leave a Message
Product Description

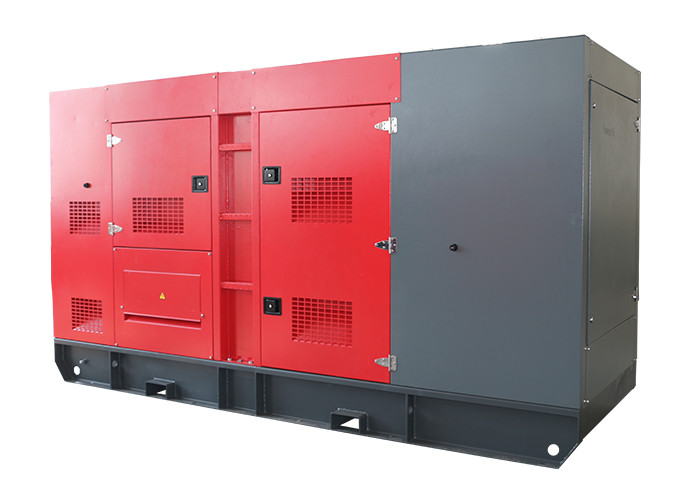

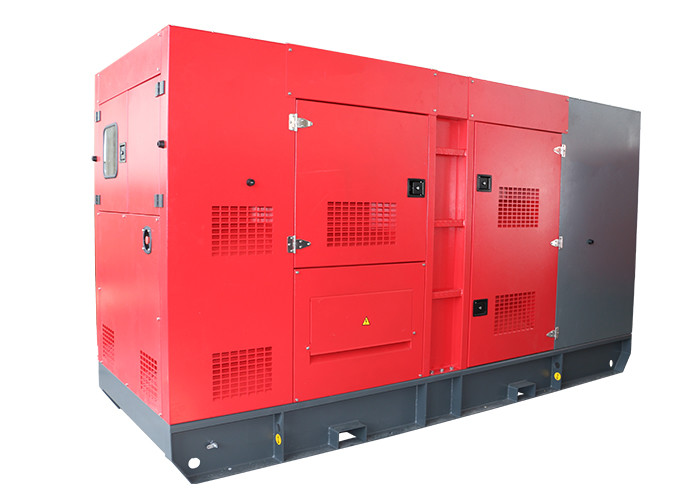

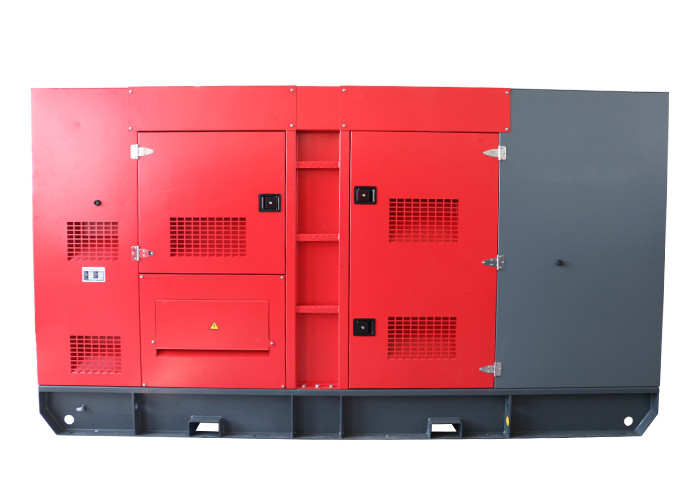

200KW 250KVA Water Cooled Cummins Diesel Generators Power Genset

Genset Model PF-DC275S
Prime Power 200KW/250KVA
Standby Power 220KW/275KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 360A
Genset Structure SILENT
Dimension 3600×1280×1860mm
Net Weight 2800KG
Noise level 78dB at 7 meters
Fuel Tank Capacity 380L
Engine Model 6LTAA8.9-G2
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 114mm × 135mm
Displacement 8.9L
12-hour Power(kw) 220KW/1500
Fuel Consumption L/H 53L/H
Compression Ratio 16.6:1
Governor type ELECTIC
Alternator Model STAMFORD /UCI274K
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Smartgen 6120 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



 Heavy duty world class brand  industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards


Water Cooled 250KVA 200KW Cummins Engine Generator ELECTIC Governor 0



ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



Water Cooled 250KVA 200KW Cummins Engine Generator ELECTIC Governor 1

 Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.
