7000W diesel GENERATOR SET SPECIFICATION:
| Model NO. | IF8500E(Open type) | IF8500T (Silent type) | |
| Generator set |
Rated frequency(Hz) | 50/60 | 50/60 |
| Rated voltage(V) | 220V | 220V | |
| Rated current(A) | 19.6 41.7/20.8 | 19.6 41.7/20.8 | |
| Rated output power(kW) | 7KVA/7.7KVA | 7KVA/7.7KVA | |
| Rated rotation speed(rpm) | 3000/3600 | 3000/3600 | |
| DC output | 12V 32A | 12V 32A | |
| Power factor(cosφ) | 1 | 1 | |
| Phase number | Single phase | Single phase | |
| Noise level[dB(A)@7m] | 75-77 | 75-77 | |
| Overall dimension(L*W*H)[mm] | 780x500x650mm | 950x560x750mm | |
| Net weight(kg) | 110 | 170 | |
| Engine | Engine type | 192F | 192F |
| Structure type | Single cylinder, in-lined,4-stroke, air cooled, direct injection |
Single cylinder, in-lined,4-stroke, air cooled, direct injection |
|
| Bore*stroke[mm(in)] | 92x75 | 92x75 | |
| Displacement[ml(cu. in)] | 499 | 499 | |
| Engine speed(rpm) | 3000/3600 | 3000/3600 | |
| Compression ratio | 19:1 | 19:1 | |
| Rated output power[kW/rpm] | 7.7/3000 , 8.5/3600 | 7.7/3000 , 8.5/3600 | |
| Lubrication system | Pressure splashed | Pressure splashed | |
| Lube oil brand |
Above CD SAE 10W-30,15W-40 |
Above CD SAE 10W-30,15W-40 |
|
| Starting system | 12 V Electric starter | 12 V Electric starter | |
| Starting motor capacity | 12V 0.8KW | 12V 0.8KW | |
| Charging generator capacity | 12V 3A | 12V 3A | |
| Battery capacity | 12V 36AH | 12V 36AH | |
| Fuel consumption rate[g/kW.h] | 3000rpm:315 , 3600rpm: 320 | 3000rpm: 315 , 3600rpm: 320 | |
| Fuel type |
Diesel 0#(summer) or-10#(winter),-35#(cold) |
Diesel 0#(summer) or-10#(winter),-35#(cold) |
|
| Fuel tank capacity(L) | 15 | 15 | |
| Continuous running time(H) | 8 | 8 |
1. Air cooled 192FAE diesel motor
2. Generator power rated power 7000w, Max power 7700w
3. Electric start
4. 100% copper
5. Super silent , noise 68dB at 7 meters
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for home, camping, party, etc
3. Island, Desert or any place without electricity
4. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Use 100% copper alternator
2. 24 hours/7 days after sale service
3. 14 days delivery time
4. Produce engines / canopy and assemble by ourselves.

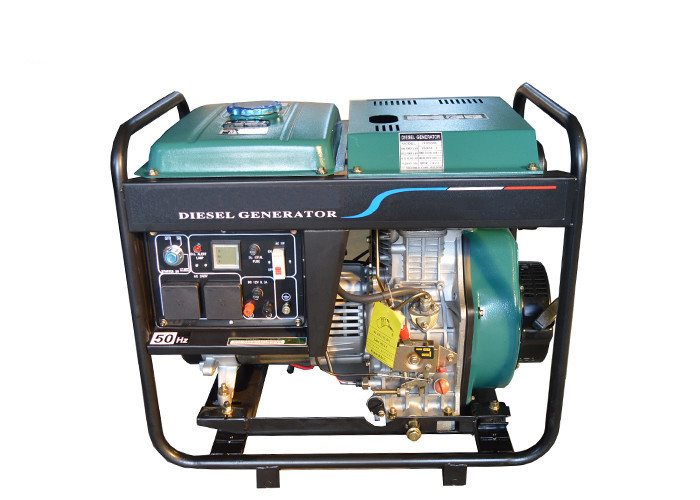

Workshop super silent 7kw diesel portable generators photos:
