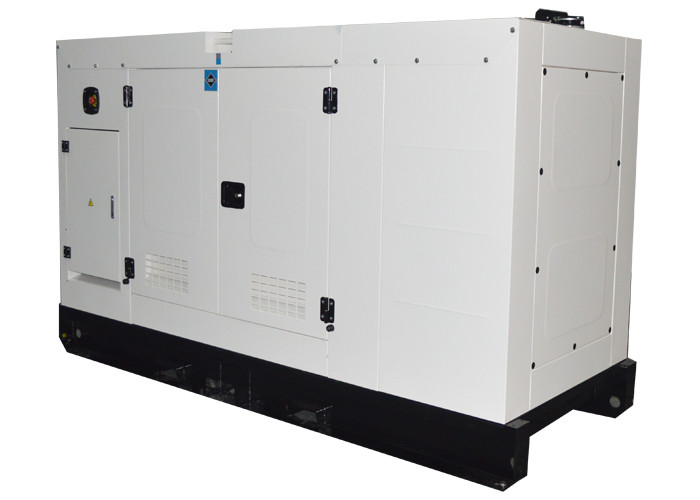

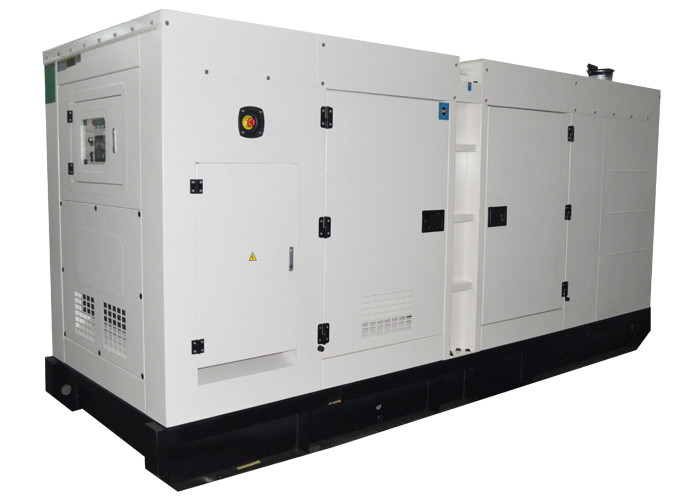

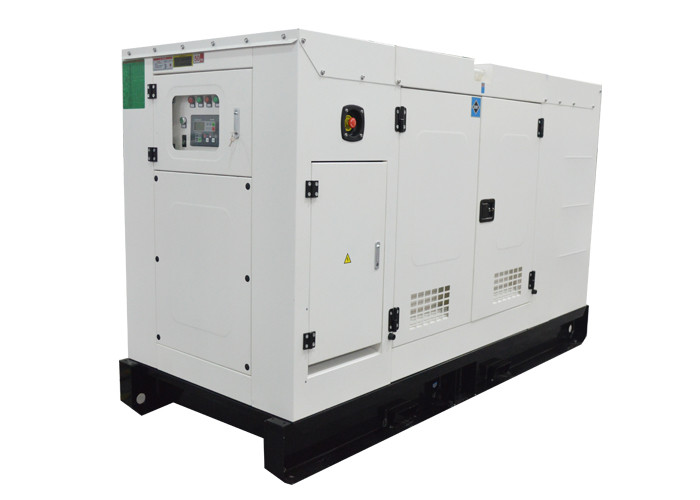

Soundproof Diesel Power Generator 80KW 100KVA FPT IVECO Diesel Power Generator
POWER DIESEL GENERATOR SPECIFICATION:
| Genset Model | GP110FPS |
| Prime Power | 80KW/100KVA |
| Standby Power | 88KW/110KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 144.3A |
| Genset Structure | SILENT |
| Dimension | 2970×1120×1580mm |
| Net Weight | 2600KG |
| Noise level | 72 dba @ 7 meters |
| Engine Model | FPT IVECO/NEF45TM2A |
| Engine Features | 4-cylinder,4 stroke,natural aspirated |
| Bore * Stroke | 104mm × 132mm |
| Displacement | 4.5L |
| 12-hour Power(kw) | 87.5KW/1500 |
| Fuel Consumption L/H | 22L/H |
| Compression Ratio | 17.5:1 |
| Governor type | Mechnical |
| Alternator Model | MECC ALTE/ECP34-2S/4 |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | |
| Smartgen 6120 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Description:
1. Original FPT engine
2. Alternator: Brushless
3. Controller: UK Deepsea / Smartgen /Harseen
4. Options: remote controller, synchronizing.
5. With ATS / Battery Charger
6. Type: Soundproof type, weather proof, Trailer type
7. Color: Any color
8. Support OEM
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Low fuel consumption
2. Good quality engine and alternator
3. Fast delivery. Big quantity of Engines in stock.
4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
5. Use high standard of sponge to make soundproof.
6. The canopy design is user friendly, and easy for maintenance.
7. Pre and after sales service is provided.
8. 365 days, 24 hours after sale service
9. Economy / Competitive price
