Ultra Silent Canopy Deepsea Controller Lovol Generators 30kva 1003G Engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 24KW / 30KVA | Standby Power | 26KW / 33 KVA |
|---|---|---|---|
| Engine | FONTON / LOVOL | Alternator | Orginal Stamford / MECC ALTE |
| Controler Panel | DeepSea 3110/6020/7220/7320 | Air Breaker | MCCB DLIXI 3 Pole Or 4 Pole |
| Warranty | 1 Year Or 1000 Hours | Certificate | ISO/CE/ PVOC / COC |
| Noise | Ultra Silent 68dB At 7 Meters | Fuel Tank | Base Fuel Tank Keep 8 Hours 100% Loading |
| High Light | diesel powered generator,super silent generator |
||
Product Description
30KVA LOVOL ultra silent generator Specification:
30kva Lovol generator 1003G engine ultra silent canopy deepsea controller
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-L30S |
| 1.2 | Prime at 50HZ, 40℃ ambient | 24KW 30KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 26KW 33KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | 3100×1100×1550mm |
| 1.7 | Weight | 2290kg |
| 1.8 | Fuel consumption 100% prime load | 7.2L/H |
| 1.9 | Total heat radiated to ambient | / |
| 1.10 | Noise Level at 7m(Normal/ Super) | 68dB |
| 1.11 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set |
| 1.12 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FOTON LOVOL |
| 2.2 | Engine Model | 1003G |
| 2.3 | Governor/Class | Mechanical/Electronical |
| 2.4 | Cylinder NO. | 3 |
| 2.5 | Engine build | Vertical |
| 2.6 | Fuel spray pattern | Direct injection |
| 2.7 | Aspiration | Natural |
| 2.8 | Cooling mode | Radiator cooled (enclose water) |
| 2.9 | Bore and stroke | 100×127 mm |
| 2.10 | Compression ratio | 16.5:1 |
| 2.11 | Displacement | 2.99L |
| 2.12 | Engine Prime Power at 1500rpm | 28KWm |
| 2.13 | Engine Standby Power at 1500rpm | 30.8KWm |
| 2.14 | start-up method | 12/24V, electric |
| 2.15 | Battery capacity | 120A/hr |
| 2.16 | Starting/Min temperature | -15℃ |
| 2.17 | Lubircating oil consumption | 0.036L/h |
| 2.18 | Lubrication oil capacity | 9L |
| 2.19 | Coolant capacity – radiator and engine (40℃) | 17L |
| 2.20 | Exhaust temp - full load prime | 600℃ |
| 2.21 | Exhaust gas flow – full load prime | 336m3/h |
| 2.22 | Exhaust gas back pressure max | 76mm/Hg |
| 2.23 | Air flow - radiator (40℃ ambient) | 0.91m3/s |
| 2.24 | Pusher fan head ( duct allowance ) 40 ℃ | 13mmH2O |
| 2.25 | Air intake – engine - full load prime | 156m3/h |
| 2.26 | Standard Air intake temp | 25℃ |
| 2.27 | Fuel type | #0 Diesel (Natural temperature) |
| 2.28 | Filter system | Adopt whole changeable lubricating oil,fuel filter and air filter |
| 2.29 | Exhaust system | Adopt industrial high efficiency silencer and flexible bellows |
| 2.30 | Engine derating - altitude | Above the sea-level 1525m high, a fall of 4% from a rise of 300m. |
| 2.31 | Engine derating- temperature | Above the ambient temperature 40℃ high, a fall of 2% from a rise of 11%. |
| 3. SPECIFICATIONS OF ALTENATOR | ||
| 3.1 | Alternator Model | STAMFORD / PI144E |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 45.1A |
| 3.12 | Efficiency | 86.20% |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 15℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 156kg |
DESCRIPTION:
1. Rated Power Range: 24kw / 30kva
2. Engine:ORIGINAL LOVOL
3. Alternator: Stamford / Mecc Alte
4. Controller: Deepsea or Smartgen
5. Type: Super silent / Ultra silent type
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Engine low fuel consumption.
2. Super silent Japan Denyo type design canopy.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
10. With battery charger
11. Use 40mm thickness fire retardant material foam.

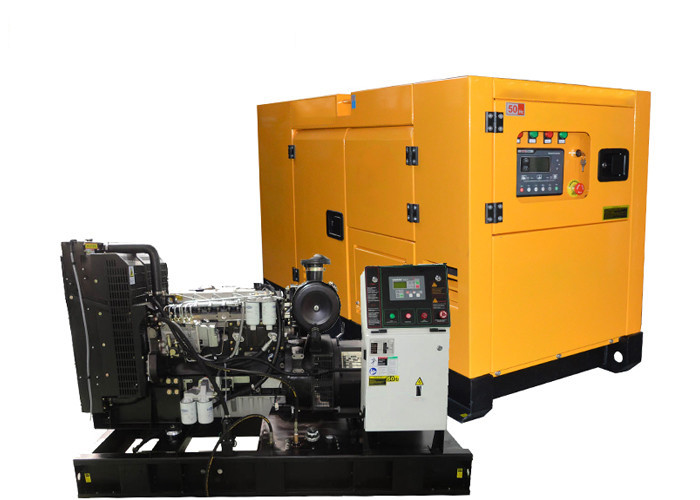

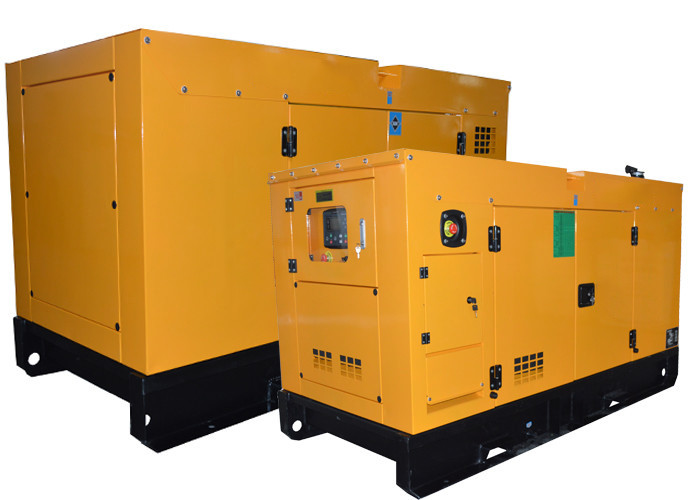

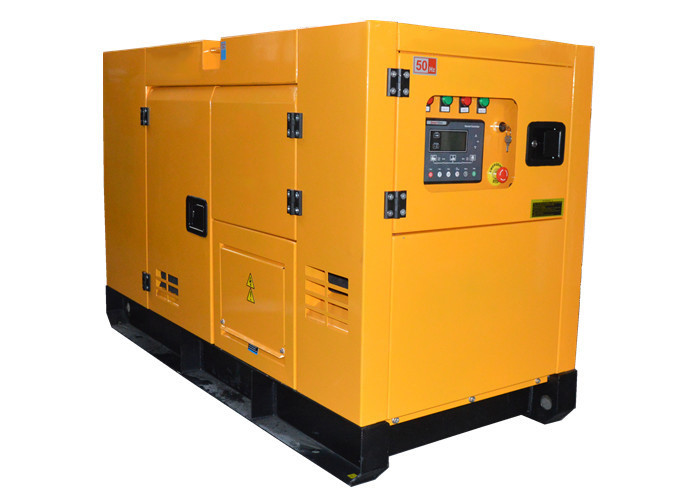

Generators photos:
