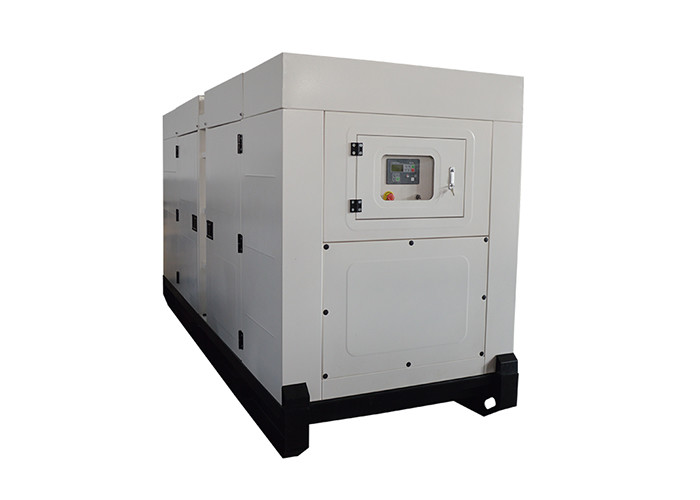

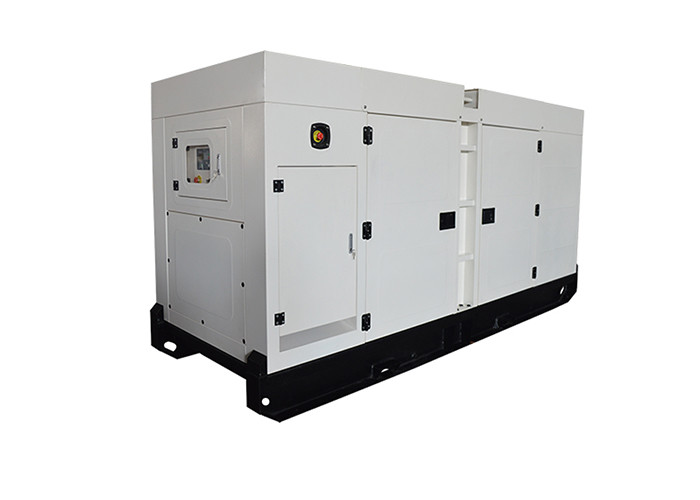

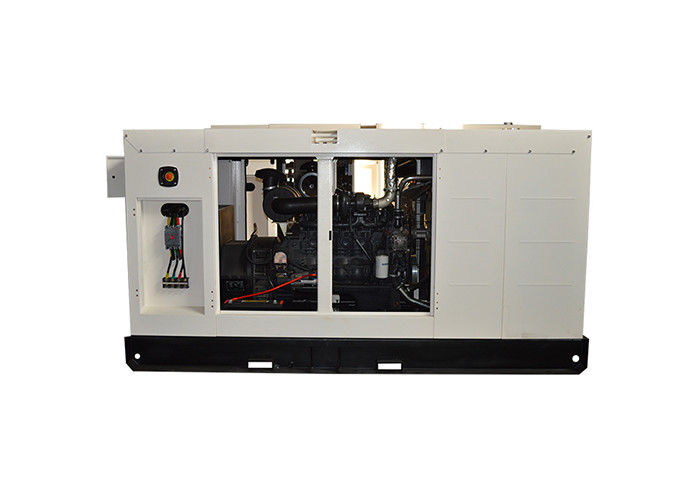

C9 Engine Three Phase Genset Closed 275KVA Diesel Generator
| Technical specification |
| Genset Model |
GP275FPS |
| Prime Power |
200KW/250KVA |
| Standby Power |
220KW/275KVA |
| Phase Number |
3 |
| Power Factor |
0.8 |
| Rated Voltage |
230/400V |
| Frequency |
50 HZ |
| Rated Current |
360.8A |
| Genset Structure |
SILENT |
| Dimension |
3800×1380×1980mm |
| Net Weight |
3800KG |
| Noise level |
80 dba @ 7 meters |
| Engine Model |
FPT FPT/CURSOR87TE3 |
| Engine Features |
6-cylinder,4 stroke,, turboafter cooler |
| Bore * Stroke |
117mm × 135mm |
| Displacement |
8.7L |
| 12-hour Power(kw) |
229KW/1500 |
| Fuel Consumption L/H |
58L/H |
| Compression Ratio |
15.9:1 |
| Governor type |
Common Rail |
| Alternator Model |
MECC ALTE/ECO38-1LN/4 |
| Excitation Mode |
brushless self-excited |
| Insulation Class |
H |
| Protection Class |
IP23 |
| Construction Type |
SAE Disc-coupling |
| Controler panel |
|
| Smartgen 6120 |
intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Description:
1. Power Range:250KVA/200KW
2. Engine: Original Italy Fiat FPT engine
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: Soundproof type, Trailer type, Container type, etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
7. Emergency power station
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
FPT deisel engines, We have a large stock of FPT motor :
