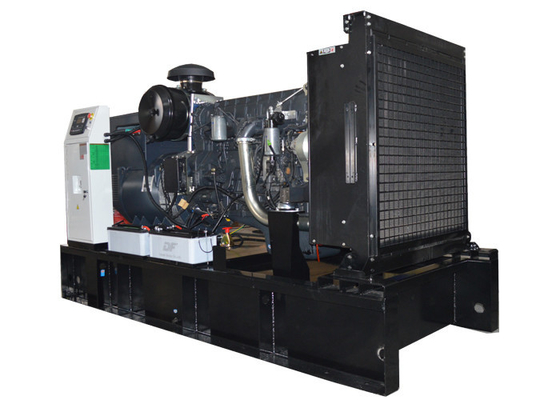

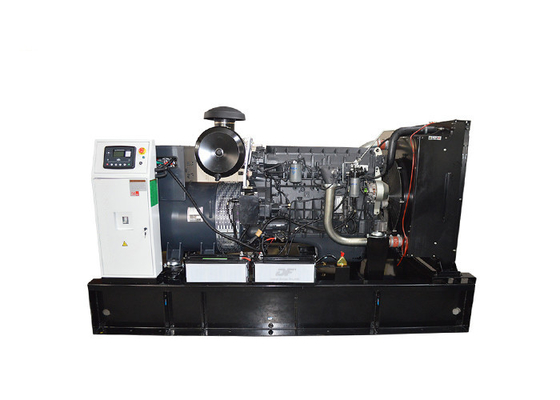

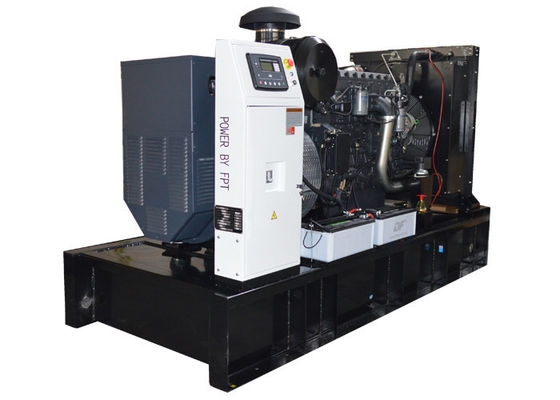

300KVA FPT Diesel Generator Open Type With Mecc Alternator ComAp Controller
| 1. SPECIFICATIONS OF SILENT TYPE GENERATOR |
| 1.1 |
Set Model |
GP330FP |
| 1.2 |
Prime at 50HZ, 40℃ ambient |
240KW 300KVA |
| 1.3 |
Standby at 50HZ, 40℃ ambient |
264KW 330KVA |
| 1.4 |
Rated Gen-set output |
230/400V 50Hz |
| 1.5 |
Rated Relative humidity |
≤ 60 % |
| 1.6 |
Dimension (L×W×H) |
2910×1000×1850mm |
| 1.7 |
Weight |
3065kg |
| 1.8 |
Fuel consumption 100% prime load |
70L/h |
| 1.9 |
Total heat radiated to ambient |
66KW |
| 1.10 |
Structure of Gen-set |
The Gen-set adopt integrative structure,
engine is fix on high
strength steel basic frame,
anti vibration instrument between
the engine and basic frame,
cooling fan have protecting cap,
control cabinet and circuit
breaker installed on Gen-set.
|
| 1.11 |
Control system (Optional) |
Basic control panel or
Advanced control panel
with automatically start-up
function and other function.
|
| 2. SPECIFICATIONS OF ENGINE |
| 2.1 |
Engine Brand |
FPT |
| 2.2 |
Engine Model |
SFH C9 |
| 2.3 |
Governor/Class |
Electrical |
| 2.4 |
Cylinder NO. |
6 |
| 2.5 |
Engine build |
Line |
| 2.6 |
Fuel spray pattern |
PT direct injection |
| 2.7 |
start-up method |
24V, electric |
| 2.8 |
Aspiration |
Turbocharged/Aftercooled |
| 2.9 |
Cooling mode |
Radiator cooled (enclose water) |
| 2.10 |
Bore and stroke |
125×147 mm |
| 2.11 |
Compression ratio |
15.0:1 |
| 2.12 |
Displacement |
10.8L |
| 2.13 |
Engine Prime Power at 1500rpm |
282KWm |
| 2.14 |
Engine Standby Power at 1500rpm |
310KWm |
| 2.15 |
Battery capacity |
127A/hr |
| 2.16 |
Starting/Min temperature |
7℃ |
| 2.17 |
Lubrication oil capacity |
39L |
| 2.18 |
Coolant capacity - radiator and engine (40℃) |
49L |
| 2.19 |
Exhaust temp - full load prime |
485℃ |
| 2.20 |
Exhaust gas flow - full load prime |
3550m3/h |
| 2.21 |
Exhaust gas back pressure max |
76mmHg |
| 2.22 |
Air flow - radiator (40℃ ambient) |
7.0 m 3/s |
| 2.23 |
Pusher fan head (duct allowance) 40℃ |
13mmH 2O |
| 2.24 |
Air intake - engine - full load prime |
1350m3/h |
| 2.25 |
Standard Air intake temp |
25℃ |
| 2.26 |
Fuel type |
#0 Diesel (Natural temperature) |
| 2.27 |
Filter system |
Adopt whole changeable
lubricating oil, fuel
filter and air filter
|
| 2.28 |
Exhaust system |
Adopt industrial high
efficiency muffler
and ripple pipe
|
| 3. SPECIFICATIONS OF ALTENATOR |
| 3.1 |
Alternator Model |
MECC ALTE |
| 3.2 |
Alternator Type |
A.C. Synchronous |
| 3.3 |
Rated Voltage |
230/400V |
| 3.4 |
Rated Frequency |
50HZ |
| 3.5 |
Rated speed |
1500 RPM |
| 3.6 |
Voltage regulation mode |
Auto |
| 3.7 |
Alternator voltage regulation |
±0.5％ |
| 3.8 |
Exciting mode |
Brushless self exciting |
| 3.9 |
Power factor |
0.8 (lagging) |
| 3.10 |
Phase & wires |
3 phase 12 wires |
| 3.11 |
Rated currency |
469.1A |
| 3.12 |
Efficiency |
0.937 |
| 3.13 |
Insulation class |
H |
| 3.14 |
Protection class |
IP21 |
| 3.15 |
Single load step to NFPA110 |
100% |
| 3.16 |
Standards |
IEC34-1 |
| 3.17 |
Max. Ambient Temperature |
40℃ |
| 3.18 |
Min. Ambient Temperature |
- 20℃ |
| 3.19 |
Max. altitude |
1000m |
| 3.20 |
Weight |
1055kg |
Description:
1. Original Italy FPT diesel engine
2. Alternator: original MECC ALTE
3. Controller:ComAp MRS16
4. Options: remote controller, synchronizing.
5. ATS is optional
6. Type: Soundproof type, weather proof, Trailer type
7. Color: Any color
8. Support OEM
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Low fuel consumption
2. Good quality engine and alternator
3. Fast delivery. Big quantity of Engines in stock.
4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
5. Use high standard of sponge to make soundproof.
6. The canopy design is user friendly, and easy for maintenance.
7. Pre and after sales service is provided.
8. 365 days, 24 hours after sale service
