7KVA Electric Start Small Portable Diesel Generator With Wheels And Handles 192FAE Engine

1 SET
MOQ
Negotiation
Price
7KVA Electric Start Small Portable Diesel Generator With Wheels And Handles 192FAE Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 5.5KVA / 6KVA
Frequency: 50/60HZ
Current: 20A
Voltage: 220/230/240v
Engine: 186FAE 4 Stroke
Alternator: 100% Copper
Controller: Electric Start
Sound Level/db: 67dB At 7 Meters
Warranty: 1 Year Or 1000 Hours
Speed: 3000rpm / 3600rpm
Certificate: ISO9001/ ISO14001/ CE
Highlight:

silent portable generator

,

small diesel generators
Basic Infomation
Place of Origin: WUXI CITY CHINA
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE
Model Number: PF7000ES
Payment & Shipping Terms
Packaging Details: Carton box
Delivery Time: 14 days
Supply Ability: 1000 sets / Month
Product Description







7KVA Electric Start diesel generator with wheels and handles single phase or 3 phase 192FAE engine



GENERATOR SPECIFICATION:

7KVA Diesel generator specification
Genset Model No. PD8500E (Open type) PD8500T (Silent type)
Rated frequency (Hz) 50/60 50/60
Rated voltage (v) 230 120/240 230 120/240
Rated output power(Kva) 6.5 7.0 6.5 7.0
Rated rotation speed(rpm) 3000/3600 3000/3600
DC Output 12v 8.3A 12v 8.3A
Power factor 1 1
Phase number 1 phase 1 phase
Noise level dB@7m 75 75
Overall dimension (L*W*H)MM 780x500x650 950x560x750
Net weight 107 165

Engine Engine type 192FAE 192FAE
Structure type Single cylinder , in lined 4 stroke, air cooled direct injection Single cylinder , in lined 4 stroke, air cooled direct injection
Bore * stroke mm 92x75 92x75
Displacement ml 499 499
Compression ratio 20:1 20:1
Rated output(kw/rpm) 7.5/3000 8.2/3600 7.5/3000 8.2/3600
Lubrication system pressure splashed pressure splashed
Lue oil brand Above CD SAE 10W 30 15W 40 Above CD SAE 10W 30 15W 40
Staring system 12V Electric starter 12V Electric starter
Starting motor capacity 12V 0.8KW 12V 0.8KW
Charging generator capacity 12V 3A 12V 3A
Battery capacity 12V 36AH 12V 36AH
Fuel consumption rate(g/kw.h) 3000rpm 310,3600rpm 320 3000rpm 310,3600rpm 320
Fuel type Diesel 0# or 10# 35# Diesel 0# or 10# 35#
Fuel tank capacity (L) 15 15
Continuous Running time(H) 8 8
　 Qty for 20ft container(pcs) 160 72



Applications:



1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway

2. Household: personal use for house, camping, party, etc

3. Island, Desert or any place without electricity

4. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow

5. Emergency power generation.

6. Where couldnt stop power need emergency.





Competitive Advantage:



1. Use 100% copper alternator

2. 24 hours/7 days after sale service

3. 14 days delivery time

4. Produce engines / canopy and assemble by ourselves.

5. New design , competitive price

6. Super silent , eacy for maintance

7.  Fashion canopy design



Detailed photos:

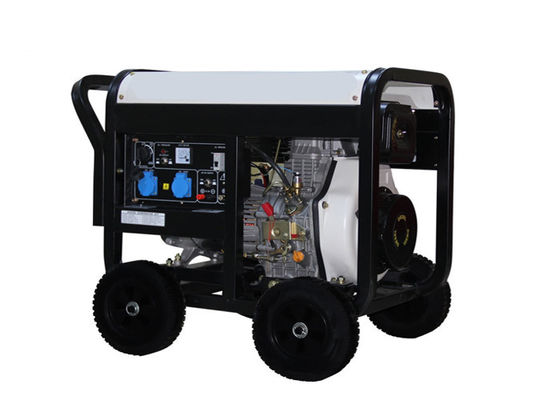

7KVA Electric Start Small Portable Diesel Generator With Wheels And Handles 192FAE Engine 0
