Silent Type 6 Cylinder FAWDE Compact Diesel Generator , Electric Start Generator 150kva 120KW

1 sets
MOQ
negotiation
Price
Silent Type 6 Cylinder FAWDE Compact Diesel Generator , Electric Start Generator 150kva 120KW
Features Gallery Product Description Request A Quote
Features
Specifications
Cooling System: Water Cooled
Fuel Tank: 8 Hours Running
Speed Govern: Electronic
Speed: 1500rpm
Conditions Of Use: Land Use
Highlight:

industrial diesel generators

,

diesel genset

Basic Infomation
Place of Origin: China, Wuxi
Brand Name: GPRO
Certification: CE, ISO
Model Number: GP165FWS
Payment & Shipping Terms
Packaging Details: ply wooden case, plastic
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 400 sets
Product Description

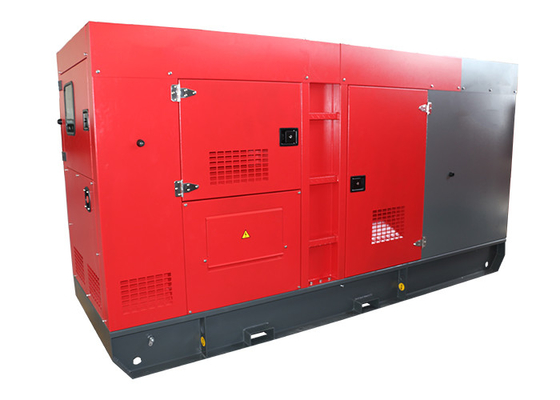

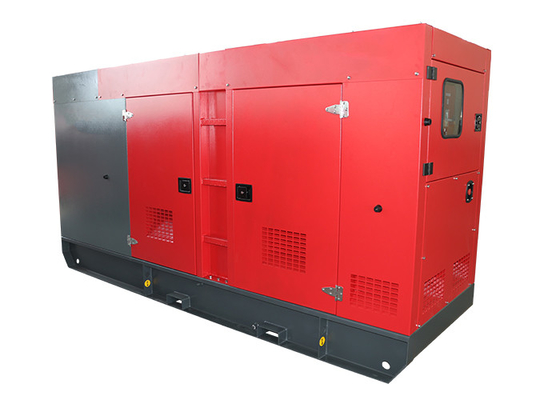

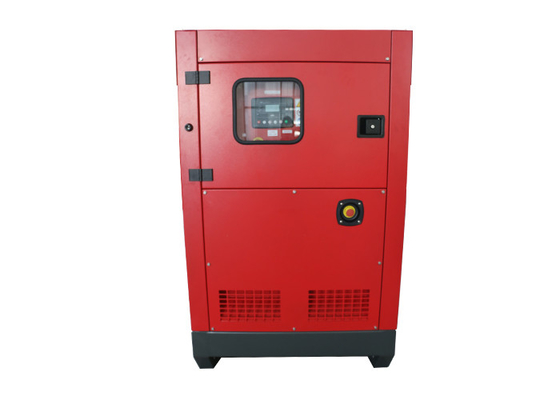

Silent Type 6 Cylinder FAWDE Compact Diesel Generator , Electric Start Generator 150kva 120KW



Generator soundproof/Silent and canopy

1) Excellent ventilation

2) Black finish stainless steel locks and hinges

3) Zinc plated or stainless steel fasteners

4) Body made from steel components treated with polyester powder coating

5) Two large doors on either side

6) Radiator fill access plate

7) Fully guarded cooling fan and battery charging alternator

8) Fuel fill and battery access via lockable access doors

9) Emergency stop button on canopy exterior

10) Lube oil drain and radiator drain to exterior

11) Control panel viewing window

12) Lifting points on base frame



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Genset Spes:

1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP165FWS
1.2 Prime at 50HZ, 40℃ ambient 120KW 150KVA
1.3 Standby at 50HZ, 40℃ ambient 132KW 165KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) Open: 2600*1000*1600,
Silent: 3400*1400*1900
1.7 Weight Open: 2000kg, Silent: 2700kg
1.8 Fuel consumption 100% prime load 28L/hr
1.9 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.10 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand FAWDE
2.2 Engine Model CA6DF2-19D
2.3 Governor/Class Electronic
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 24V, electric
2.8 Air intake type Turbocharged & Intercooling
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 110×125 mm
2.11 Compression ratio 17:01
2.12 Displacement 7.13
2.13 Engine Prime Power at 1500rpm 140KWm
2.14 Engine Standby Power at 1500rpm 154KWm
2.15 Lubrication oil capacity 28L/hr
2.16 Oil consumption 0.06
2.17 Dry weight of base 680Kg
2.18 Dry weight of Gen Pac 880Kg
2.19 Overall dimension(G.P) 1655×805×1310(mm)
2.20 Overall dimension(base) 1320x680x1100(mm)
2.21 27℃ air consumption ( m³/ min) 12
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1 Alternator Model Stamford/UCI274F
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 230.9A
3.12 Efficiency 0.923
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 500kg
